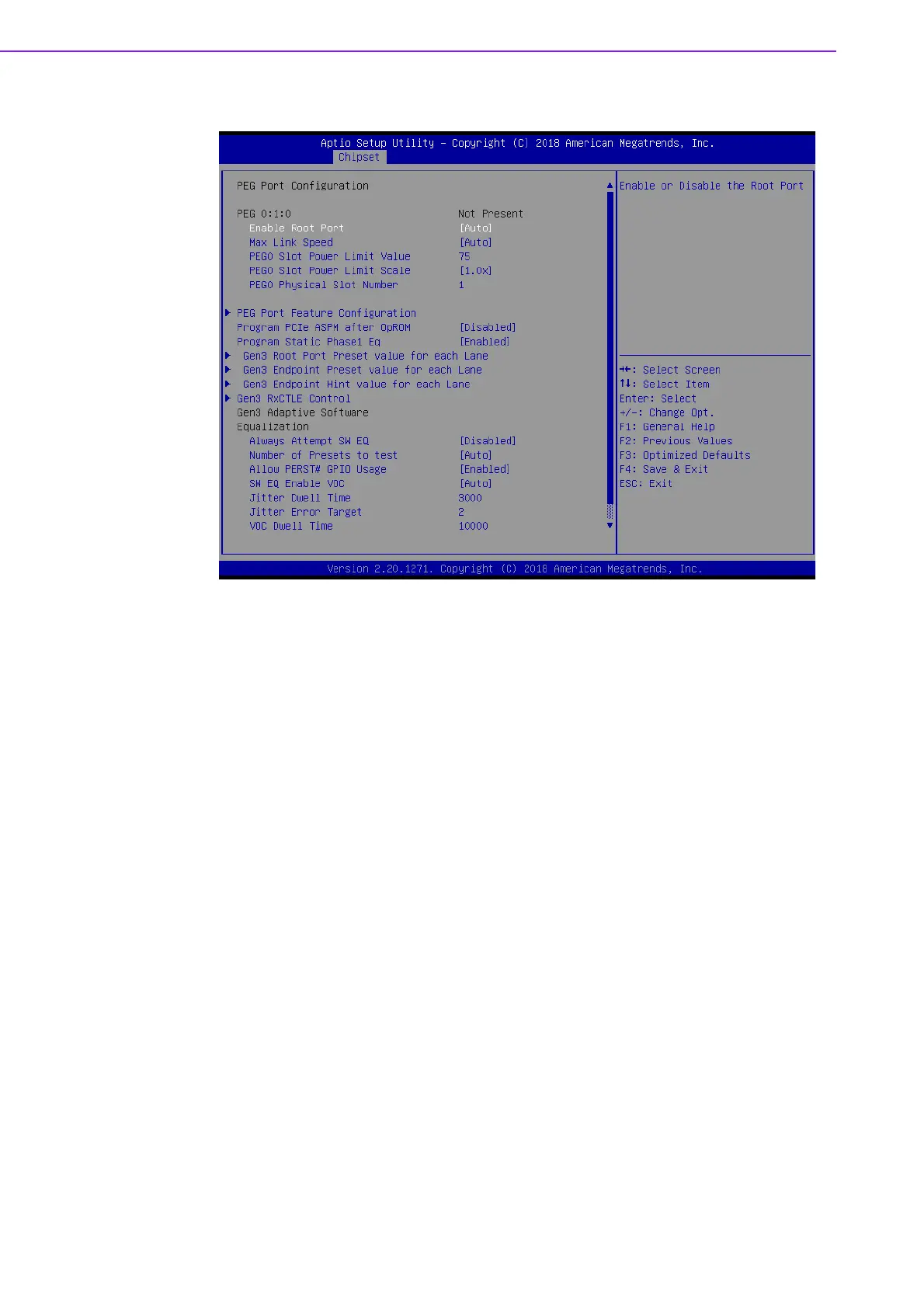

3.3.1.3 PEG Port Configuration
 Enable Root Port [ Auto ]
 Max Link Speed [Auto]
 Program PCIe ASPM after OpROM [ Disabled ]
Enabled: PCIe ASPM will be programmed after OpROM.
Disabled: PCIe ASPM will be programmed before OpROM.
 Program Static Phase1 Eq [Enabled]
 PEG Gen3 Root Port Preset Value for each Lane
Root Port Preset Value Per lane for Gen3 Equalization.
 PEG Gen3 Endpoint Preset Value each Lane
Endpoint Preset Value Per lane for Gen3 Equalization.
 PEG Gen3 Endpoint Hint Value each Lane
Endpoint Hint Value Per lane for Gen3 Equalization.
