PCA-6184, ed. 1 User’s Manual 92
Appendix B Pin Assignments

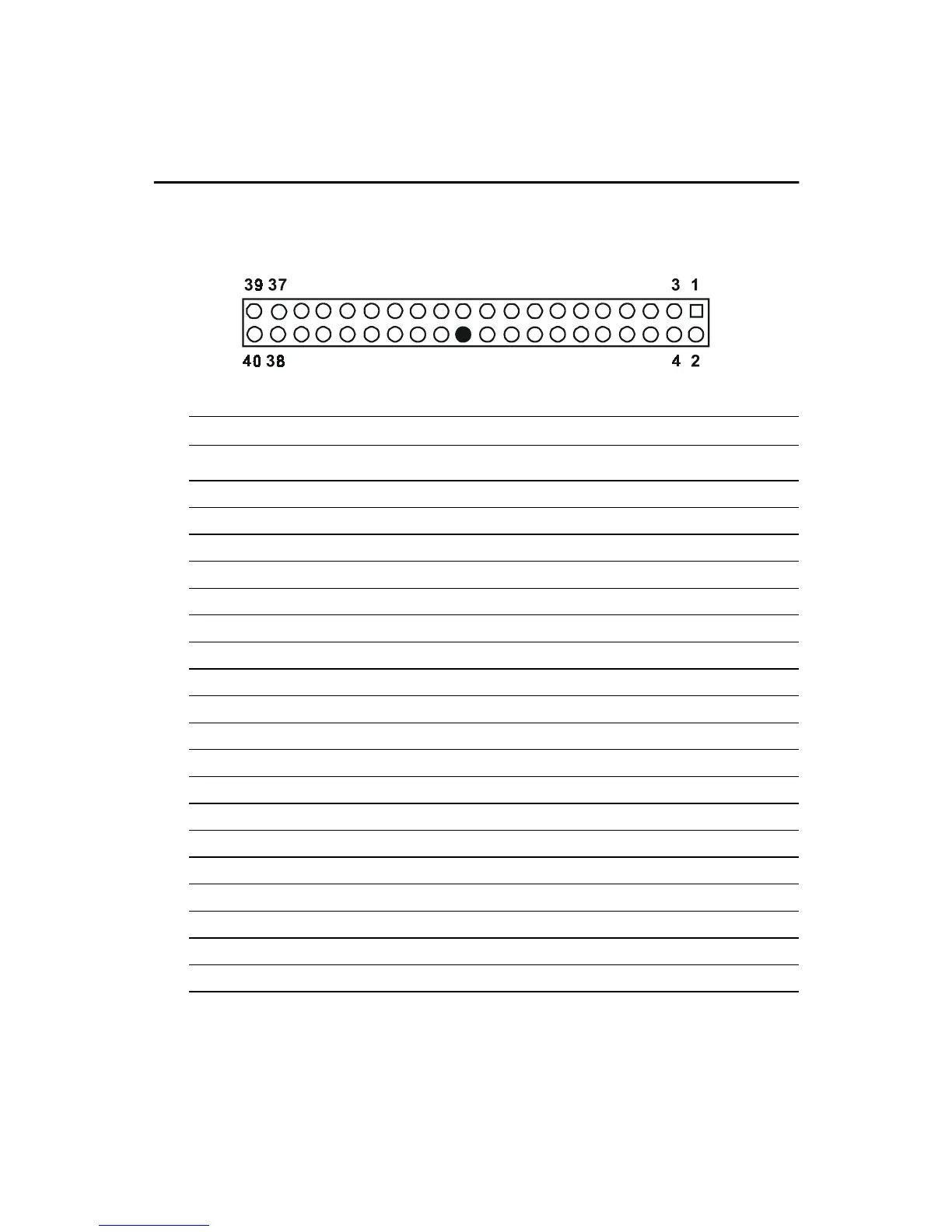

B.1 IDE Hard Drive Connector(CN1, CN2)
* low active
Table B.1: IDE hard drive connector (CN1, CN2)
Pin Signal Pin Signal
1 IDE RESET 2 GND
3DATA 7 4DATA 8
5DATA 6 6DATA 9
7DATA 5 8DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 SIGNAL GND 20 GND
21 DISK DMA Request 22 GND
23 IO Write 24 GND
25 IO READ 26 GND
27 IO CHANNEL READY 28 GND
29 HDACKO* 30 GND
31 IRQ14 32 N/C
33 ADDR 1 34 N/C
35 ADDR 0 36 ADDR 2
37 HARD DISK SELECT 0* 38 HARD DISK SELECT 1*
39 IDE ACTIVE 40 GND
