PCA-6184, ed. 1 User’s Manual 98

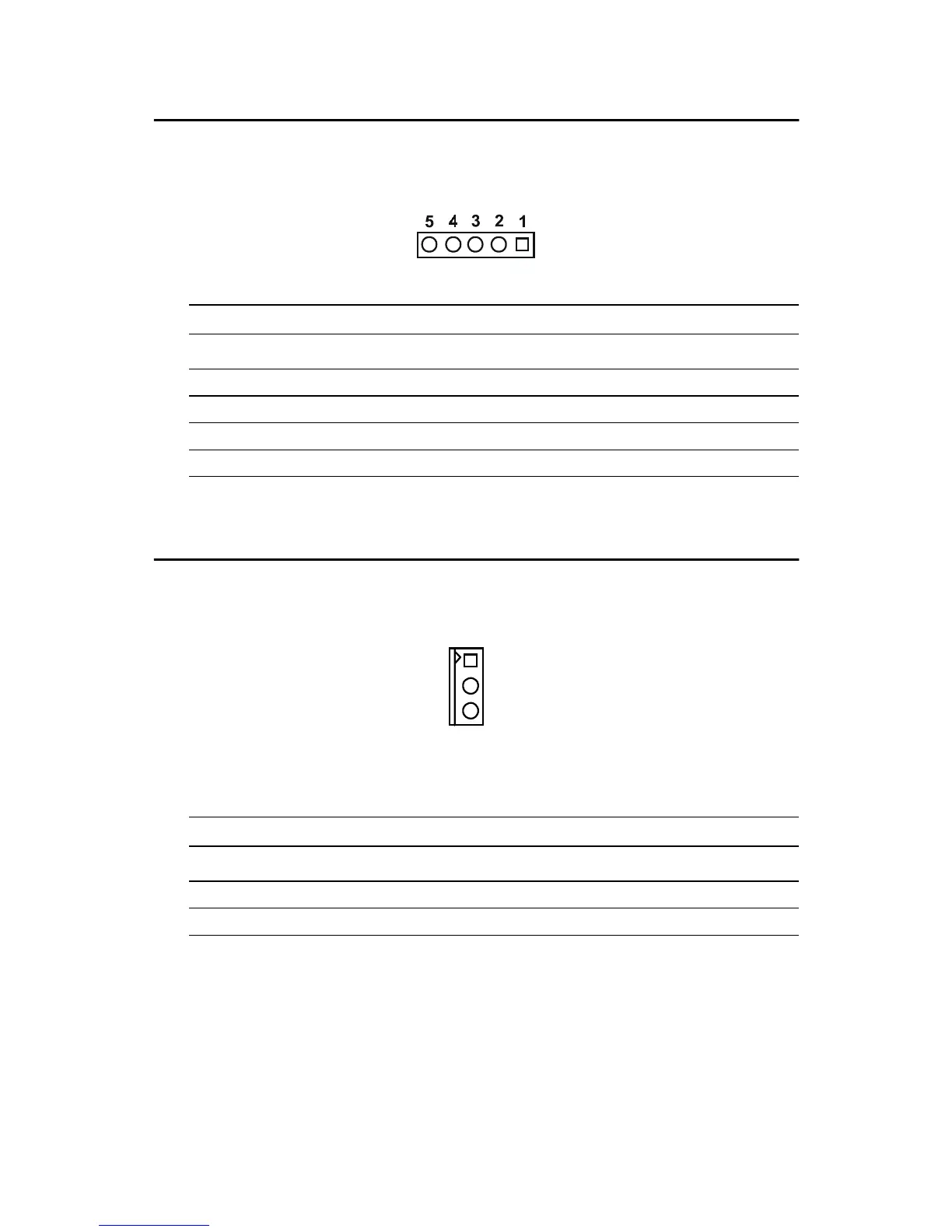

B.10 IR Connector (CN13)

B.11 CPU Fan Power Connector (CN14)

Table B.10: IR Connector (CN 13)

Pin Signal

1+5 V

2N/C

3 IR_RX

4GND

5IR_TX

Table B.11: CPU Fan Power Connector (CN 14)

Pin Signal

1GND

2+12 V

3 Detect
