Advantech PCA-684 User Manual

95 Appendix B

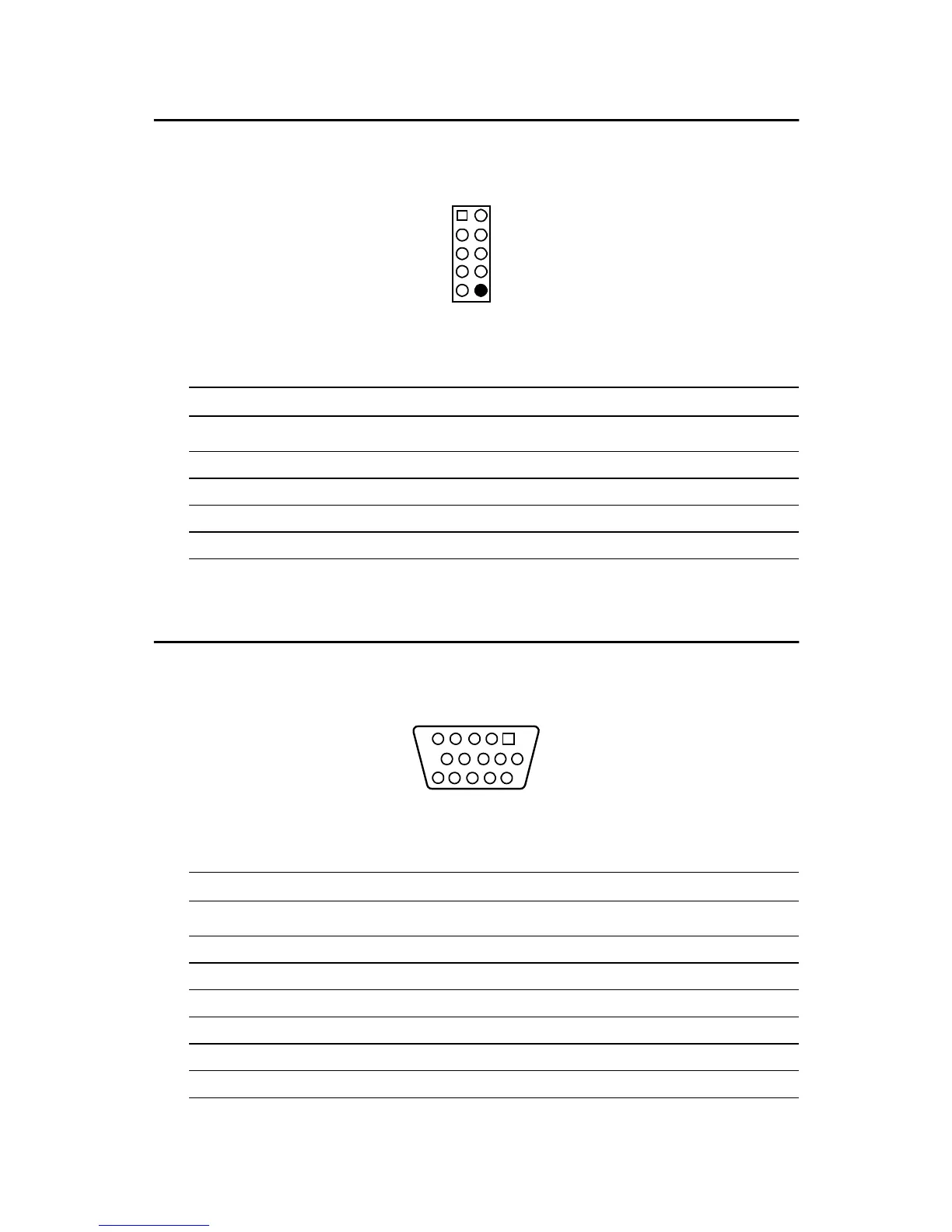

B.4 USB Connector (CN6)
B.5 VGA Connector (CN7)
Table B.4: USB Connector (CN6)
Pin USB1 Signal Pin USB2 Signal
1+5 V 6+5 V
2 UNV- 7 UV-
3 UV+ 8 UV+
4 GND 9 GND
5 Chassis GND 10 N/C
Table B.5: VGA Connector (CN7)
Pin Signal Pin Signal
1RED 9VCC
2 GREEN 10 GND
3BLUE 11N/C
4N/C 12SDT
6 GND 14 V-SYNC
7GND 15SCK
8GND
7
3
2
8
16
9
10
4
5
5
15
1
11
10 6
