PCA-6184, ed. 1 User’s Manual 94

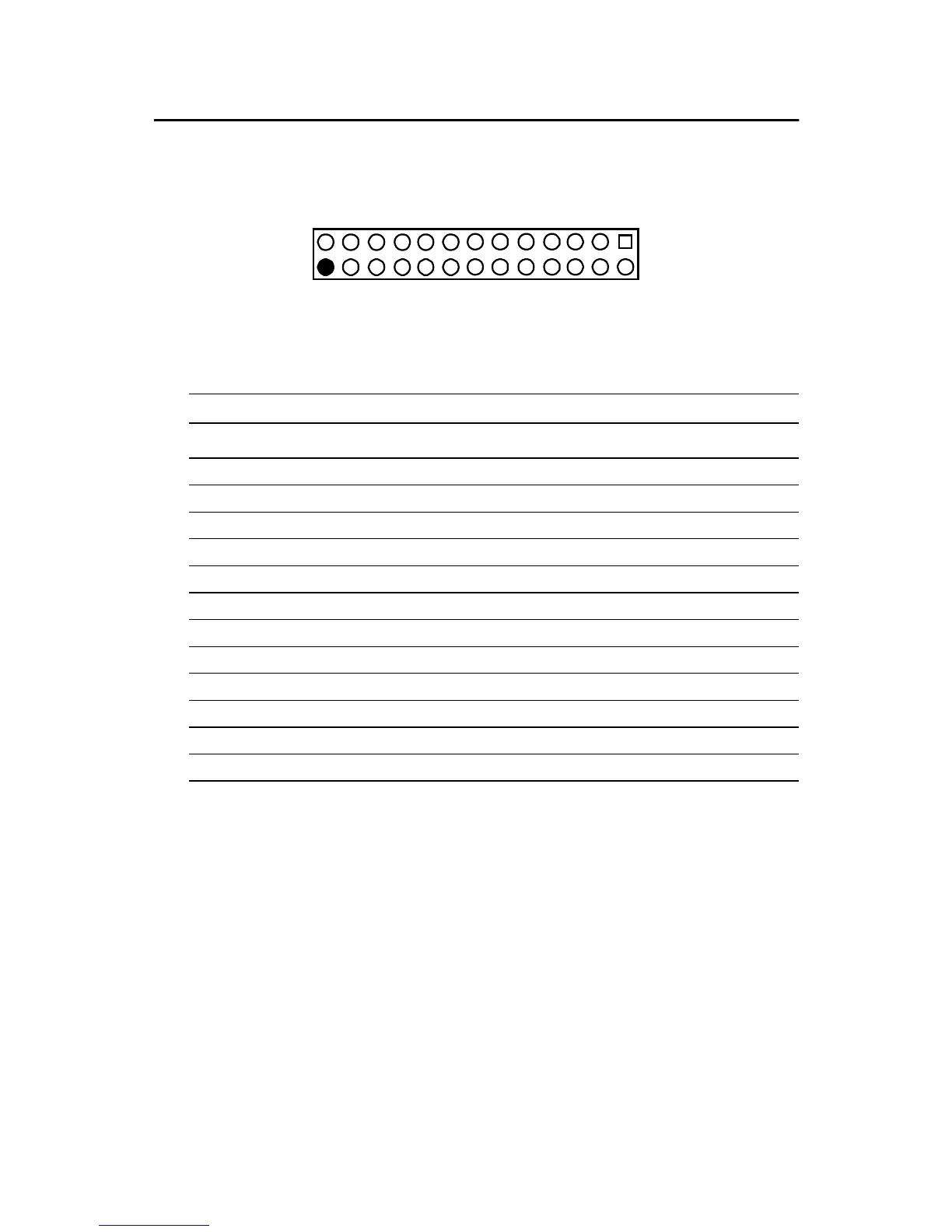

B.3 Parallel Port Connector (CN4)

* low active

Table B.3: Parallel Port Connector (CN4)

Pin Signal Pin Signal

1 STROBE* 14 AUTOFD*

2D0 15ERR

3D1 16INIT*

4D2 17SLCTINI*

5D3 18GND

6D4 19GND

7D5 20GND

8D6 21GND

9D7 22GND

10 ACK* 23 GND

11 BUSY 24 GND

12 PE 25 GND

13 SLCT 26 N/C

1526

13 2

12 1
