PCA-6184, ed. 1 User’s Manual 32
Setup: The system will boot, but access to Setup will be denied if
the correct password is not entered at the prompt.
3.5 Advanced Chipset Features
By choosing the “Advanced Chipset Features” option from the “Initial
Setup Screen” menu, the screen below will be displayed. This sample
screen contains the manufacturer’s default values for the PCA-6184, as
shown in Figure 3-4:
Note: To disable security, select “PASSWORD SET-
TING” in the main menu. At this point, you will
be asked to enter a password. Simply press
<Enter> to disable security. When security is
disabled, the system will boot, and you can
enter Setup freely.
Note: DRAM default timings have been carefully cho-
sen and should ONLY be changed if data is
being lost. Please first contact technical support

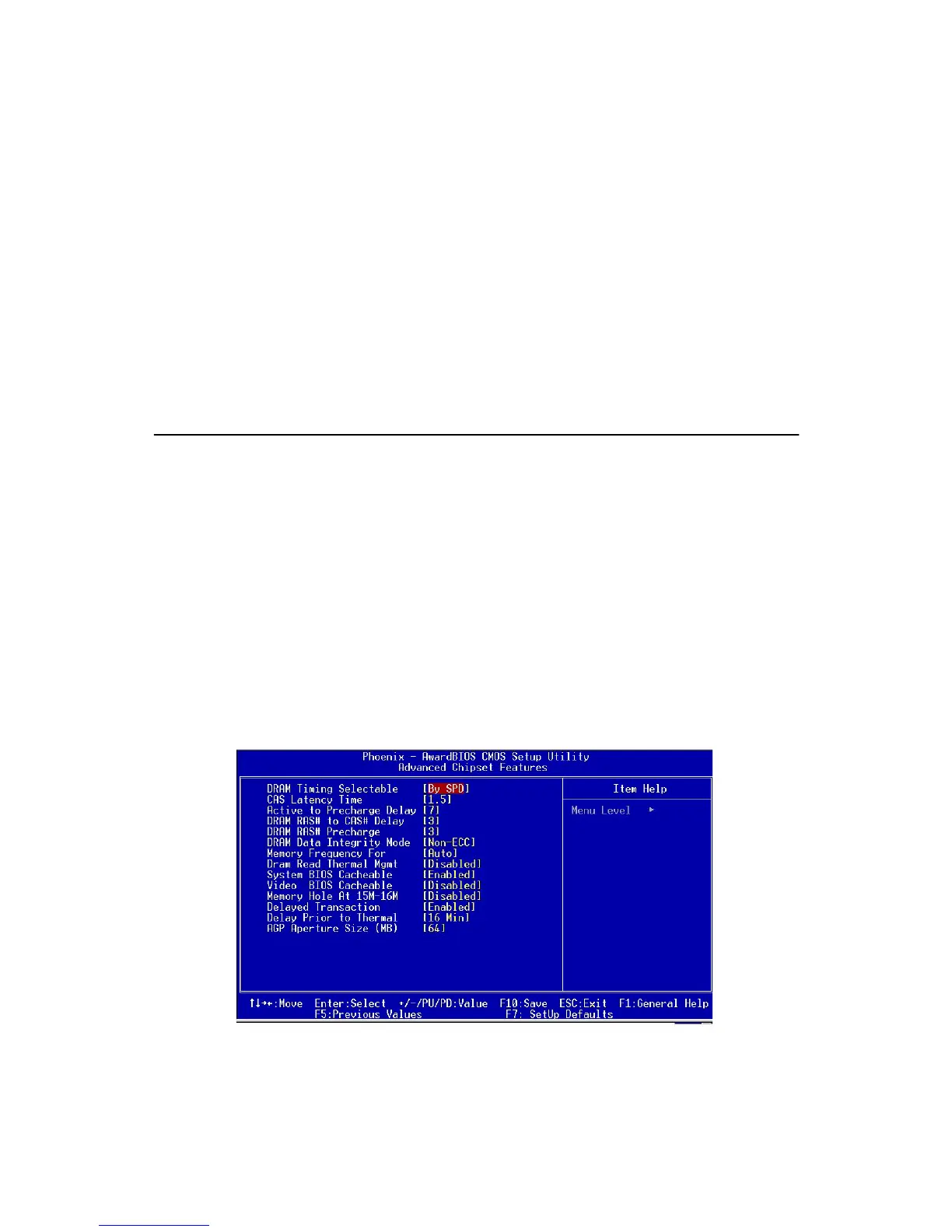

Figure 3.4: Advanced chipset features screen
