PCA-6184, ed. 1 User’s Manual 18

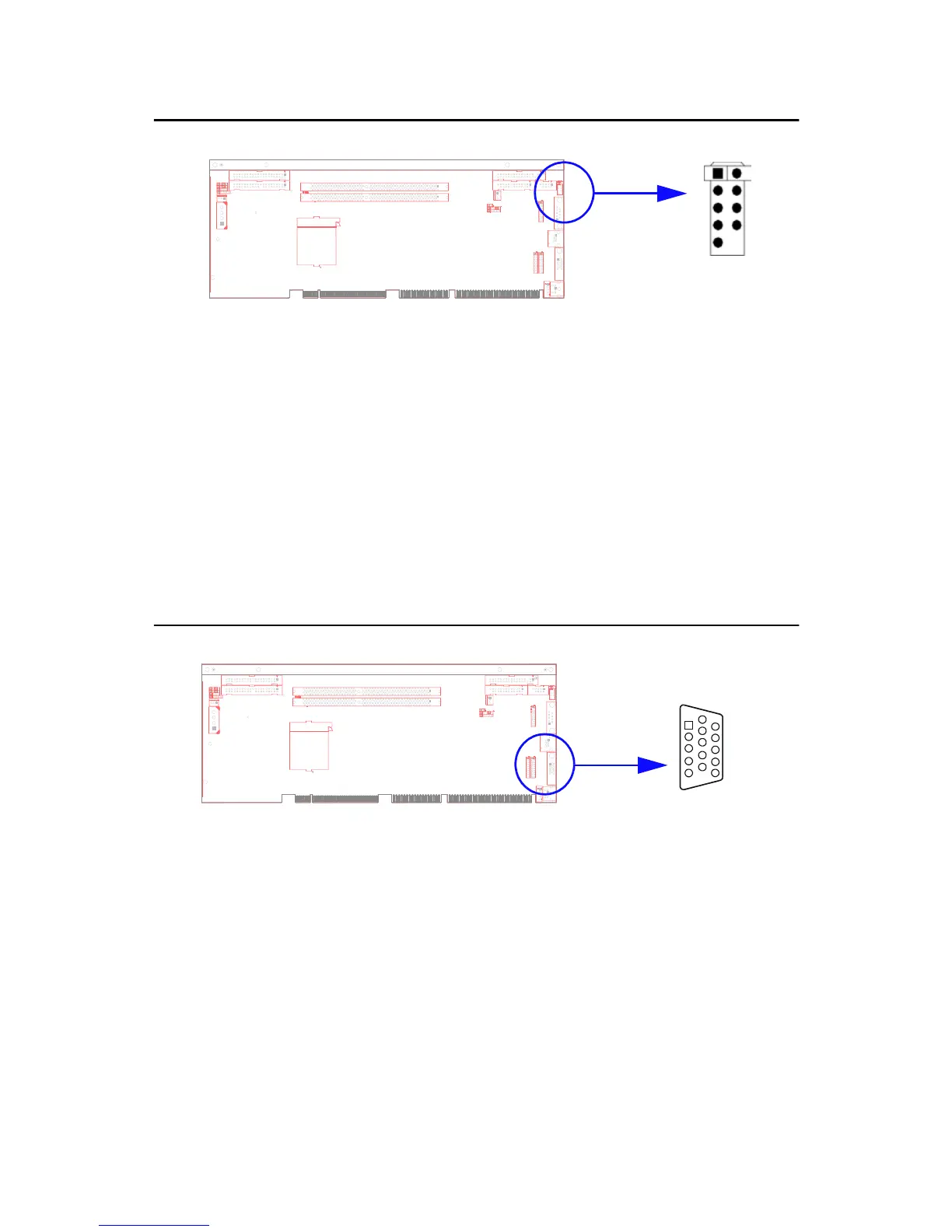

2.4 USB Ports (CN6)
The PCA-6184 provides four USB (Universal Serial Bus) interfaces,
which give complete Plug & Play and hot attach/detach for up to 127
external devices.The USB interface complies with USB Specification
Rev. 1.1 and is fuse-protected.
The USB interface is accessed through a 10-pin flat-cable connector,
CN6. The adapter cable has a 10-pin connector on one end and two USB
connectors on the bracket.
The USB interface can be disabled in the system BIOS setup.
2.5 VGA Connector (CN7)
The PCA-6184 includes a VGA interface that can drive conventional
CRT displays. CN7 is a standard 15-pin D-SUB connector commonly
used for VGA. Pin assignments for CRT connector CN7 are detailed in
Appendix B.
CN6
CPU
CN7
CPU
