97 Appendix B

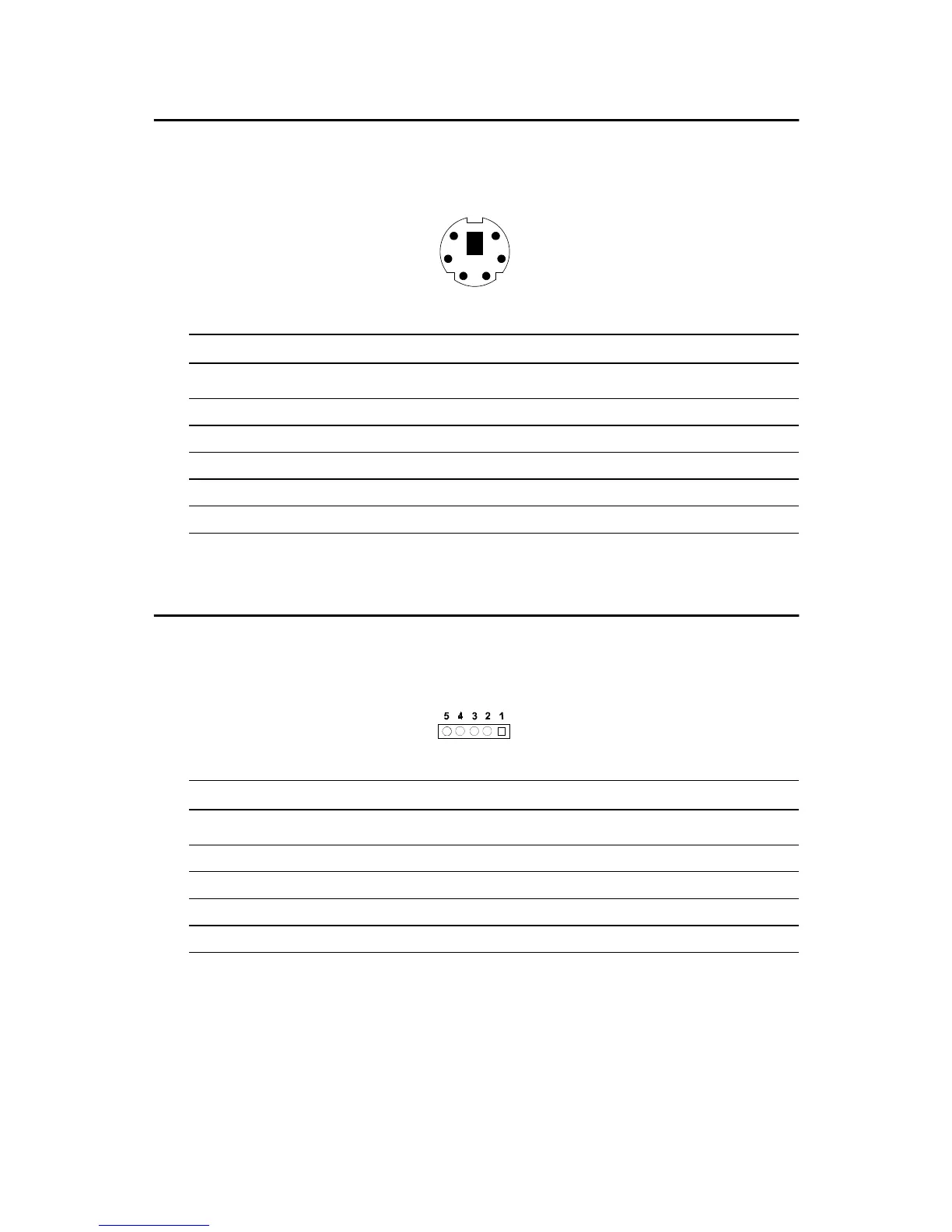

B.8 Keyboard and Mouse Connnector (CN11)

B.9 External Keyboard Connector (CN12)

Table B.8: Keyboard and Mouse Connector (CN 11)

Pin Signal

1KB DATA

2MS DATA

3GND

4VCC

5KB CLOCK

6MS CLOCK

Table B.9: External Keyboard Connector (CN 12)

Pin Signal

1CLK

2DATA

3NC

4GND

5VCC
