9 PCE-5126 User Manual
Chapter 1 Hardware Configuration
1.8.2 BIOS CMOS/ME data clear (JCMOS1/JMECLR1)
The PCE-5126 CPU card contains a jumper that can erase BIOS CMOS data and
ME (Intel Management Engine) data and reset the system BIOS information. Nor-
mally this jumper should be set with pins 1-2 closed. If you want to reset those data,
set JCMOS1/JMECLR1 to 2-3 closed for just a few seconds, and then move the
jumper back to 1-2 closed. This procedure will reset the CMOS to its last status or
default setting.

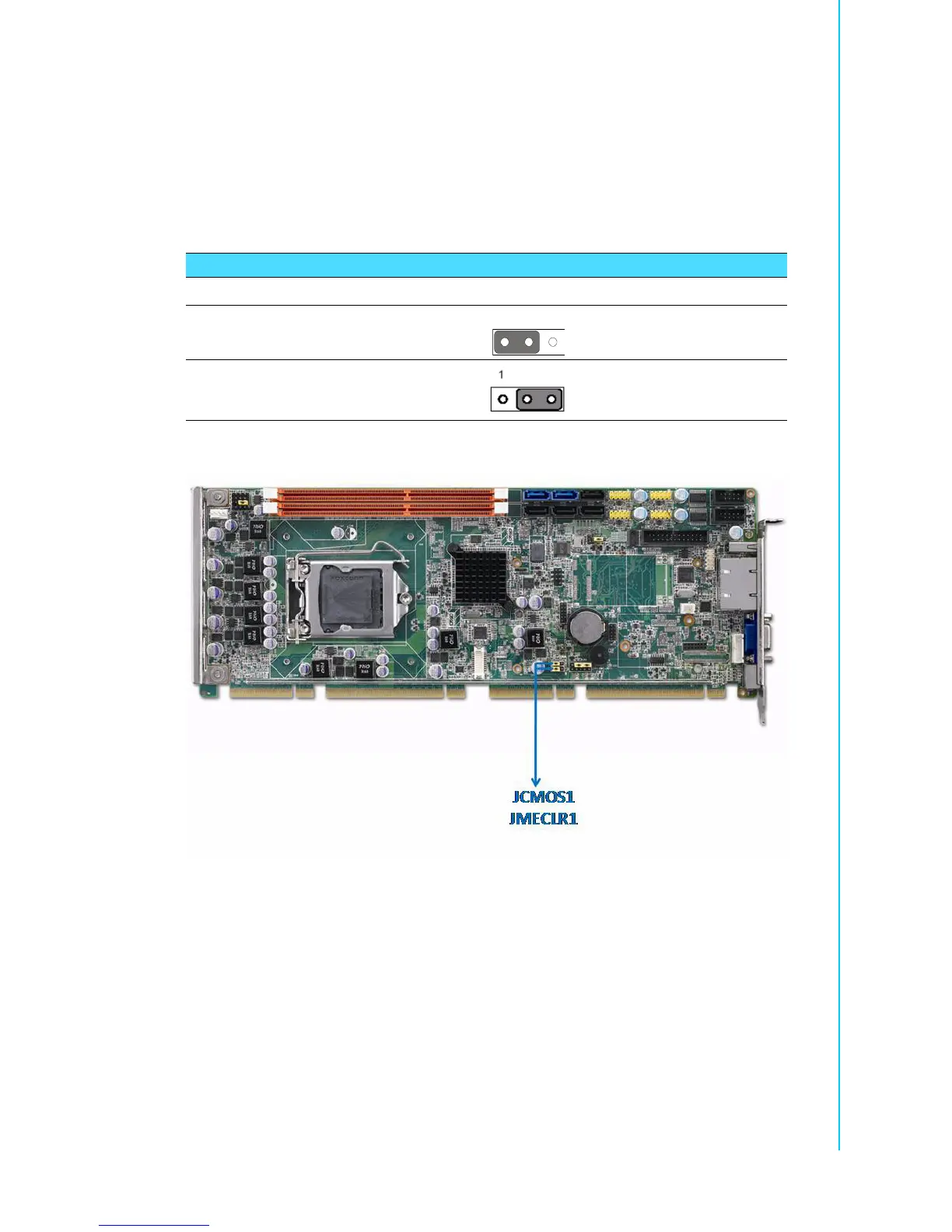

Table 1.3: Clear BIOS CMOS/ME Data (JCMOS1/JMECLR1)
Function Jumper Setting
*Keep BIOS CMOS/ME data
Clear BIOS CMOS/ME data
* default setting
