77 PCE-5126 User Manual
Appendix B I/O Pin Assignments

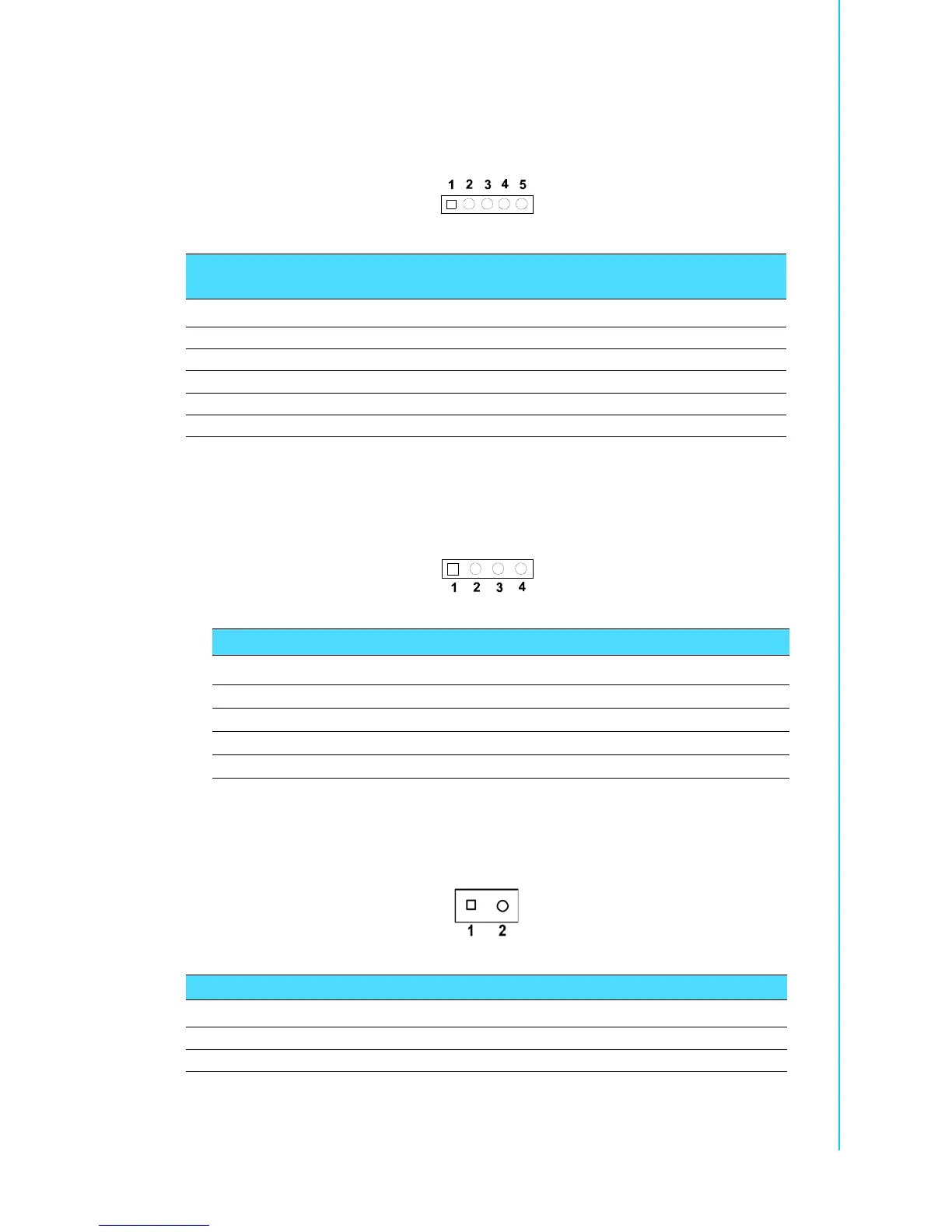

B.8 Power LED and Keyboard Lock Connector
(JFP3 / PWR_LED & KEY LOCK)
B.9 External Speaker Connector (JFP2 / SPEAKER)
B.10 Reset Connector (JFP1 / RESET)
Table B.8: Power LED and keyboard lock connector (JFP3 / PWR_LED &
KEY LOCK)
Pin Signal
1 LED power (+3.3 V)
2NC
3SUPLED
4 KEYLOCK#
5GND
Table B.9: External speaker connector (JFP2 / SPEAKER)
Pin Signal
1 SPK_CN17P1
2 SPK_CN17P2
3 SPK_CN17P3
4 SPK_CN17P4
Table B.10: Reset connector (JFP1 / RESET)
Pin Signal
1 RESET #
2GND
