PCE-5126 User Manual 80

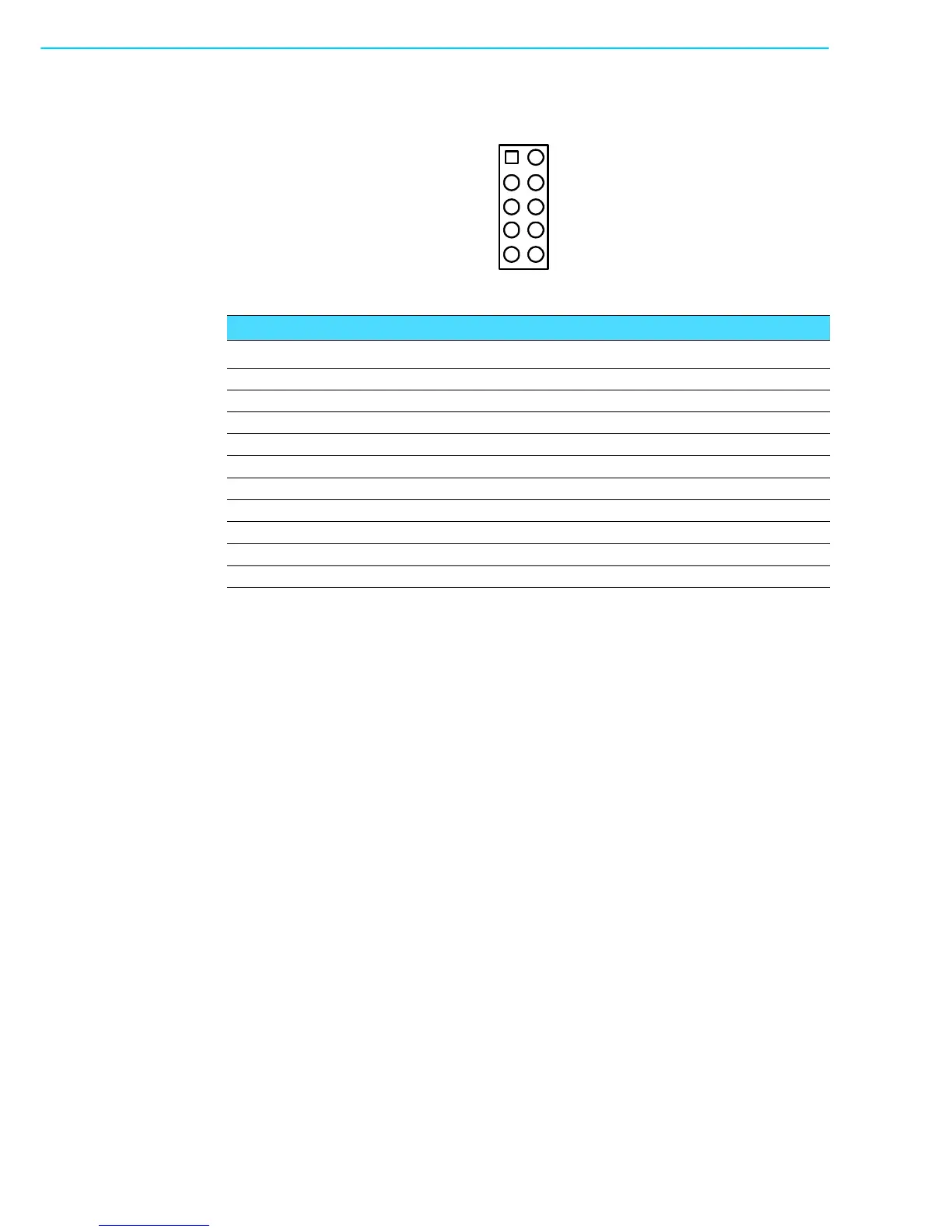

B.16 GPIO Header (GPIO1)
Table B.16: GPIO header (GPIO1)
Pin Signal
1SIO_GPIO0
2SIO_GPIO4
3SIO_GPIO1
4SIO_GPIO5
5SIO_GPIO2
6SIO_GPIO6
7SIO_GPIO3
8SIO_GPIO7
9 VCC_GPIO
10 GND
4
5
3
6
12
8
10
7
9
