17 PCE-5126 User Manual
Chapter 2 Connecting Peripherals

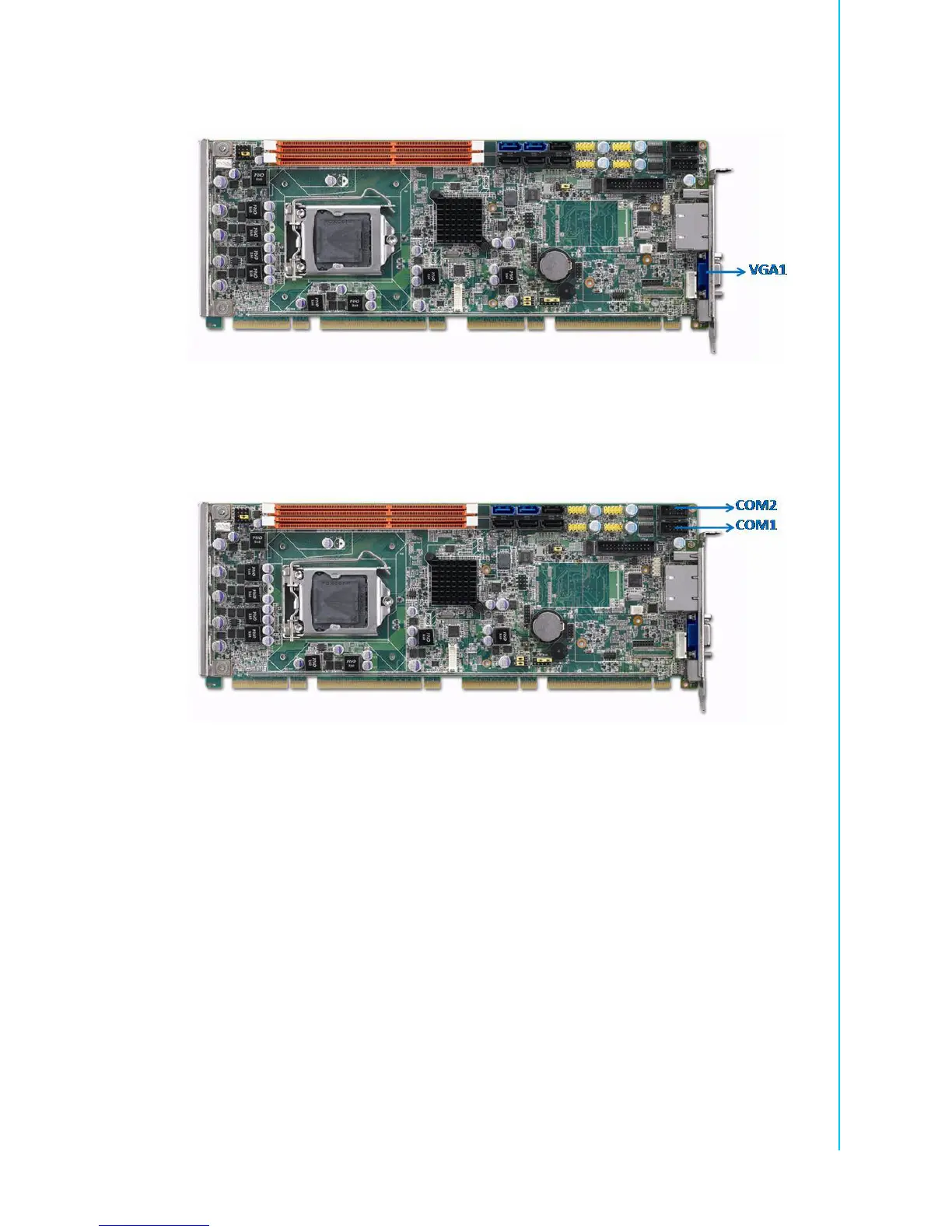

2.4 VGA Connectors (VGA1)
The PCE-5126 has VGA outputs that can drive conventional CRT displays. VGA1 is
a standard 15-pin D-SUB connector commonly used for VGA.
2.5 Serial Ports (COM1 & COM2)
The PCE-5126 offers two serial ports. These ports can connect to serial devices,
such as a mouse or a printer, or to a communications network.
The IRQ and address ranges for both ports are fixed. However, if you want to disable
the port or change these parameters later, you can do this in the system BIOS setup.
You can purchase dual COM cable kit if you are a QVG, QG2 or WG2 user and want
to use dual COM ports. The P/N is 1701092300.
