13 PCE-5126 User Manual
Chapter 1 Hardware Configuration

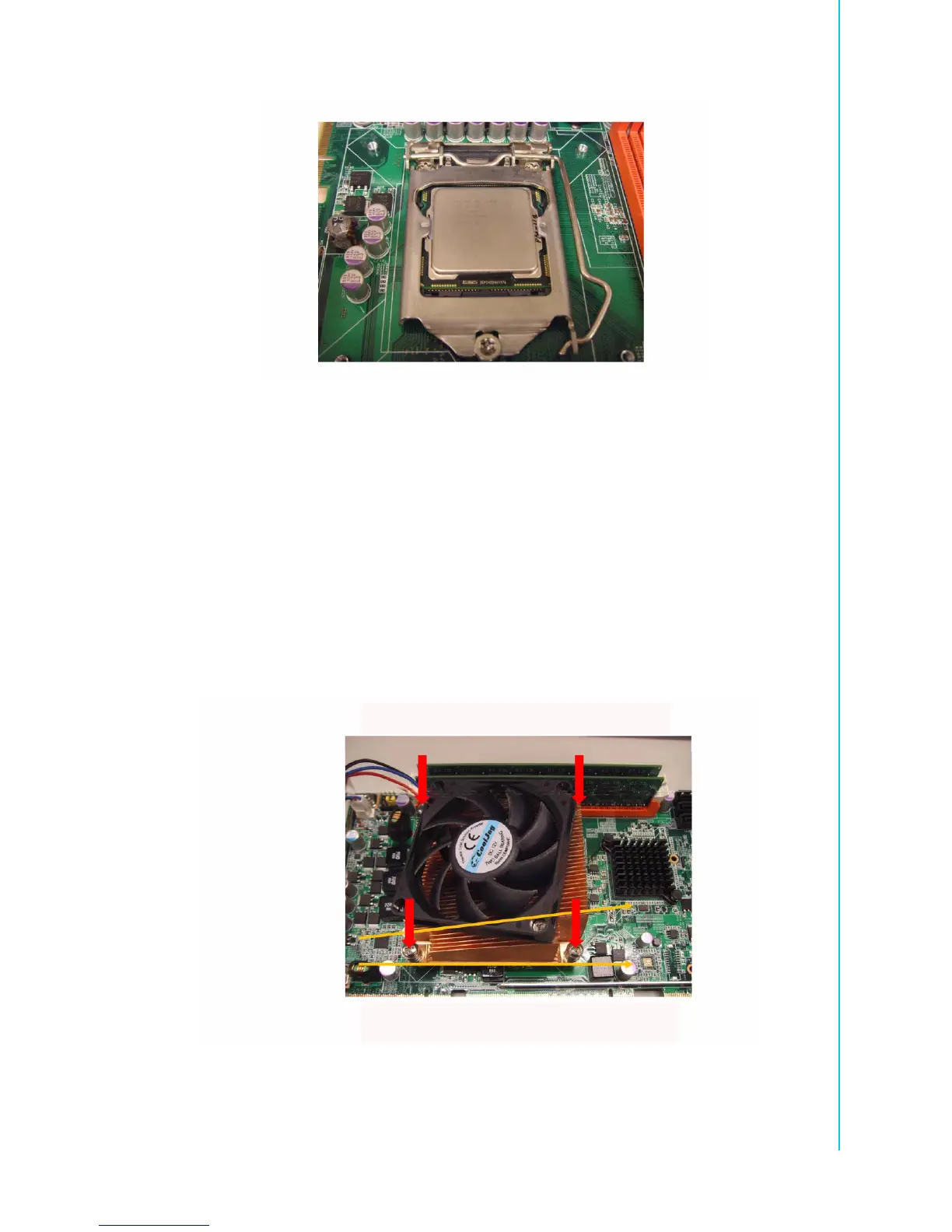

5. Finished processor installation.
1.13 Processor Cooler Installation
Purchasing PCE-5126's proprietary CPU cooler (P/N: 1960047831N001) from
Advantech is a must. Other brand CPU coolers are NOT compatible with PCE-5126.
Advantech offers a specially designed CPU cooler for PCE-5126 for better heat dissi-
pation efficiency and enhancing rigidity of CPU card, part number 1960047831N001.
Buy it for PCE-5126 CPU card since it is NOT compatible with other brand CPU cool-
ers (neither is it compatible with Intel boxed CPU cooler).
Please install 1960047831N001 CPU cooler following these instructions:
Attach the CPU cooler on CPU card by fastening four screws of the
CPU cooler into the steel back-plate on PCB.
Note the direction of CPU cooler; it must follow that shown abov
e.
Installing a CPU cooler in the wrong direction may cause poor heat
dissipation that may damage the CPU card.
