PCE-5126 User Manual 12

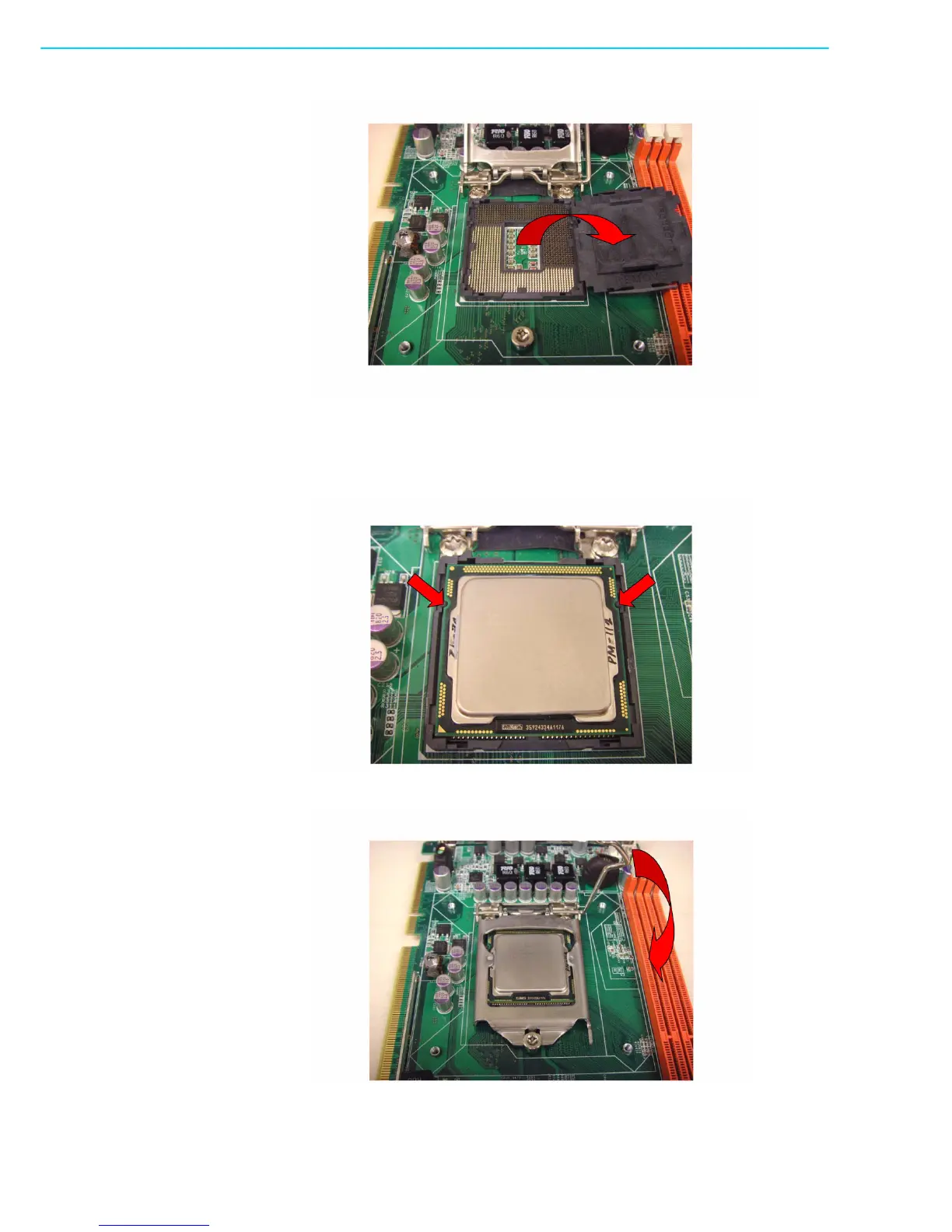

2. Remove the socket protection cap.
3. Align the cuts on the processor with the edges of the socket.
4. Replace the socket cap; lower the retainer bar and clip it shut.
