PCE-5126 User Manual 20

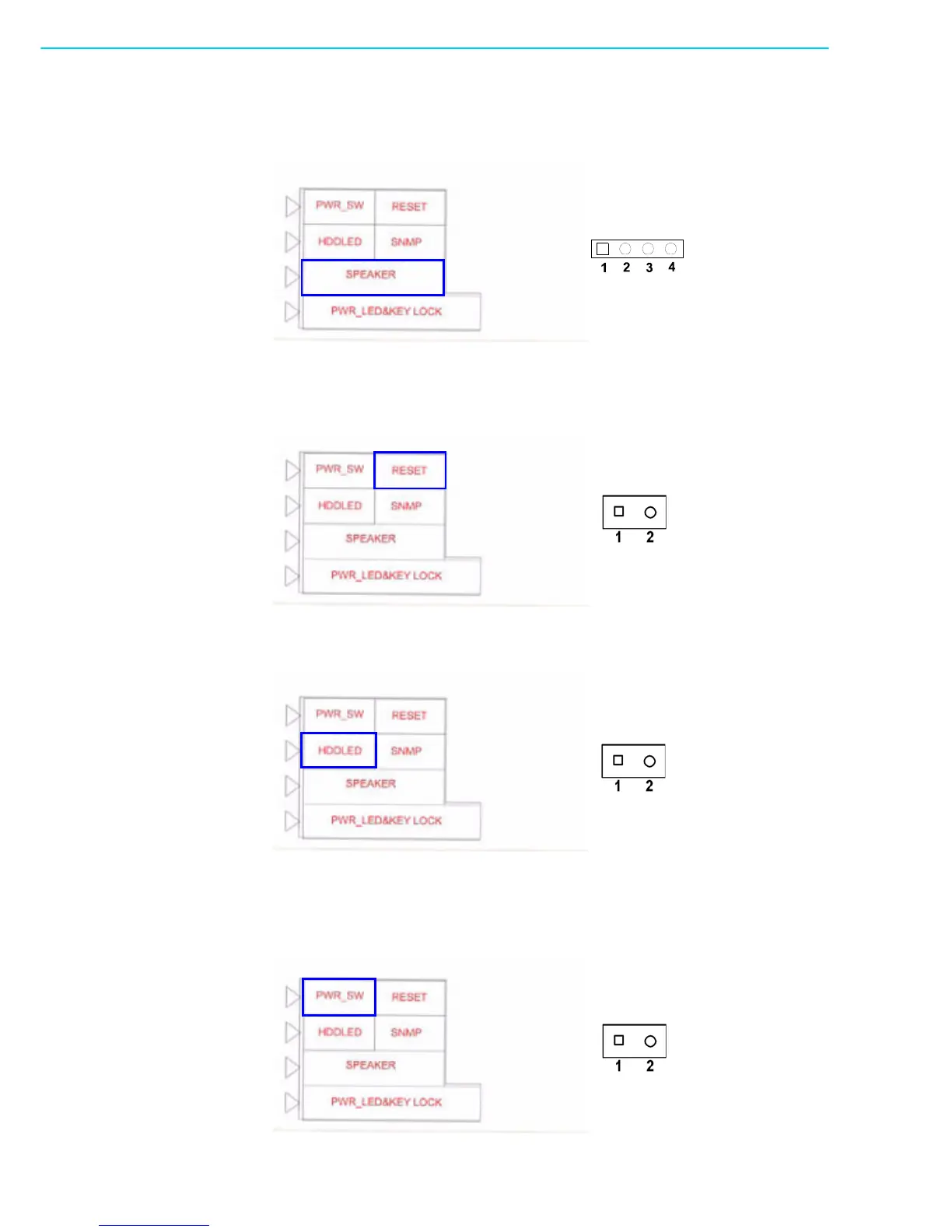

2.8.2 External speaker (JFP2)
JFP2 is a 4-pin connector for an external speaker. The PCE-5126 provides an
onboard buzzer as an alternative to an external speaker. To enable the buzzer, set
pins 3 and 4 as closed.
2.8.3 Reset connector (JFP1)
Many computer cases offer the convenience of a reset button. Connect the wire from
the reset button.
2.8.4 HDD LED connector (JFP2)
You can connect an LED to connector JFP2 to indicate when the HDD is active.
2.8.5 ATX soft power switch (JFP1)
If your computer case is equipped with an ATX power supply, you should connect the
power on/off button on your computer case to JFP1. This connection enables you to
turn your computer on and off.
