43 PCE-5126 User Manual
Chapter 3 AMI BIOS Setup
3.2.3 Chipset

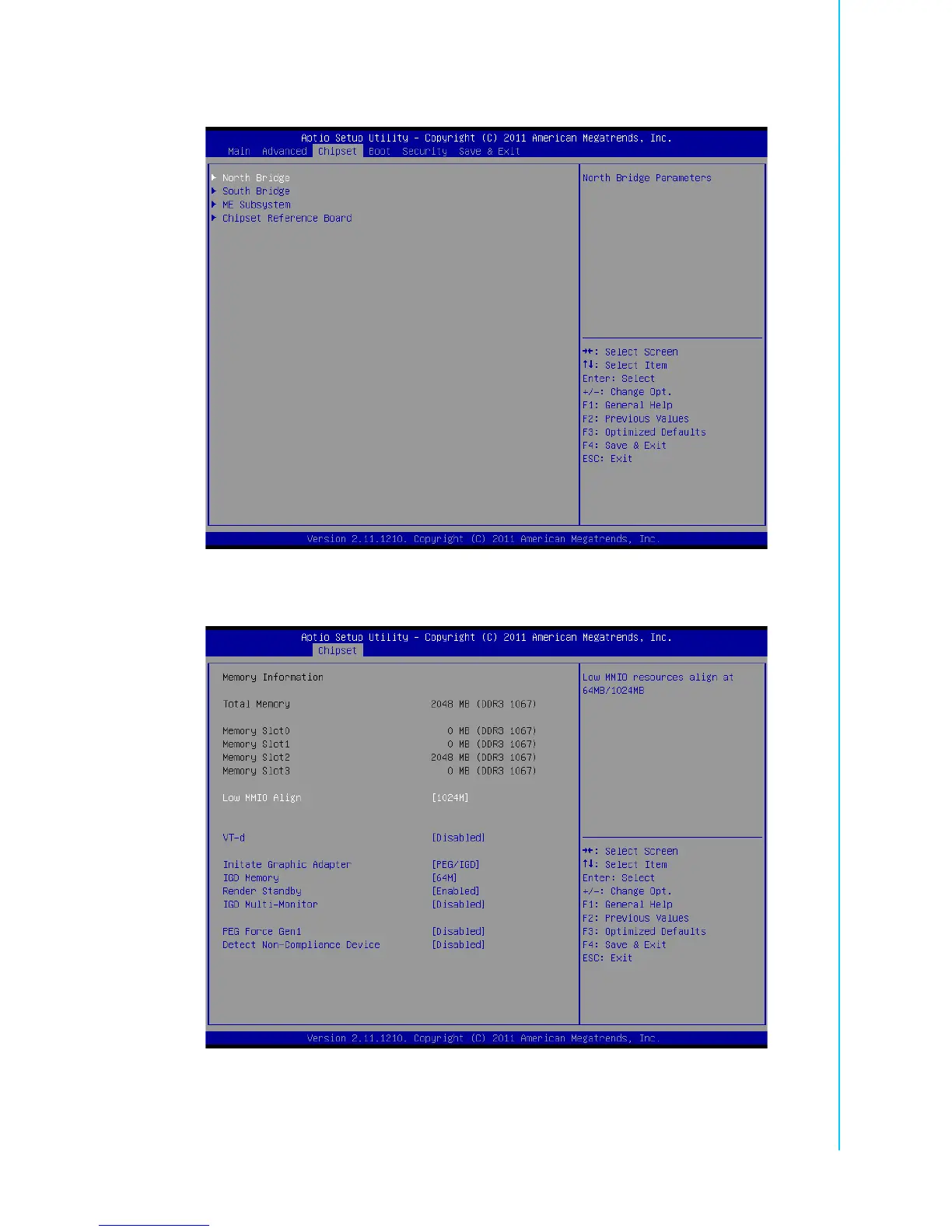

Figure 3.19 Chipset
3.2.3.1 North Bridge
Figure 3.20 North Bridge
Low MMIO Align
Low MMIO resources align at 64MB/1024MB.
