PCE-5126 User Manual
Appendix B
I/O Pin
A
ssignments

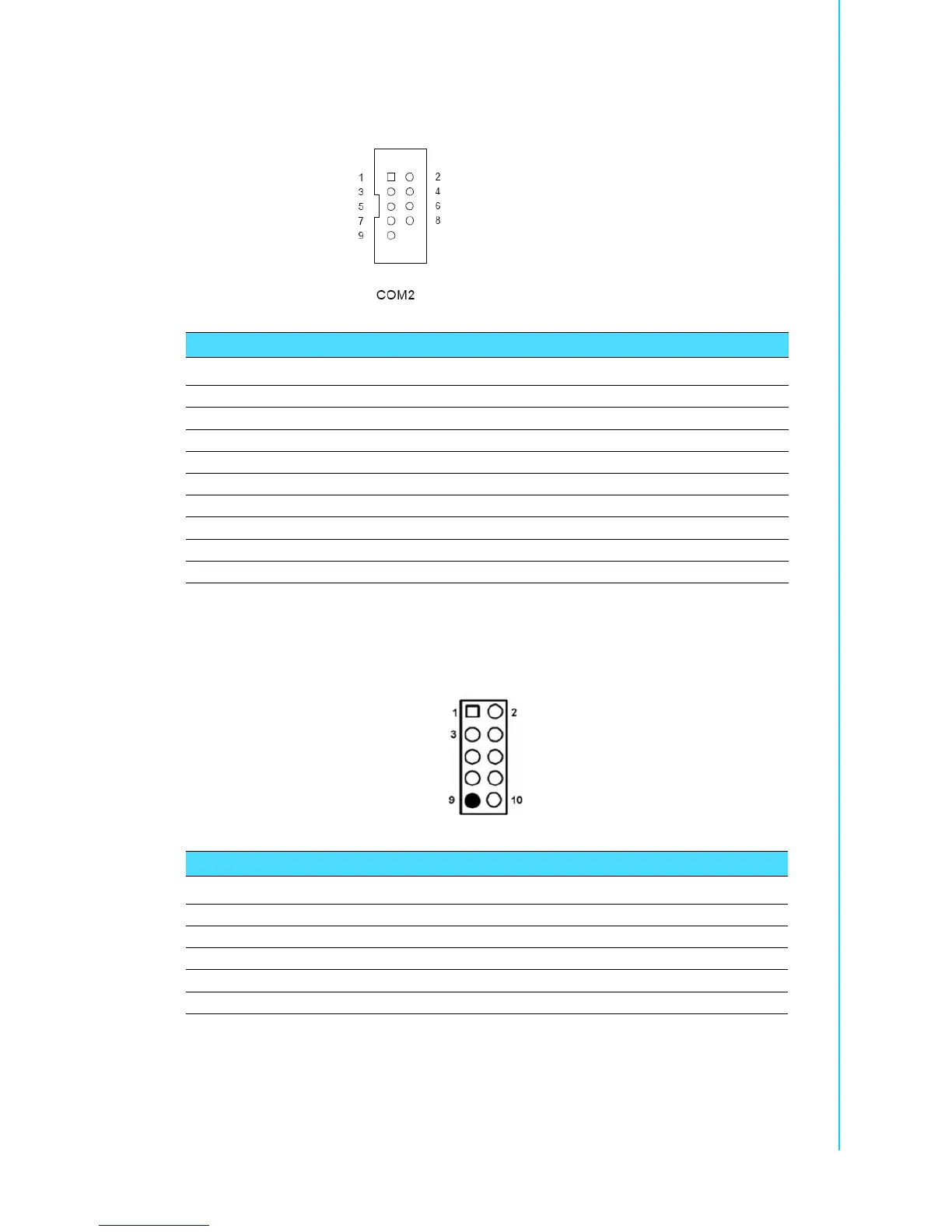

B.3
RS 232 Serial Port (COM2)
B.4
USB Header (USB12 ~ 78)
T
able B.3: RS-232 serial port (COM2)
Pin Signal
1
DCD
2
DSR
3
SIN
4
RTS
5
SOUT
6
CTS
7
DTR
8
RI
9
GND
T
able B.4: USB Header (USB12 ~ 78)
Pin
Signal
Pin
Signal
1
USB1_VCC5
6
USB2_D+
2
USB2_VCC5
7
GND
3
USB1_D-
8
GND
4
USB2_D-
9
Key
5
USB1_D+
10
NC
84
