PCE-5126 User Manual 16
2.1 Introduction
You can access most of the connectors from the top of the board. If you have a num-
ber of cards installed, you may need to partially remove the card to make all the con-
nections.

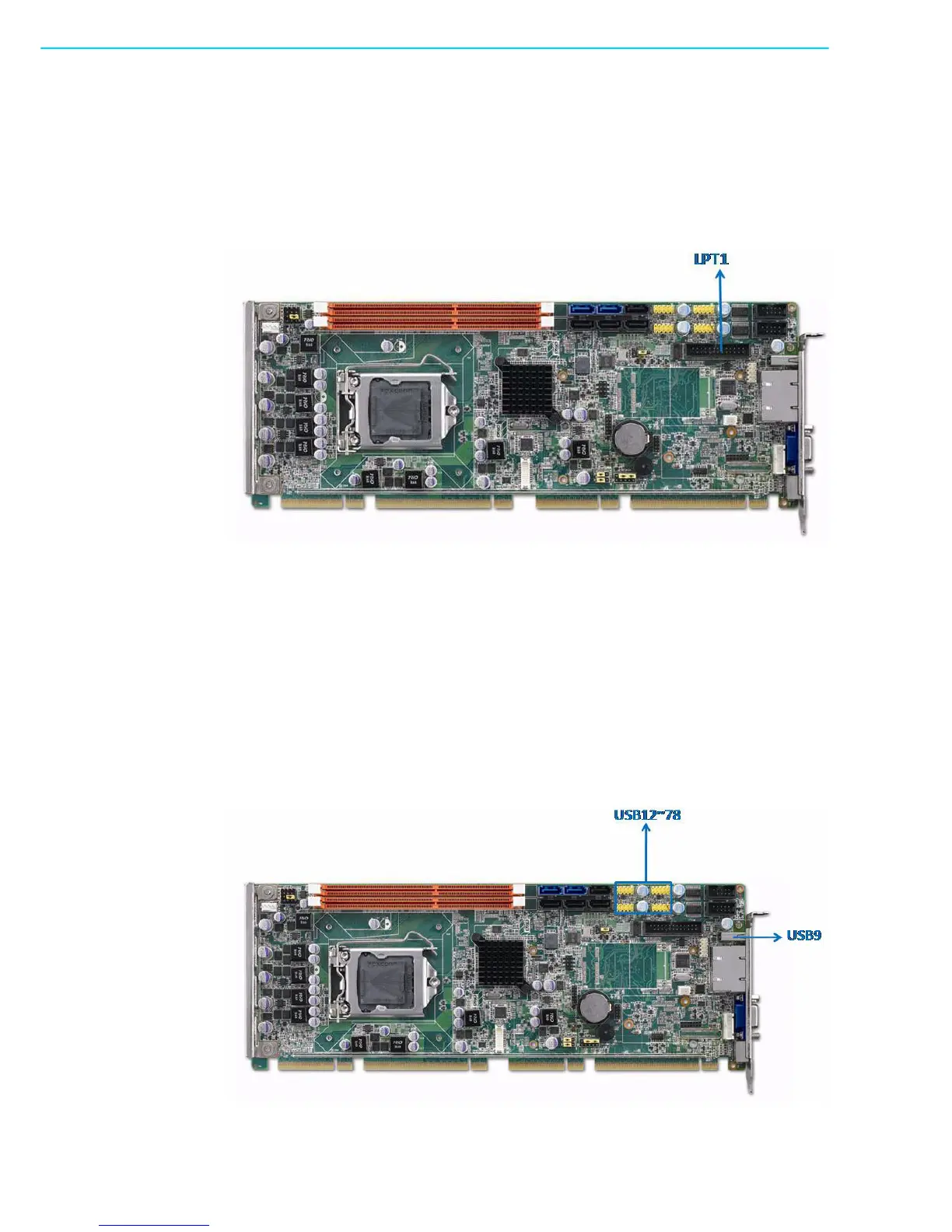

2.2 Parallel Port (LPT1)
The parallel port is normally used to connect the motherboard to a printer. The PCE-
5126 includes an onboard parallel port, accessed through a 26-pin flat-cable connec-
tor, LPT1.
2.3 USB Ports (USB12, USB34, USB56, USB78)
The PCE-5126 provides up to 9 USB (Universal Serial Bus) on-board ports with com-
plete Plug & Play and hot swap support for up to 127 external devices. These USB
ports comply with USB Specification Rev. 2.0, support transmission rates up to 480
Mbps and are fuse protected. The USB interface can be disabled in the system BIOS
setup.
