PWS-440 User Manual 6

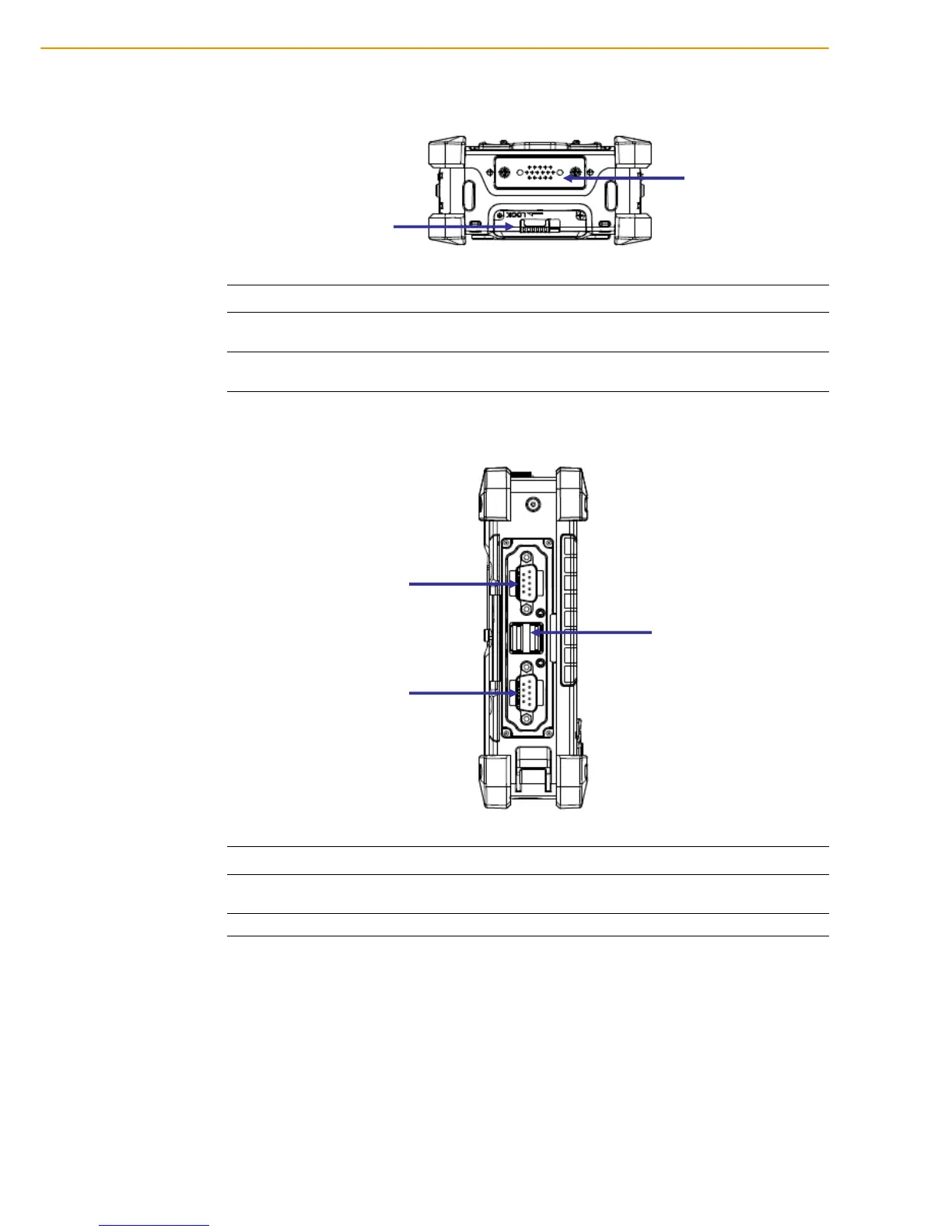

1.2.3 Bottom View

1.2.4 Left View

Item Description

Cradle connector

Connects the PWS-440 to cradle, enabling battery charging also

connects RS232, USBA and USB mini B).

Battery Cover Latch

Unlock the latch to open the battery compartment cover to place or

remove battery.

Cradle Connector

Battery Cover Latch

Item Description

RS 232 Serial Port

Connects using a mini 9 way D type connector for this port for

serial communications.

USB type A port Connects to USB type A port (host) to this port.

USB A Port

RS 232 Serial Port
