3.6 Connecting Devices to the PWS-440
This section describes how to connect devices to the PWS-440. Connection can be
made directly to the PWS-440 or using the cradle.
3.6.1 Connecting USB
The PWS-440 can accommodate both USB Type A and USB mini Type B.
Connecting a USB Type A

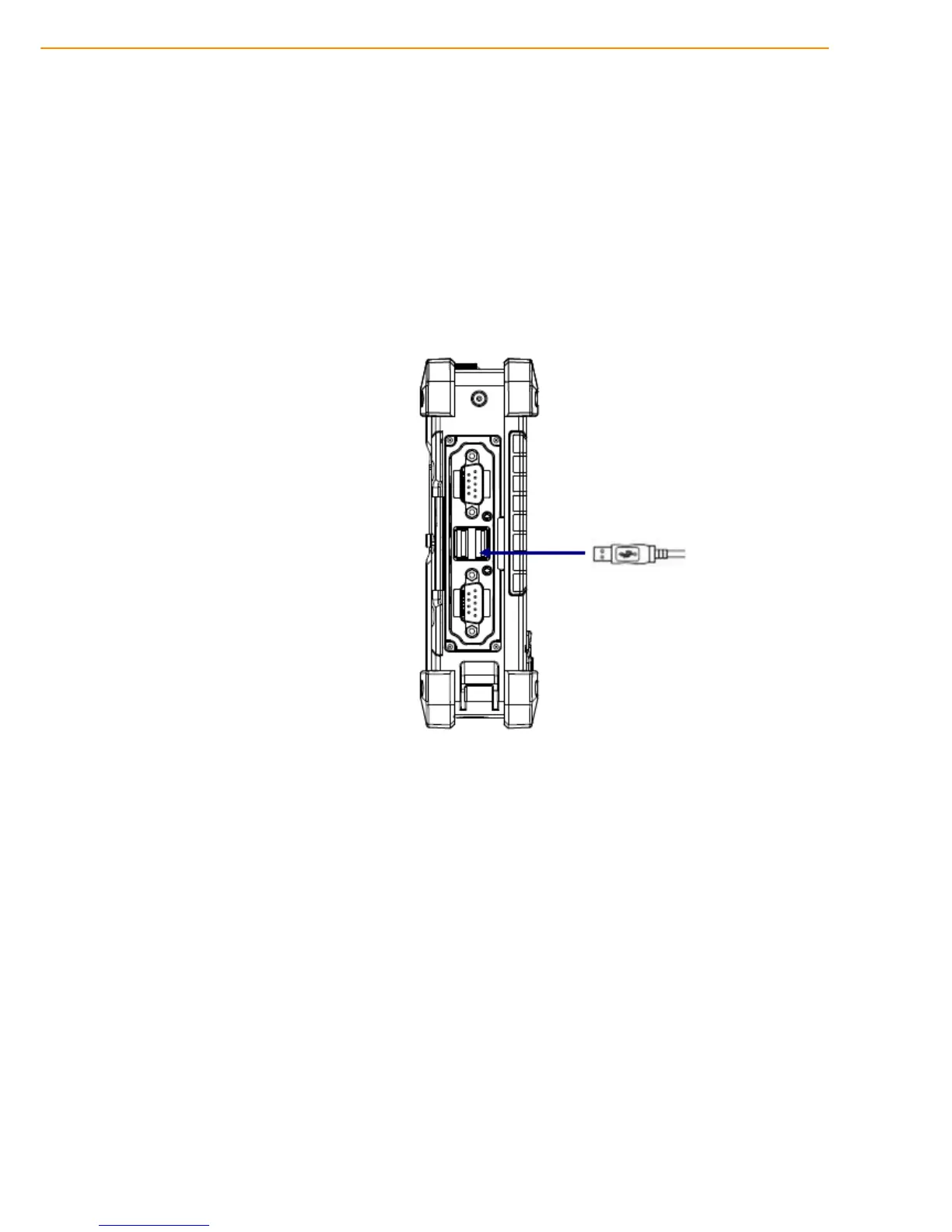

The illustration below shows how to connect a USB type A device to the PWS-440.
The connector can only go in one way. If it does not go in smoothly, check the orien-
tation and try again.
