Advantech PWS-440 - Charging the Battery with the Cradle

15 PWS-440 User Manual
Chapter 2 Getting Started

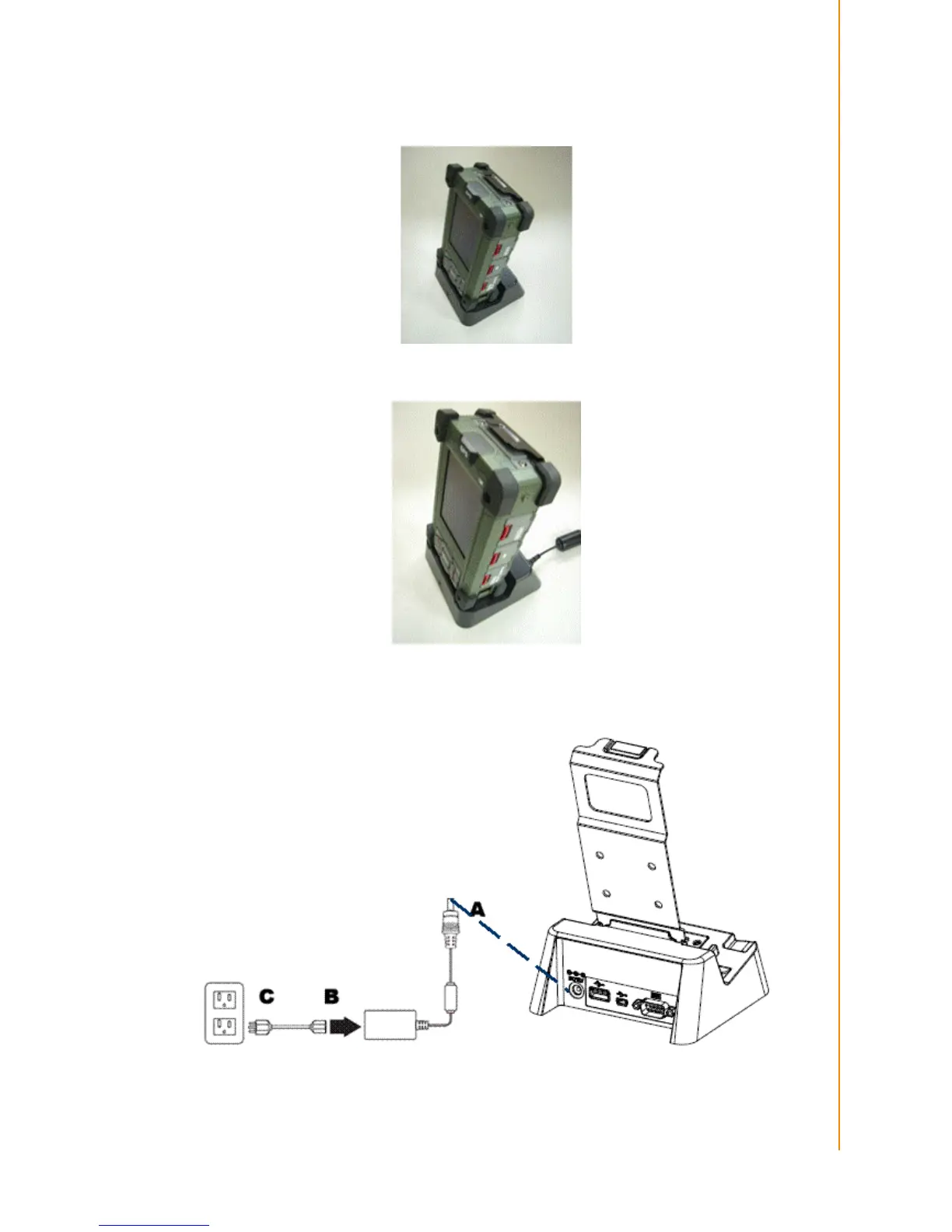

2.2.4 Charging the Battery with the Cradle
1. Slide the PWS-440 into the cradle until it clicks into place.
2. Plug the AC adapter cable into the power connector on the cradle (A).
3. Plug the power cable connector into the AC adapter (B), Plug the AC adapter
into an electrical outlet (C).
