INSTALLATION
PRELIMINARY WARNINGS
For detailed information (dimensions, weights, technical speci-
cations, etc) please refer to the information chapter.
The location, hydraulic and electrical system must be estab-
lished by the designer and should take into account both the
purely technical needs of any local laws in force and of specic
authorisations.
Ensure that the equipment corresponds with the system re-
quirements.
Make sure the equipment is installed protected from the ele-
ments in clean, dry premises.
Meet the technical spaces shown in this manual to ensure prop-
er access for machine maintenance.

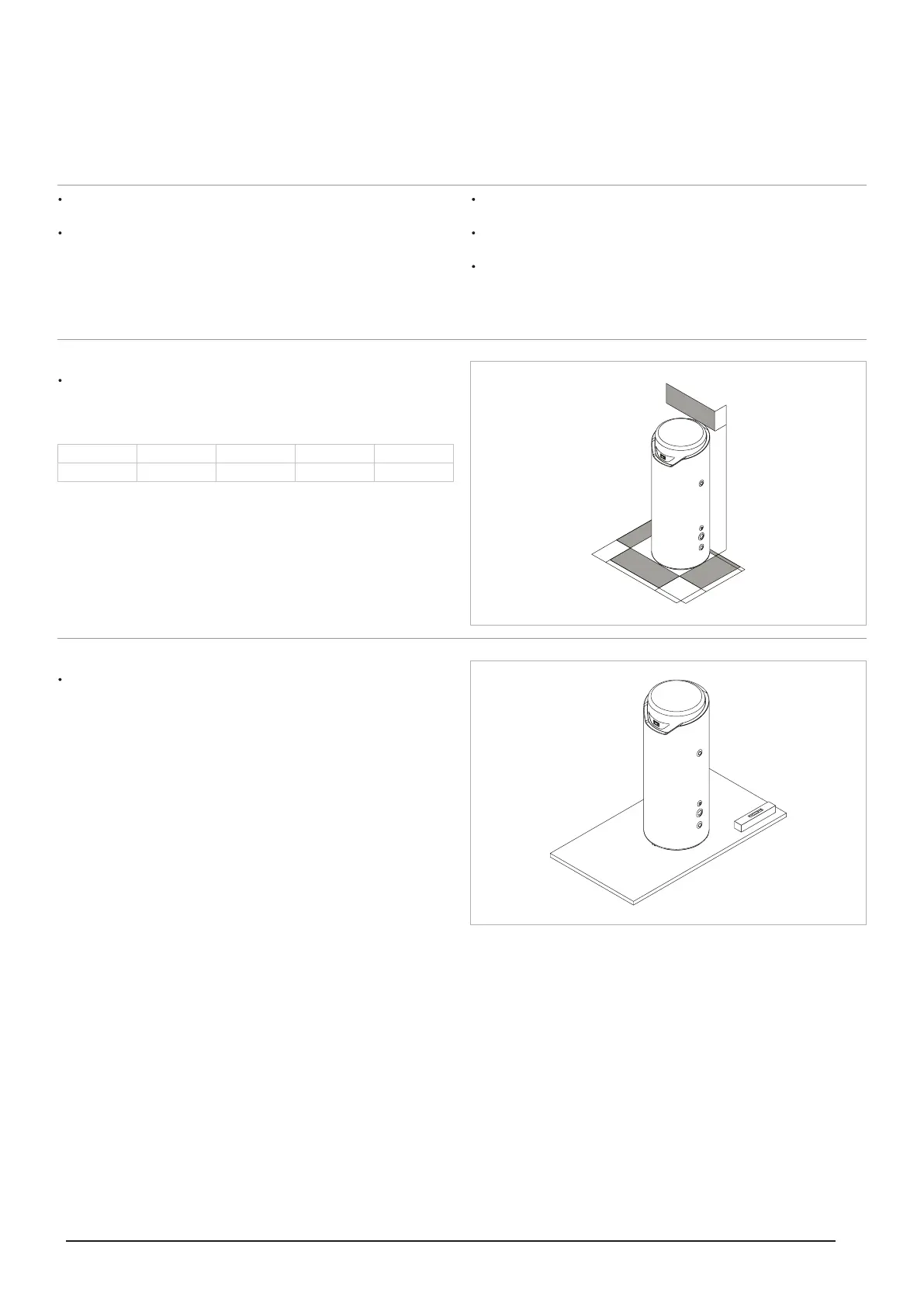

CHECKING OPERATIVE SPACES
The installation must allow specialised, authorised personnel to
service the machine easily, respecting both the safety distances
between units and other equipment as well as the technical
spaces indicated in the table.
H1 L1 L2 W1 W2
400 500 200 300 300
POSITIONING UNITS
Place the unit on a perfectly level supporting surface.
H1
L2
L1
W2
W1
