AERMEC SAF - Example of System with SAF_S and SAF_T Integration; Example of System with Solar Integration with SAF S

SAF_5523451_09
16

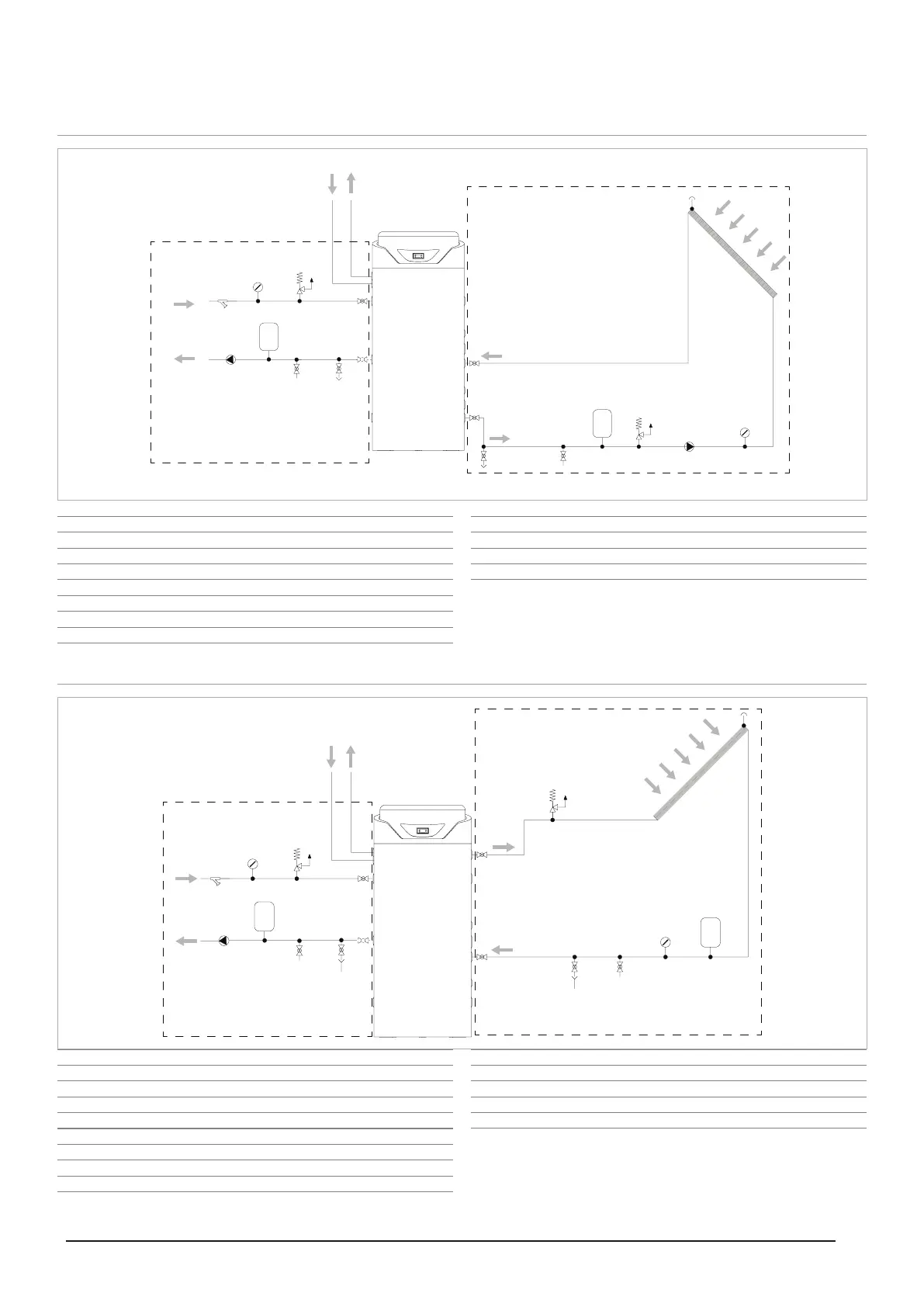

Example of system with SAF_S and SAF_T integration
A. From the heat pump
B. To the heat pump
C. To the DHW distribution system
1. Y-Filter
2. Manometer
3. Safety valve
4. Cut-o valve
5. SAF T
6. Low-temperature system mixer
7. Air vent
8. solar collector
9. Drain tap
10. Expansion vessel
11. Filling valve
Example of system with solar integration with SAF S
A. From the heat pump
B. To the heat pump
C. To the DHW distribution system
1. Y-Filter
2. Manometer
3. Safety valve
4. Cut-o valve
5. SAF S
6. Air vent
7. Solar collector
8. Circulation pump
9. Expansion vessel
10. Filling valve
11. Drain tap
NOT PROVIDED
NOT PROVIDED
NOT PROVIDED
NOT PROVIDED
A
B
C
1
2
3
3
5
4
4
4
6
8
10
119
106
2
7
4
9
11
4
4
2
1
3
10
11
11
4
9
8
B
A
C
10
4
9
2
7
6
3
5
