AERMEC SAF - Dimensions; Saf

SAF_5523451_09
31
SAF°

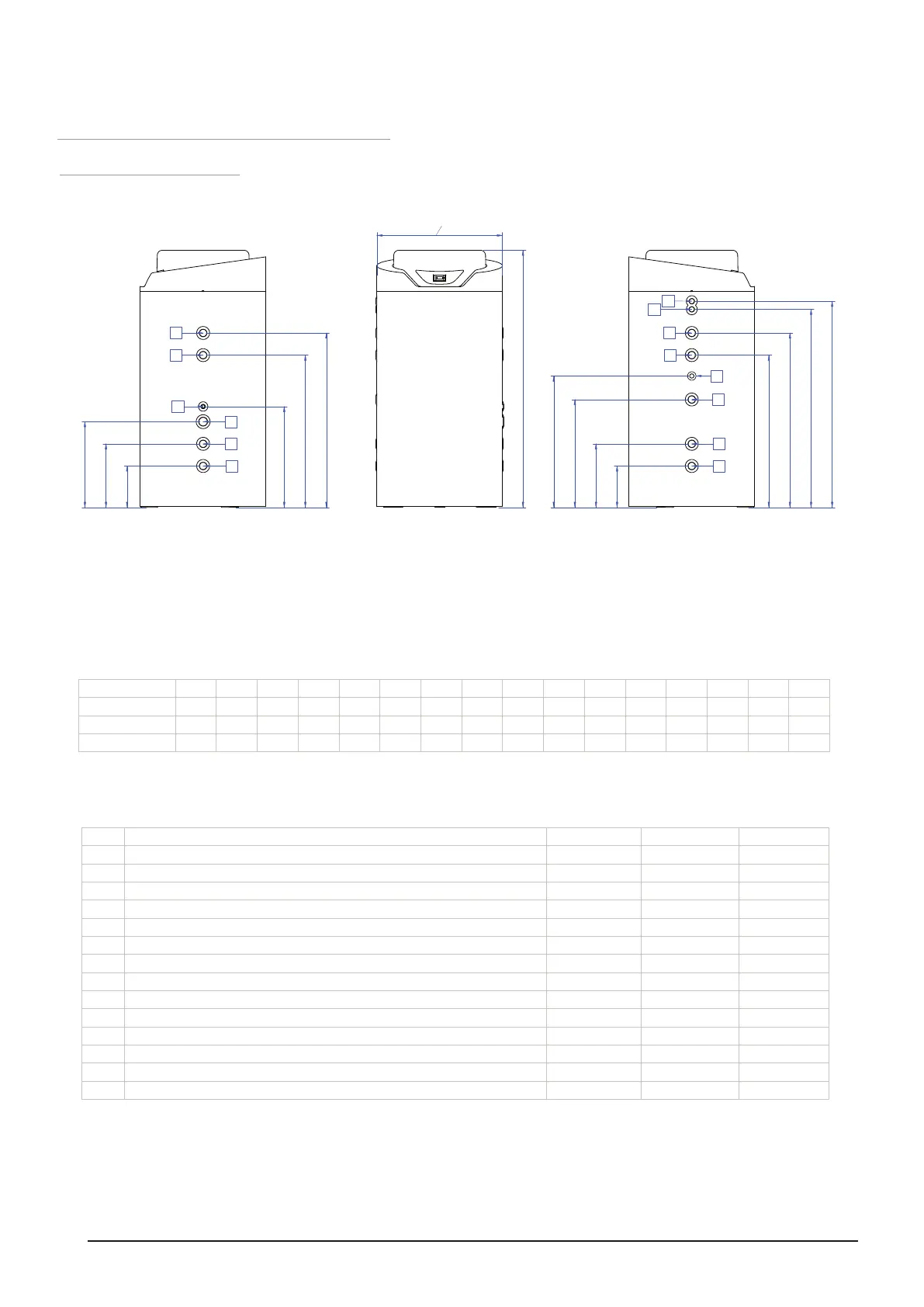

DIMENSIONS  CONNECTIONS
DESCRIPTION A B C D E F G H I L M N O P Q R
SAF 200 710 1315 255 / 405 525 / 780 255 / 517,5 / 780 915 970 629
SAF 300 710 1690 255 / 405 525 / 1145 255 / 705 / 1145 1190 1345 975
SAF 500 850 1740 280 430 580 683 1030 1180 280 430 730 1030 1180 1340 1395 880
N° DESCRIPTION SAF 200 SAF 300 SAF 500
1 INLET COLD WATER HEALTH 3/4” 3/4” 3/4”
2 OUTPUT HOT WATER 3/4" 3/4” 3/4”
3 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1” 1”1/4
4 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1” 1”1/4
5 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION / / 1”1/4
6 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1”1/2 1”1/2 1”1/2
7 ATTACHMENT FOR ELECTRICAL RESISTANCE (KRX SAF-ACCESSORY) 1" 1” 1”1/4 1”1/4
8 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION / / 1”1/4
9 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1" 1” 1”1/4
10 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION / / 1”1/4
11 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION / / 1”1/4
12 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1” 1”1/4
13  CABLE ENTRY ELECTRICAL RESISTANCE (KRX SAF-ACCESSORY) GUAINA D. 20 GUAINA D. 20 GUAINA D. 20
14  COCKPIT FOR PROBE SSAN (SUPPLIED ONLY OF HEAT PUMPS WRL) 1/2" 1/2” 1/2”
O A
B
C
D
E
F
G
H
I
L
M
N
O
P
Q
2
1
3
4
5
6
12
9
8
10
11
7
13
R
14
