SAF S

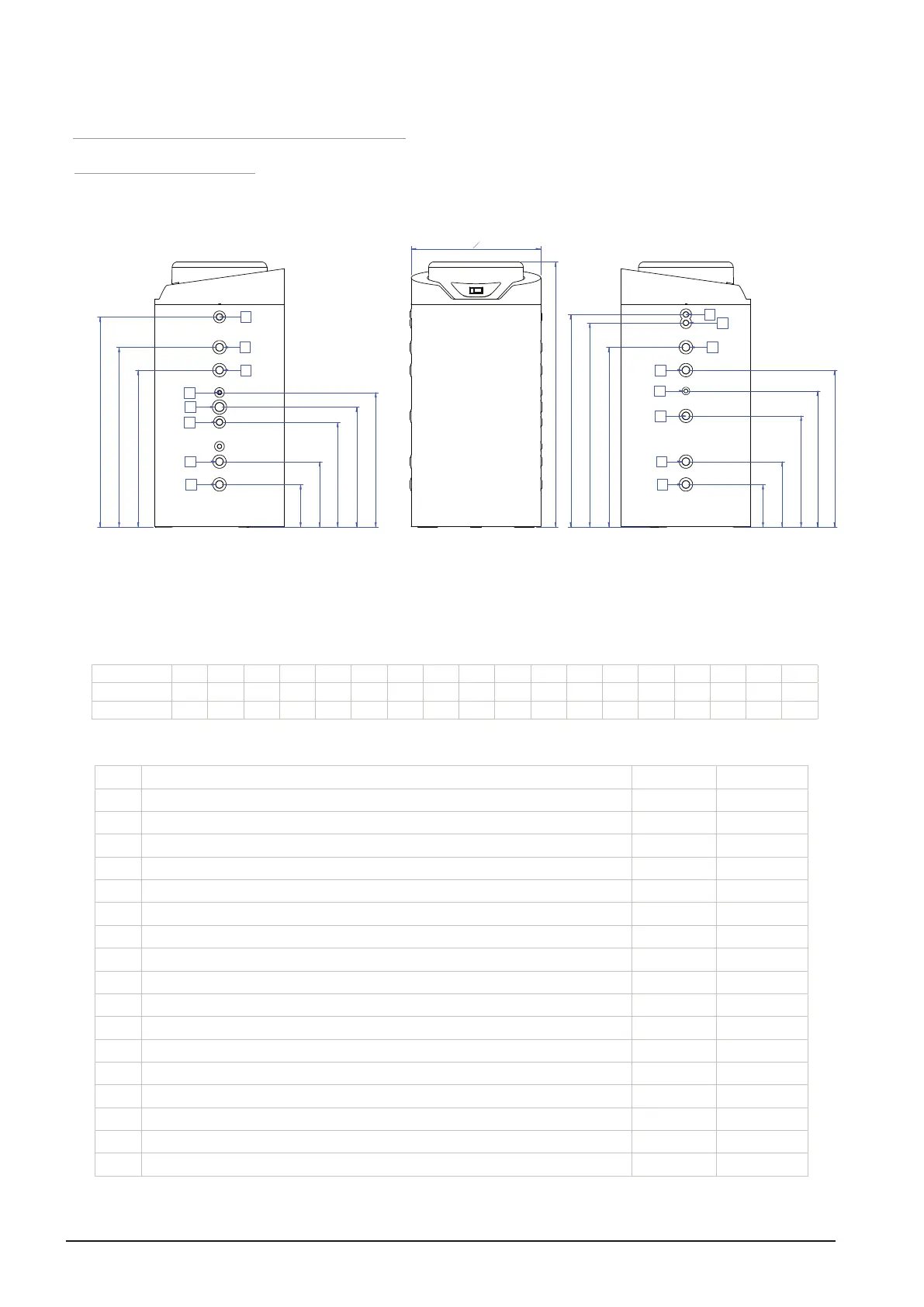

DIMENSIONS  CONNECTIONS
DESCRIPTION A B C D E F G H I L M N O P Q R S T
SAF 200 710 1690 255 / 695 815 / 1155 255 / 705 / 1155 1290 1345 1329 584 1005
SAF 300 850 1740 280 430 788 883 1030 1180 280 430 730 1030 1180 1340 1395 1379 688 880
N° DESCRIPTION SAF 300 SAF 500
1 INLET COLD WATER HEALTH 3/4" 3/4”
2 OUTPUT HOT WATER 3/4" 3/4”
3 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1”1/4
4 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1”1/4
5 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1”1/4
6 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION / 1”1/4
7 ATTACHMENT FOR ELECTRICAL RESISTANCE (KRX SAF-ACCESSORY) 1”1/2 1”1/2
8  ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1”1/4
9 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1”1/4
10 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION / 1”1/4
11 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION / 1”1/4
12 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1”1/4
14 ATTACHMENT FOR HEAT PUMP / OTHER INTEGRATION 1” 1”
13  OUTPUT SOLAR COIL 1” 1”
15 INPUT SOLAR COIL GUAINA D. 20 GUAINA D. 20
17 CABLE ENTRY ELECTRICAL RESISTANCE (KRX SAF-ACCESSORY) 1/2” 1/2”
18 COCKPIT FOR PROBE SSAN (SUPPLIED ONLY OF HEAT PUMPS WRL) 1/2” 1/2”
