SCHEDA ELETTRONICA
μpc
CONTATTO PULITO
(RICHIESTA SANITARIO)
SEGNANLE SONDA ACCUMULO
VALVOLA A 3 VIE
ANKI
SAF
SONDA ACCUMULO
SCHEDA ELETTRONICA
μpc
SEGNALE SONDA ACCUMULO
CONTATTO 230V
(PILOTAGGIO VALVOLA)
SONDA ACCUMULO
VALVOLA A 3 VIE
WRL
SAF
CONTATTO IN
DEVIAZIONE 230V
(PILOTAGGIO VALVOLA)
SERIALE
VMF-E5
* SISTEMA COMPATIBILE CON GLI ATTUALI MODELLI A CATALOGO
ANLI*/ANL/ANK/NRL/CL
SCHEDA ELETTRONICA
μpc
SONDA ACCUMULO
SAF
MOD485K
MODU485BL
VALVOLA A 3 VIE
UNITS VERSION SIZE
ANKI H 020-045
UNITS VERSION SIZE
WRL H 026-161
UNITS VERSION SIZE
ANL H 020-101
ANLI H 101
ANK all 205-150
NRK all 0090-0150
CL H 025-200
The following drawings are meant as an indication. As regards wiring please refer to the electrical drawings.

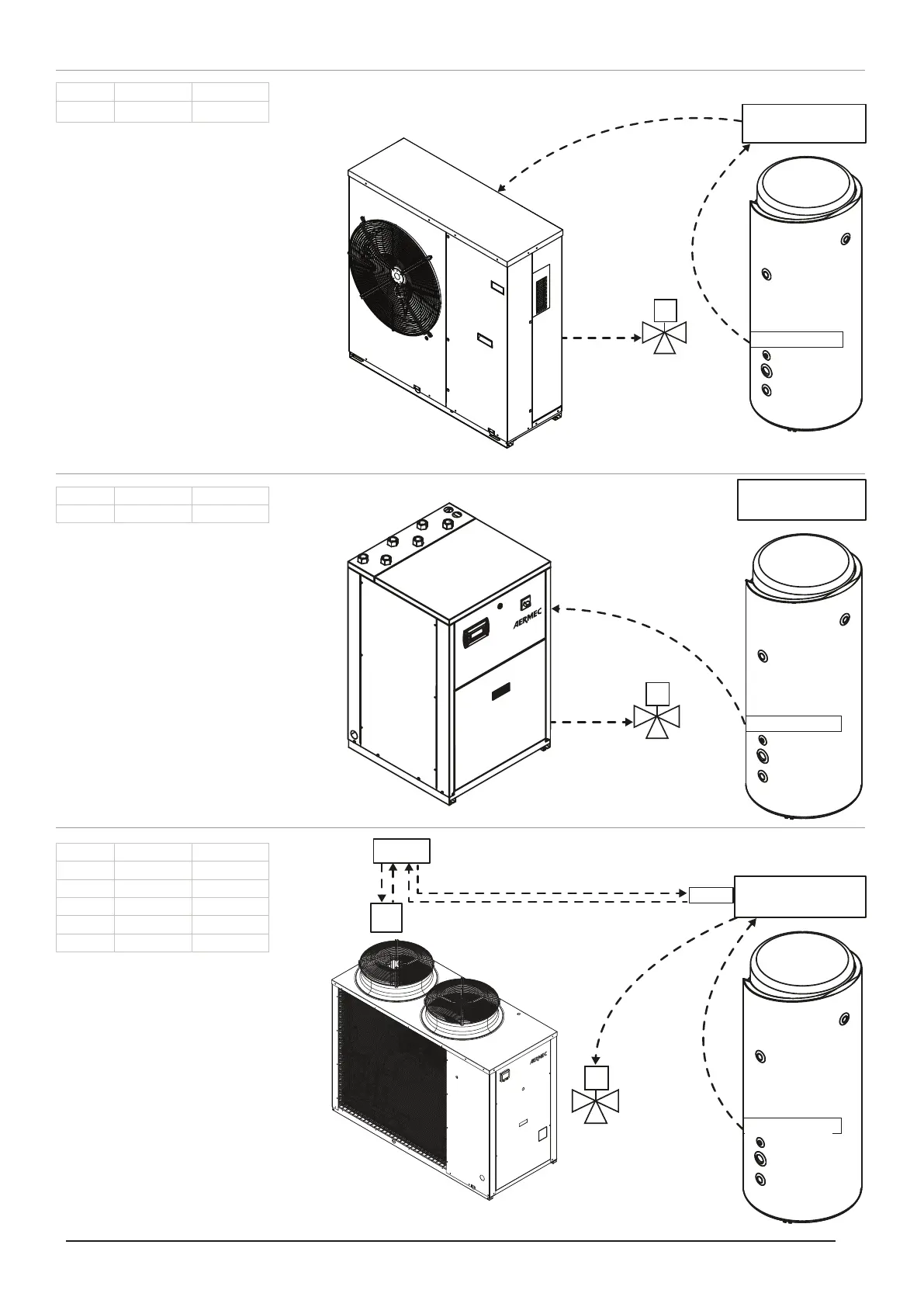

LINK LOGIC
The μpc board of the buer tank
reads the values of the buer tank
probe and provides a 24V signal to
the unit in order to request DHW.
Once the unit receives the signal, the
3-way valve is diverted to the DHW.
* SYSTEM COMPATIBLE WITH THE CURRENT MODELS IN THE CATALOG
CONTACT 230V
(PILOT VALVE)
CONTACT 230V
(PILOT VALVE)
230 V SWITCH (FOR VALVE
CONTROLLING)
ELECTRONIC BOARD
 μpc
ELECTRONIC BOARD
 μpc
ELECTRONIC BOARD
 μpc
POTENTIAL-FREE CONTACT
(REQUESTING DHW)
3-WAY VALVE
BUFFER TANK
BUFFER TANK PROBE SIGNAL
The μpc board of the unit reads the
values of the buer tank probe and
the 3-way valve is diverted to the
DHW.
3-WAY VALVE
3-WAY VALVE
SERIAL
SENSOR SIGNAL ACCUMULATION
BUFFER TANK
BUFFER TANK
* COMPATIBLE SYSTEM WITH THE CURRENT CATALOG MODELS
