Agilent InfinityLab LC Series RID User Manual 192
13 LAN Configuration
Manual Configuration
With Telnet
Whenever a TCP/IP connection to the module is possible (TCP/IP parameters set
by any method), the parameters may be altered by opening a Telnet session.
1
Open the system (DOS) prompt window by clicking on Windows
START
button and select
“Run...”
. Type “cmd” and press OK.
2
Type the following at the system (DOS) prompt:
•
c:\>telnet <IP address> or
•
c:\>telnet <host name>

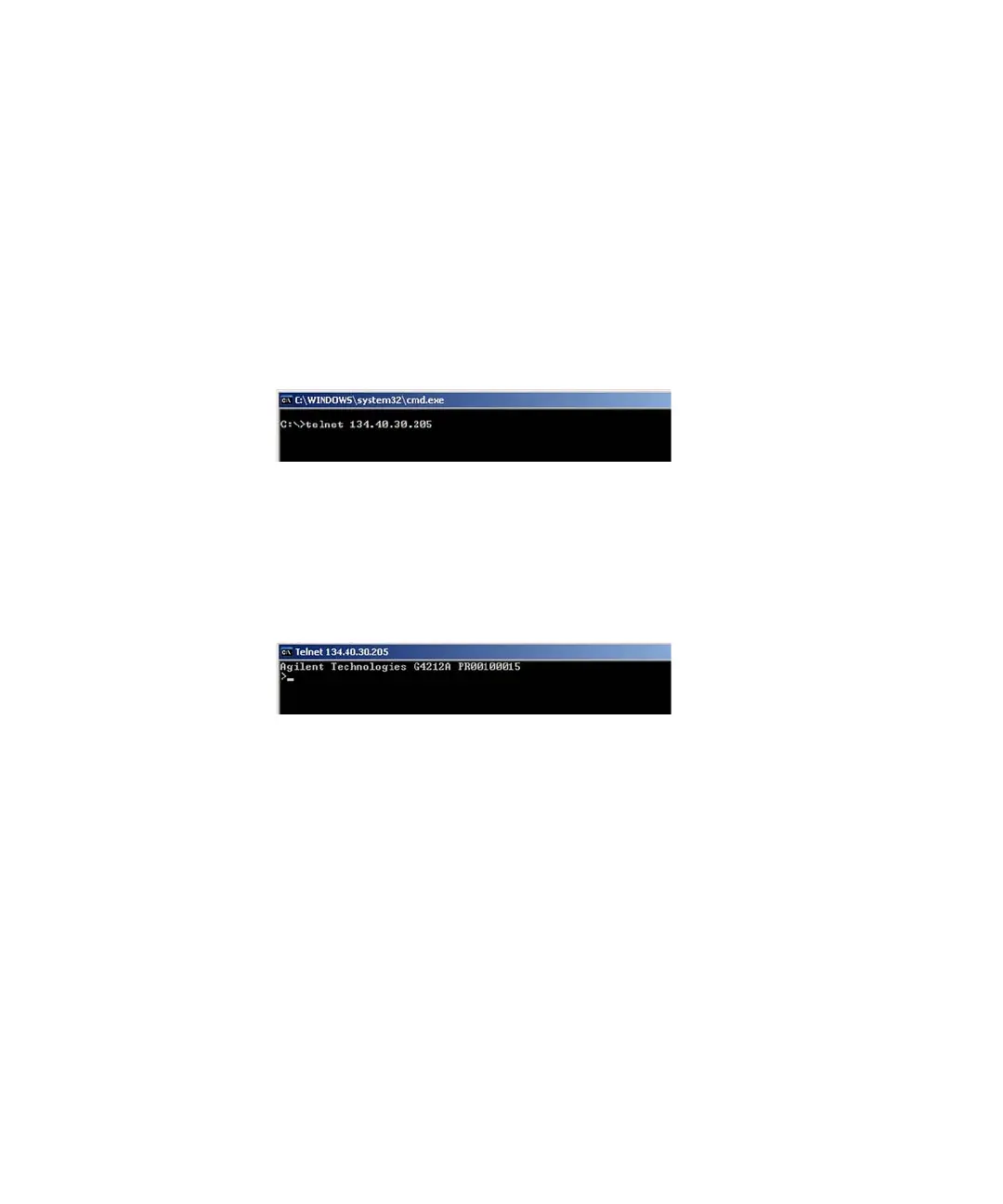

Figure 39 Telnet - Starting a session
where <IP address> may be the assigned address from a Bootp cycle, a
configuration session with the Handheld Controller, or the default IP address
(see “Configuration Switches” on page 185).
When the connection was established successfully, the module responds
with the following:
Figure 40 A connection to the module is made
