Agilent Technologies 16901A Service Guide

16901A Logic Analysis System Service Guide 3

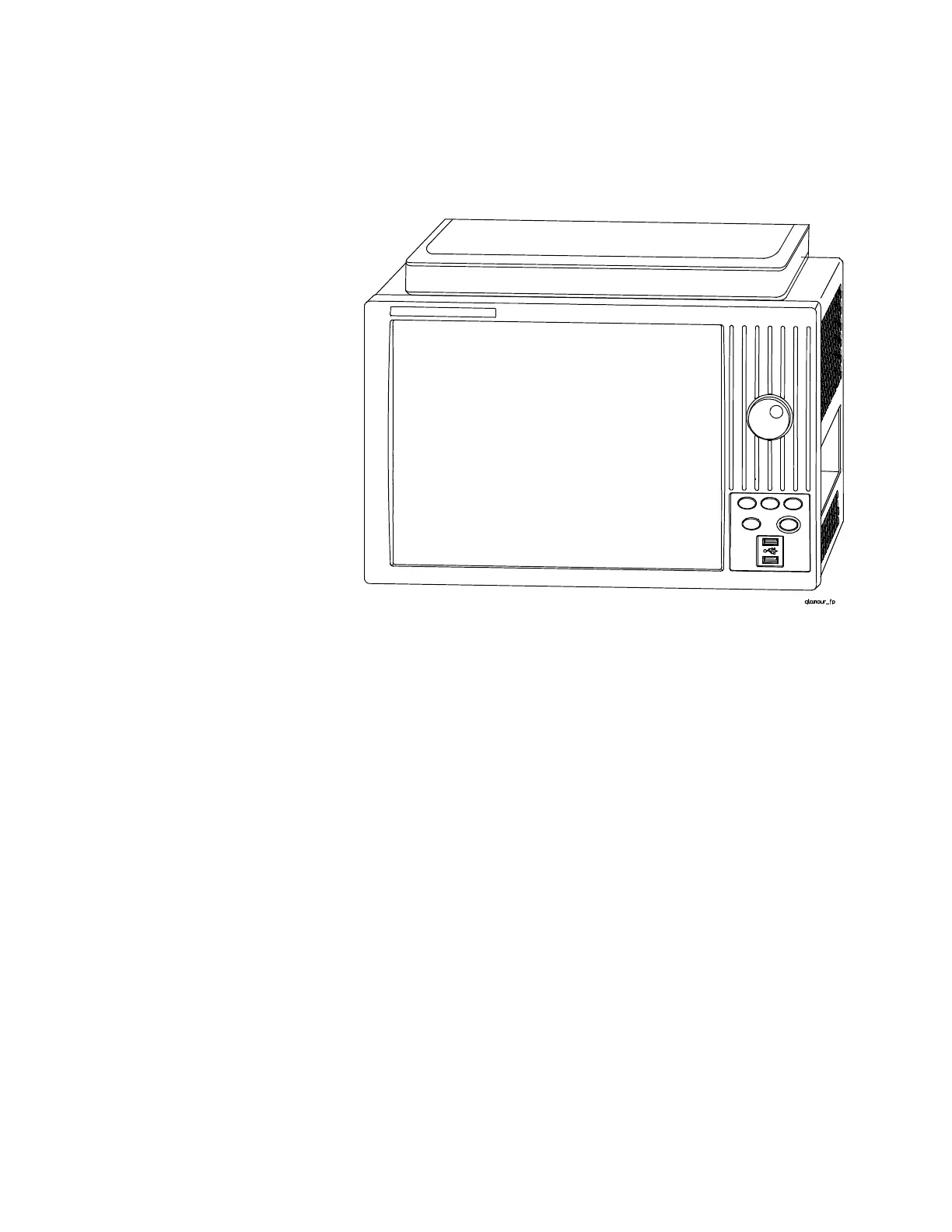

The Agilent 16901A Logic Analysis System—At a Glance
The Agilent Technologies 16901A logic analysis system is a
modular system.
Features
• Two slots for logic analyzers and other types of
measurement modules.
• Multiframe Pro for making time- correlated measurements
with a logic analysis system made up of multiple 16900A,
16901A, and 16902A frames.
• Built- in 15 inch TFT color touch screen LCD display,
1,024 x 768 (XGA) resolution.
• 250 GB hard disk drive (or external hard drive 16901A
Option 109).
• 10/100 Base- T LAN port.
• USB 2.0 ports (six total, two on front, four on back).
• One PCI expansion slot.
• One PCI Express x1 expansion slot.
• Windows® XP Professional operating system. Windows 7
operating system on logic analyzers with serial numbers
MY50370000 or higher.
• Agilent Logic Analyzer application which takes the
complexity out of making logic analyzer measurements.
You can perform all operations directly from one window.
