Replacing Assemblies 6
16901A Logic Analysis System Service Guide 63
To remove and replace the USB cables
1 Perform previous procedures:
• “To prepare the instrument for disassembly” on
page 46.
• “To remove and replace the cover” on page 50.
• “To remove and replace the front panel assembly” on
page 57.
• “To remove and replace the front panel bracket
assembly” on page 62.
2 Using a Torx T10 screwdriver, remove the 4 screws
securing the USB cables to the front panel bracket
assembly.
3 Reverse this procedure to replace the USB cables.

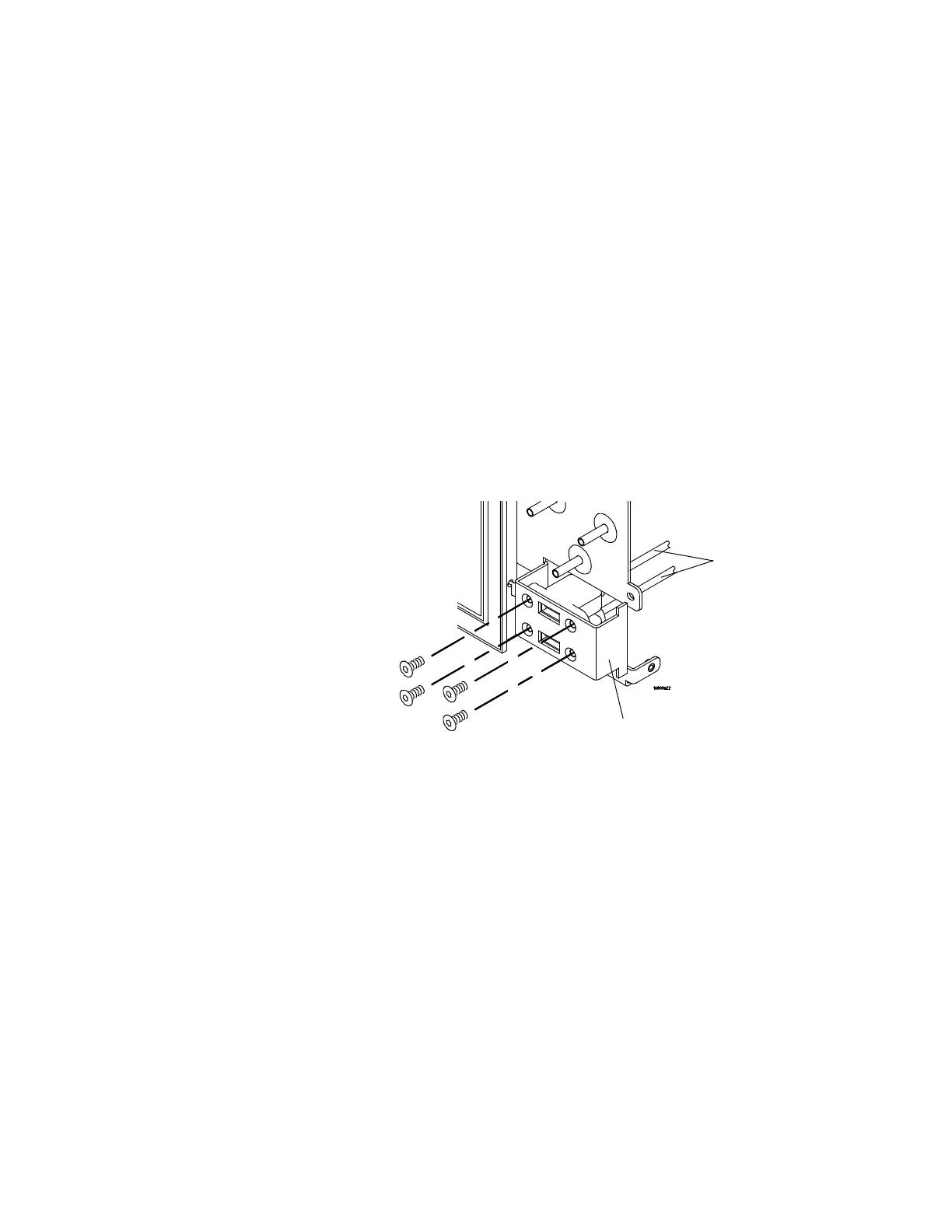

T-10
screws
Front panel bracket
USB
cables
