48 16901A Logic Analysis System Service Guide
6 Replacing Assemblies
To remove and replace optional modules or filler panels
The following procedure guides you through installing,
removing, or replacing measurement modules in the logic
analysis system frame. Information on connecting specific
multi- card measurement modules can be found in the
Installation Guide that came with your frame. Measurement
modules with different model numbers may not be connected
together in multi- card (Master/Expander) modules unless
stated otherwise. See also, the service guide that came with
your measurement module.
1 Perform previous procedures:
• “To prepare the instrument for disassembly” on
page 46
2 Using a 1/4- inch hex socket, loosen the thumb screws on
the modules or filler panels.

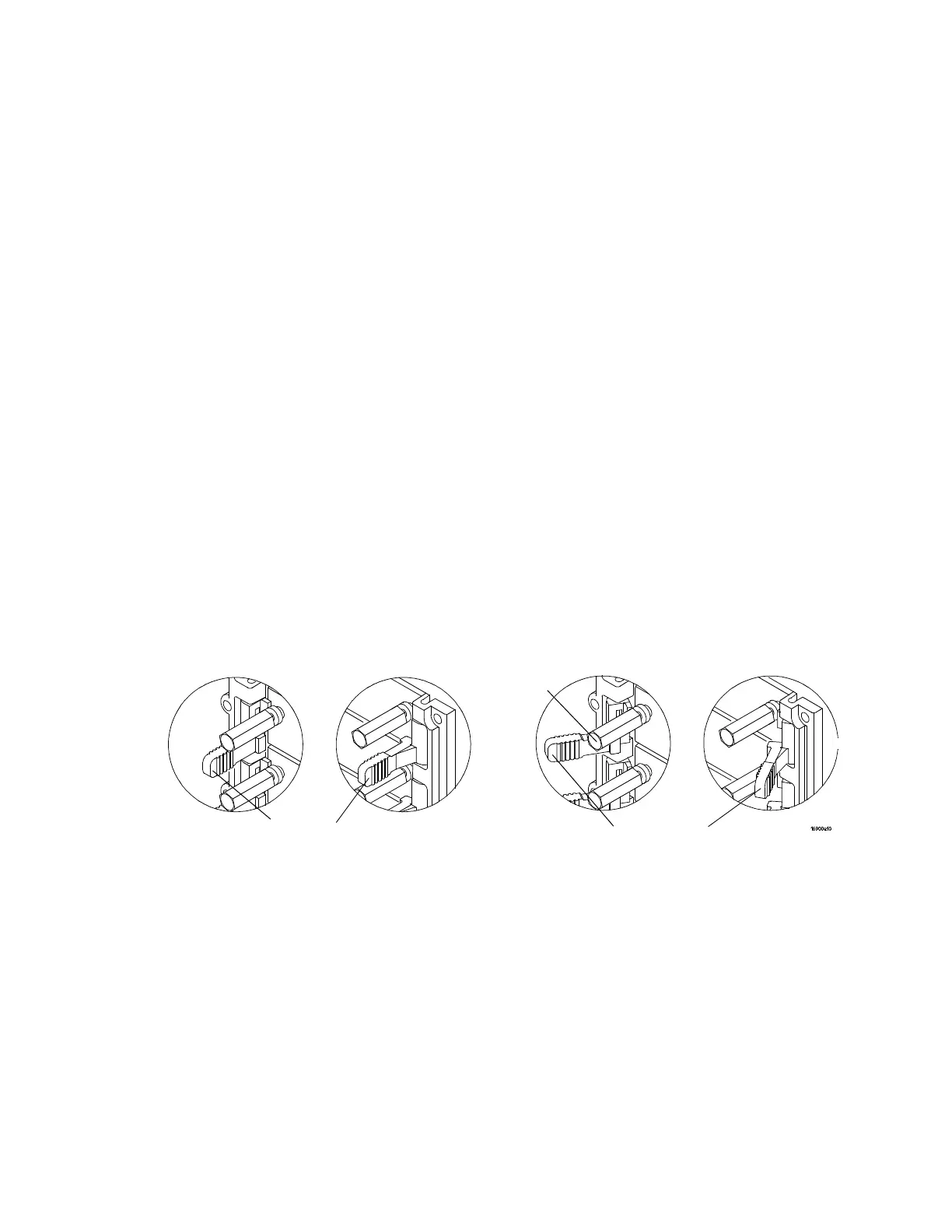

3 Rotate the ejector levers from the locked position to the
open position.
4 Ensure all ejectors are fully open and out of the way.
5 Remove filler panels or slide the modules out of the logic
analysis system frame.
A single- module configuration can be installed in any
available slot.
Locked position
Open position
Thumb screw
