Agilent Technologies 16901A Service Guide

Replacing Assemblies 6
16901A Logic Analysis System Service Guide 59
To remove and replace the backlight inverter board
1 Perform previous procedures:
• “To prepare the instrument for disassembly” on
page 46.
• “To remove and replace the cover” on page 50.
• “To remove and replace the front panel assembly” on
page 57.

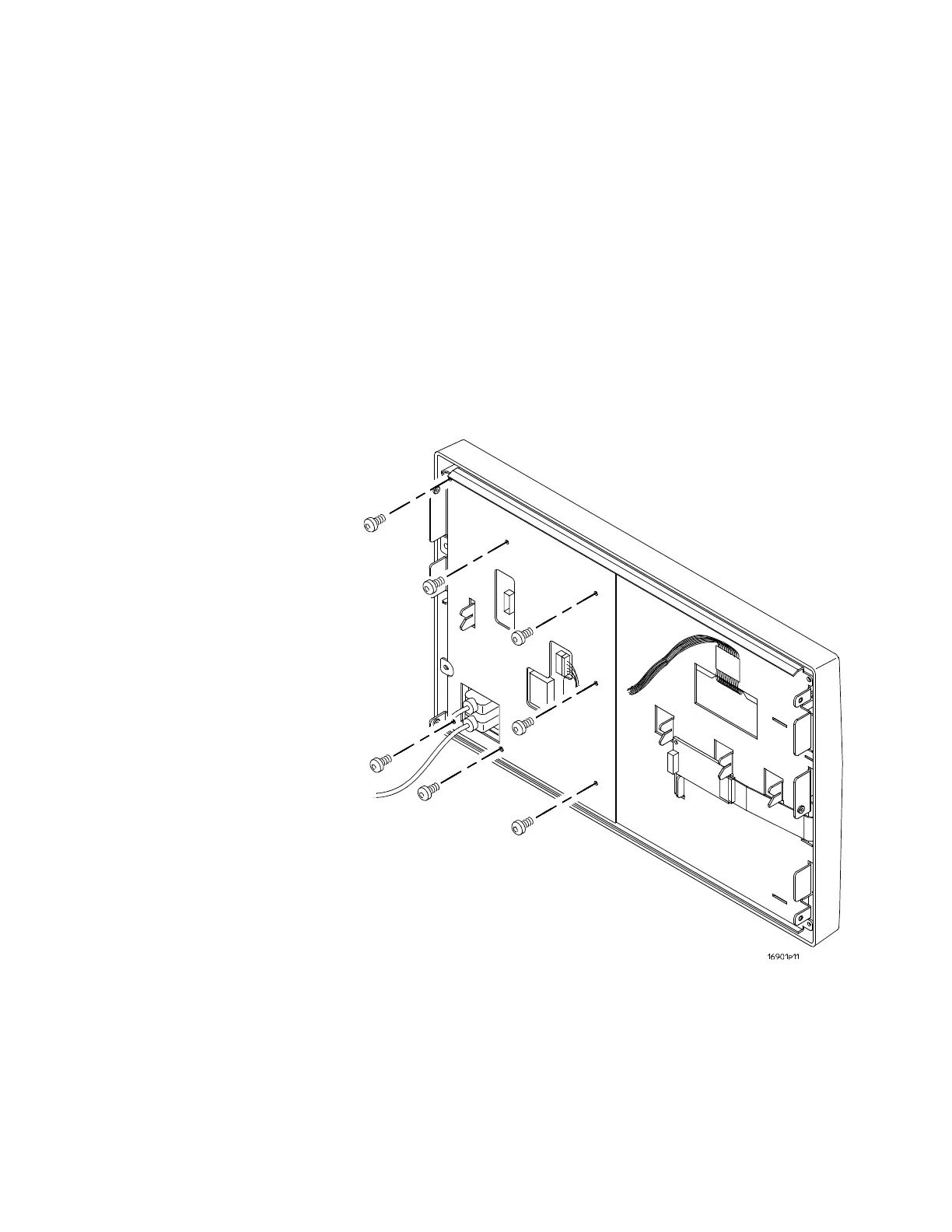

2 Using a Torx T10 screwdriver, remove the 7 screws
securing the front panel plate to the front panel.
T-10
screws
(7)
