62 16901A Logic Analysis System Service Guide
6 Replacing Assemblies
To remove and replace the front panel bracket assembly
1 Perform previous procedures:
• “To prepare the instrument for disassembly” on
page 46.
• “To remove and replace the cover” on page 50.
• “To remove and replace the front panel assembly” on
page 57.
2 Using a Torx T10 screwdriver, remove the 2 screws
securing the touch screen controller board to the front
panel bracket assembly.
3 Using a Torx T10 screwdriver, remove the 6 screws
securing the front panel bracket assembly to the front
panel.
4 Remove the bracket assembly.
5 Reverse this procedure to replace the front panel bracket
assembly.

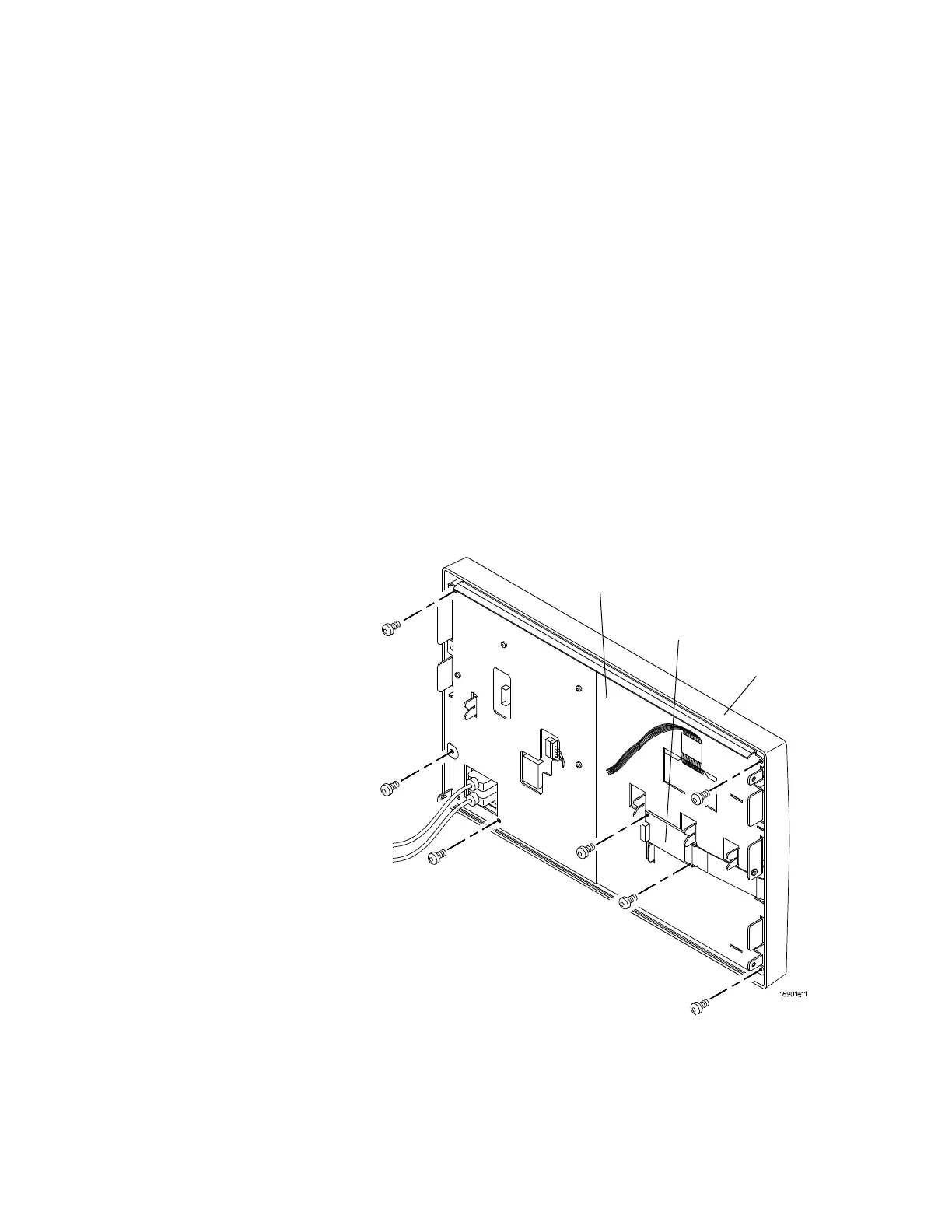

T-10
screws (8)
Front
panel
Front panel
bracket assembly
Touch screen
controller board
