Agilent Technologies 33500 Series User Manual

78
Chapter 2 Front-Panel Menu Operation
To Set up an Arbitrary Waveform
2
Edit Waveform Characteristics

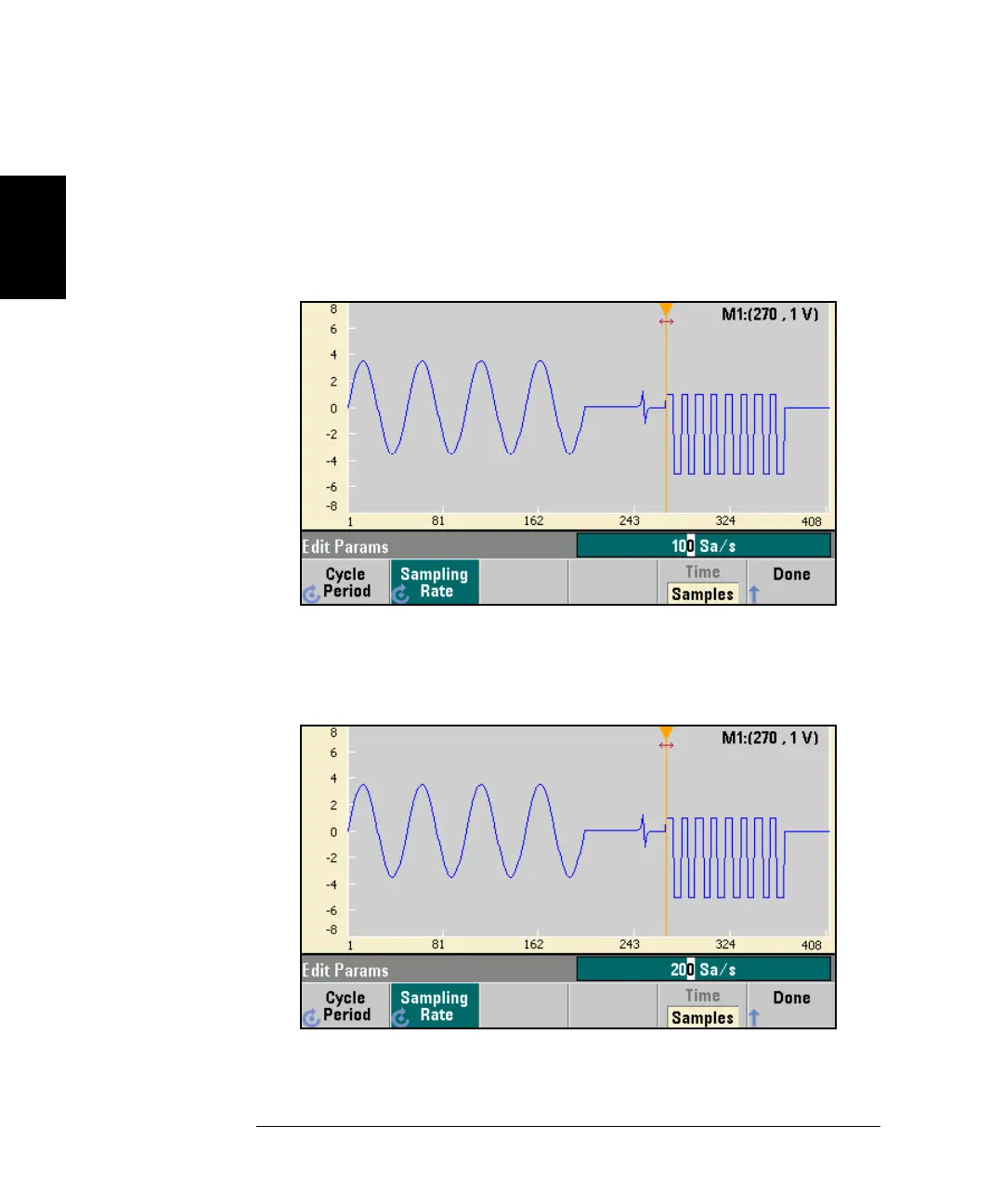

1Press Edit Params and then set the Sampling Rate to 100 Sa/s. Press
Cycle Period and notice that it has been set to 4.08 seconds. This is
because you have 408 sample points in the waveform, and the
sample rate is 100 Sa/s.
2Change the Cycle Period to 2.04 seconds and then press the
Sampling Rate softkey. It will now be set to 200 Sa/s in order to
play the 408 point waveform in 2.04 seconds.
