77
Chapter 2 Front-Panel Menu Operation
To Set up an Arbitrary Waveform
4
2

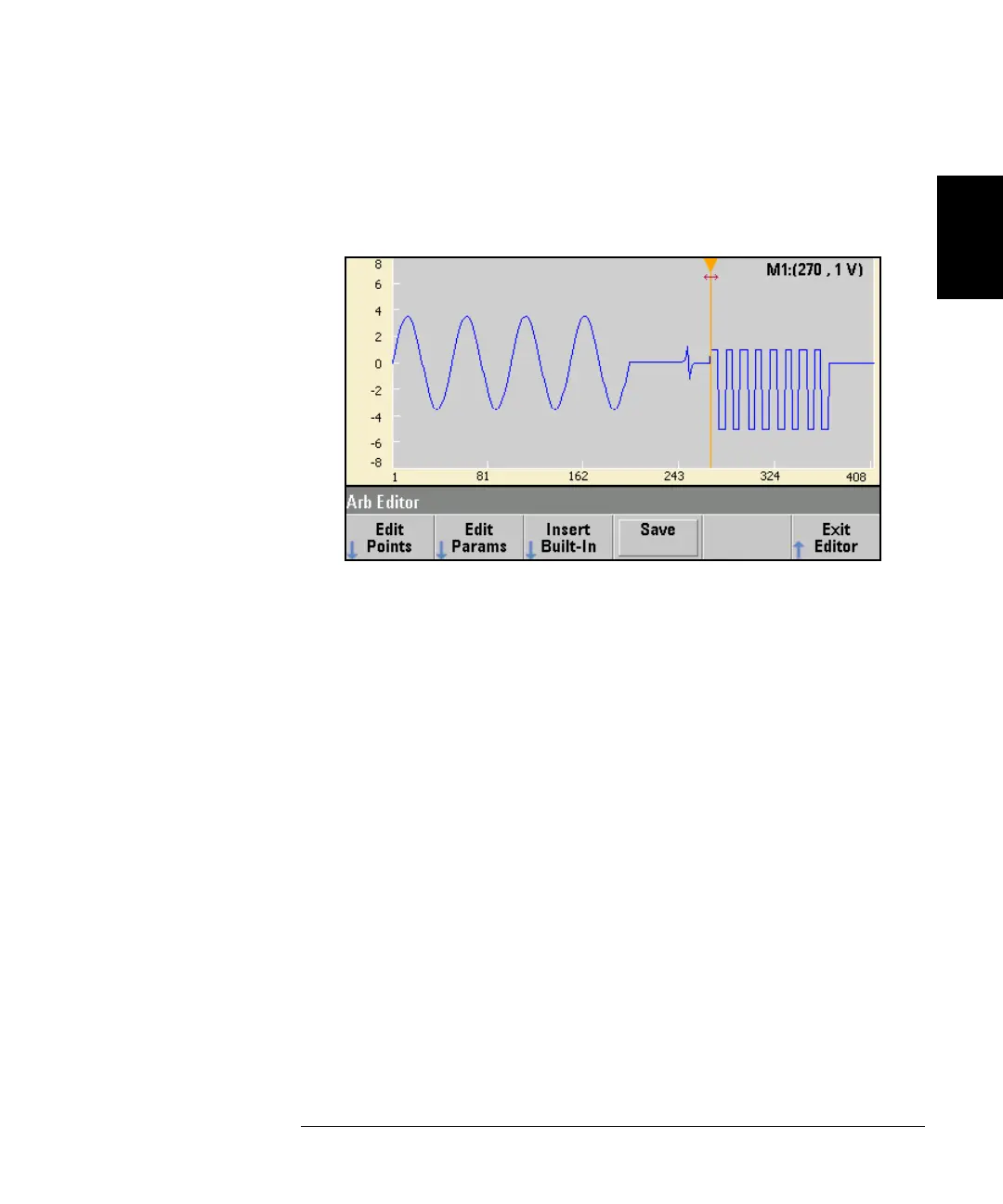

8Press Choose Wave, select Square and then press OK. Set the
Amplitude to 3 V, the Offset to -2 V, the Cycles to 8, and the
Points to 100. Press OK. Notice that the 8 square wave cycles
have been inserted, beginning at the marker. Press Done.
