Agilent Technologies 33500 Series User Manual

87
Chapter 2 Front-Panel Menu Operation
To Set up an Arbitrary Waveform
4
2

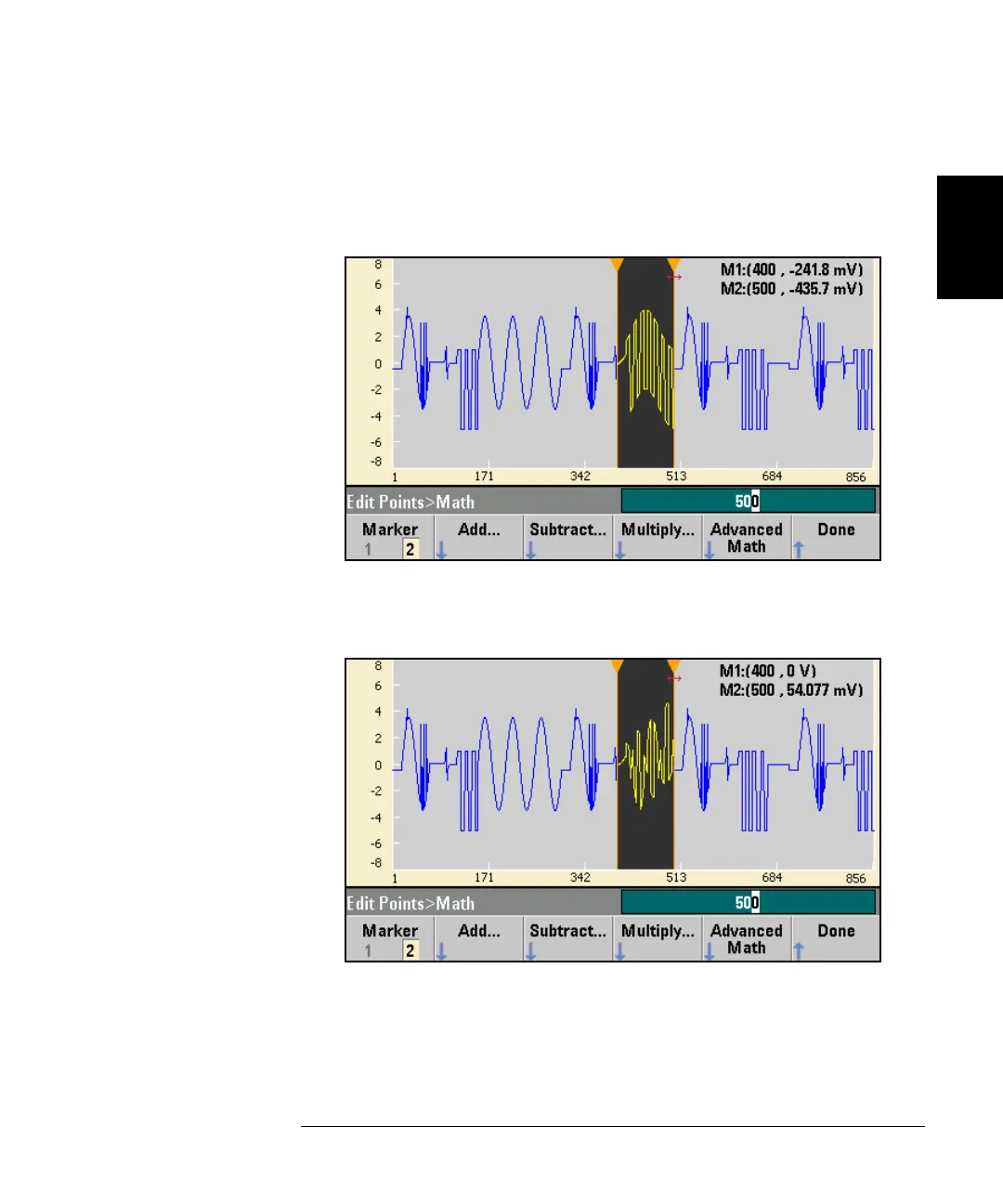

2Press Add, then select Haversine and OK. Set the Amplitude to 3V,
the Offset to 0 V, and press OK. Notice that the highlighted
section now rises in the middle as a result of the haversine
addition.
3Now press Multiply and select the Sine wave (press OK). Set the
Cycles to 2 and press OK.
