158
Chapter 6 Service an
d Repair
Disassembly
6
General Disassembly Procedure
1
Turn off the power. Rem
ove a
ll cable
s from the instrument.
2

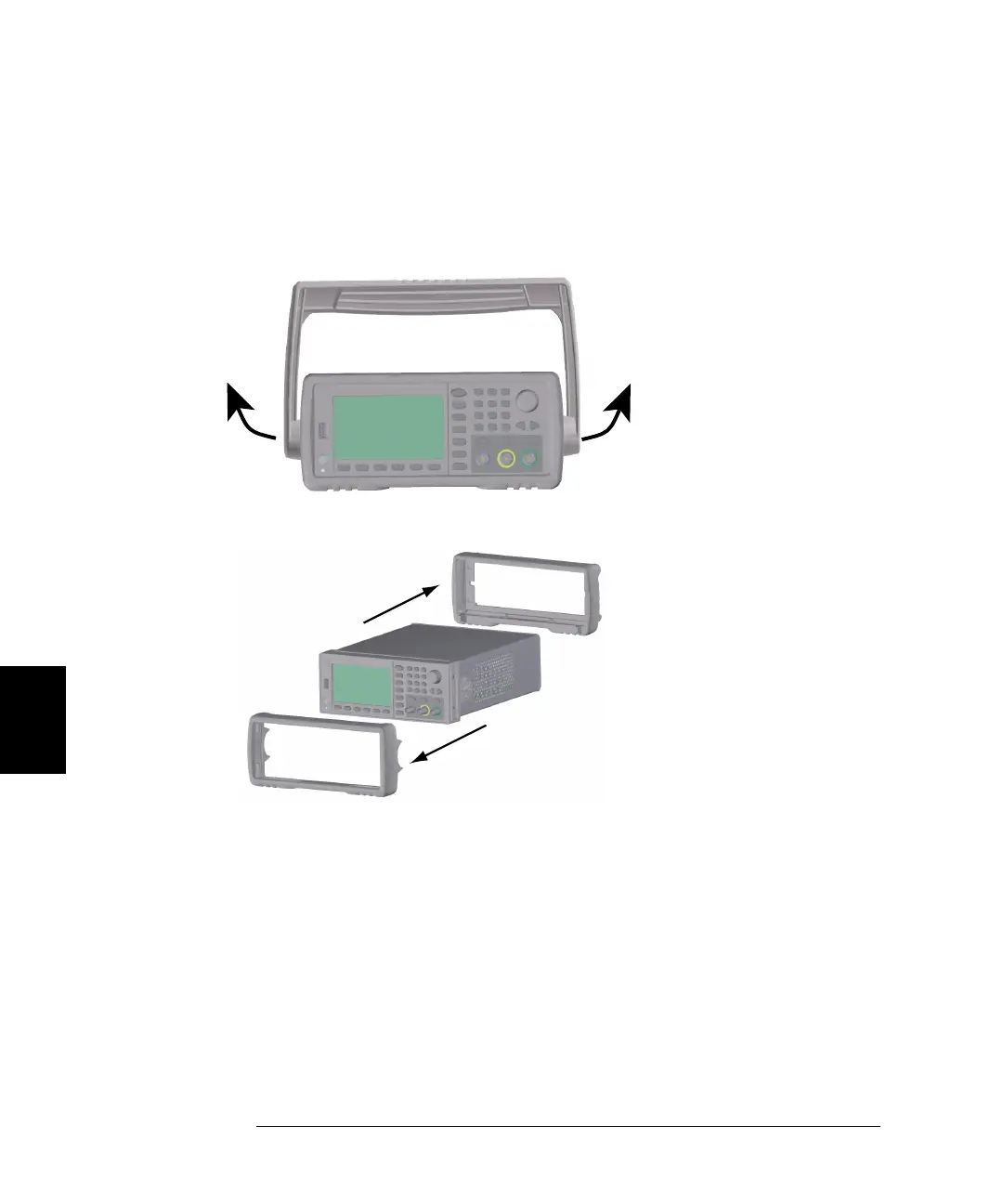

Rotate the handle upright and pull off.
3
Pull off the instrument bumpers.
157
159
