Agilent Technologies 33522A Service Guide

33
Chapter 2 Quick Start
To Set the Output Amplitude
4
2

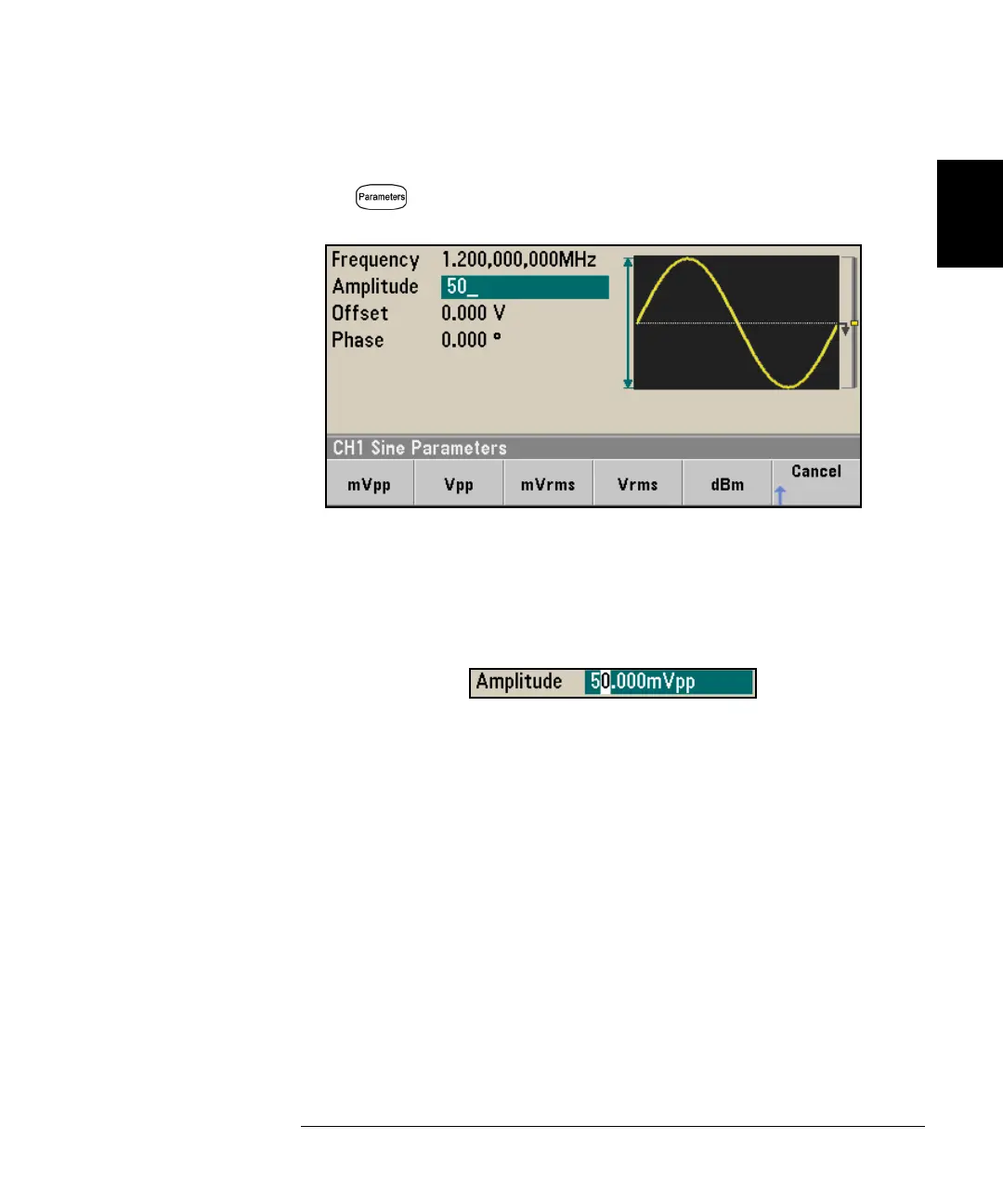

2 Enter the magnitude of the desired amplitude.
Press
and then press Amplitude . Using the numeric keypad,
enter the number 50.
3 Select the desired units.
Press the softkey that corresponds to the desired units. When you select
the units, the waveform generator outputs the waveform with the
displayed
amplitude (if the output is enabled). For this example, press
mVpp.
Note: Y
ou can also enter the desired value using the knob and cursor
keys. If you do so, you do not need to use a units softkey.
