Agilent Technologies 34970A Service Guide

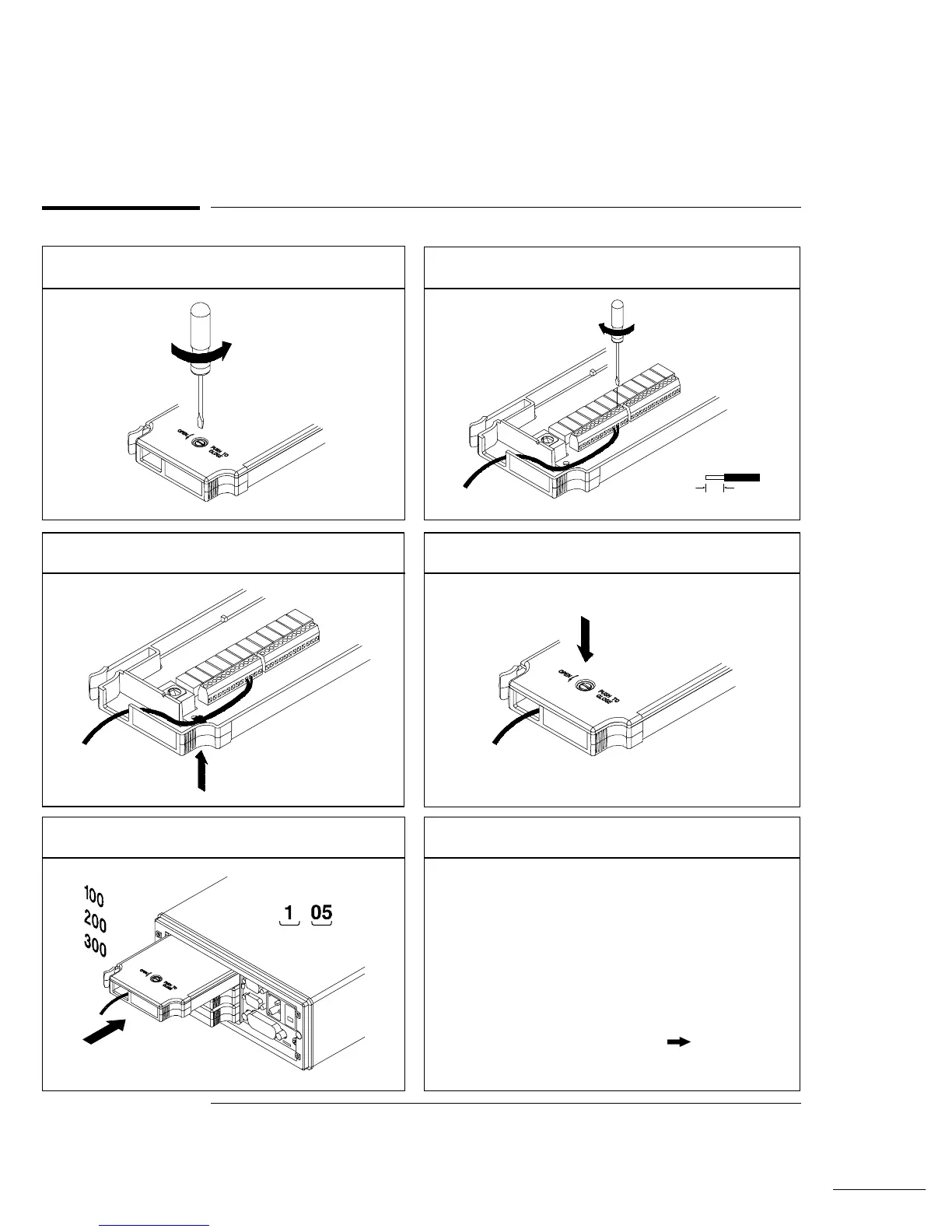

To Connect Wiring to a Module
6 mm
20 AWG
Typical
Channel Number:
Slot Channel
5 Install the module into mainframe. Wiring Hints...
• For detailed information on each module,
refer to the 34970A User’s Guide.
• To reduce wear on the internal DMM relays,
wire like functions on adjacent channels.
• Use shielded twisted pair
PTFE
â
insulated
cables to reduce settling and noise errors.
• The diagrams on the next page show how to
connect wiring to a multiplexer module for
each measurement function.
1 Remove the module cover.
2 Connect wiring to the screw terminals.
4 Replace the module cover.
Cable Tie Wrap
(optional)
3 Route wiring through strain relief.
Chapter 2 Quick Start
To Connect Wiring to a Module
36
