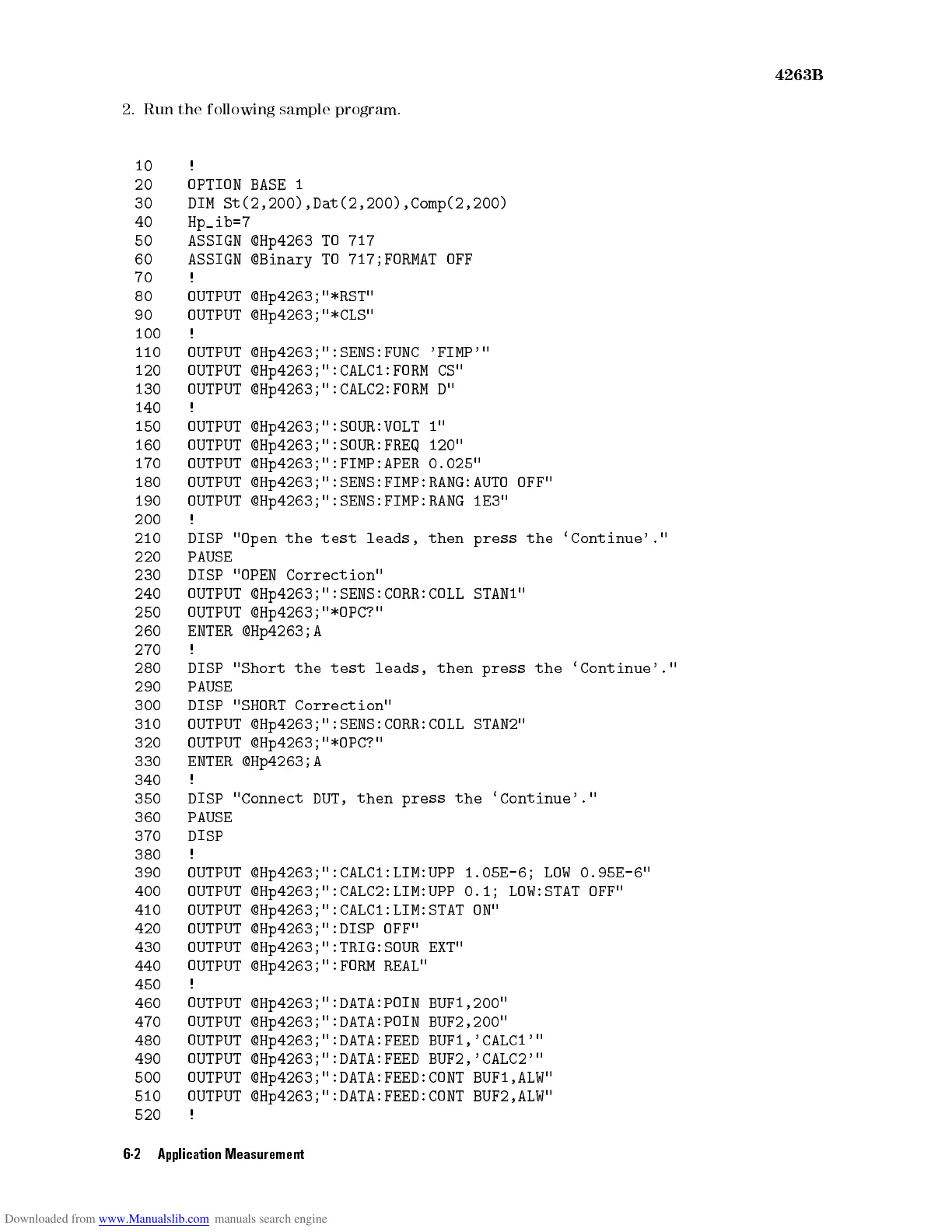

2. Run
the following
sample program.
10 !
20 OPTION
BASE 1
30 DIM
St(2,200),Dat(2,200),Comp(2,200)
40 Hp_ib=7
50 ASSIGN
@Hp4263 TO
717
60 ASSIGN
@Binary TO
717;FORMAT OFF
70 !
80 OUTPUT
@Hp4263;"*RST"
90 OUTPUT
@Hp4263;"*CLS"
100 !
110 OUTPUT
@Hp4263;":SENS:FUNC 'FIMP'"
120
OUTPUT
@Hp4263;":CALC1:FORM
CS"
130
OUTPUT
@Hp4263;":CALC2:FORM
D"
140 !
150
OUTPUT
@Hp4263;":SOUR:VOLT
1"
160
OUTPUT @Hp4263;":SOUR:FREQ
120"
170 OUTPUT
@Hp4263;":FIMP:APER 0.025"
180 OUTPUT
@Hp4263;":SENS:FIMP:RANG:AUTO OFF"
190 OUTPUT
@Hp4263;":SENS:FIMP:RANG 1E3"
200 !
210 DISP
"Open the
test
leads,
then
press
the
`Continue'."
220 PAUSE
230
DISP
"OPEN
Correction"
240
OUTPUT
@Hp4263;":SENS:CORR:COLL
STAN1"
250
OUTPUT
@Hp4263;"*OPC?"
260
ENTER
@Hp4263;A
270
!
280
DISP
"Short
the
test
leads,
then
press
the
`Continue'."
290
PAUSE
300
DISP
"SHORT
Correction"
310
OUTPUT
@Hp4263;":SENS:CORR:COLL
STAN2"
320
OUTPUT
@Hp4263;"*OPC?"
330
ENTER
@Hp4263;A
340
!
350
DISP
"Connect
DUT,
then
press the
`Continue'."
360
PAUSE
370
DISP
380 !
390 OUTPUT @Hp4263;":CALC1:LIM:UPP 1.05E-6; LOW 0.95E-6"
400 OUTPUT @Hp4263;":CALC2:LIM:UPP 0.1; LOW:STAT OFF"
410 OUTPUT @Hp4263;":CALC1:LIM:STAT ON"
420 OUTPUT @Hp4263;":DISP OFF"
430 OUTPUT @Hp4263;":TRIG:SOUR EXT"
440 OUTPUT
@Hp4263;":FORM REAL"
450 !
460 OUTPUT @Hp4263;":DATA:POIN BUF1,200"
470 OUTPUT @Hp4263;":DATA:POIN BUF2,200"
480 OUTPUT @Hp4263;":DATA:FEED BUF1,'CALC1'"
490 OUTPUT @Hp4263;":DATA:FEED BUF2,'CALC2'"
500 OUTPUT @Hp4263;":DATA:FEED:CONT BUF1,ALW"
510 OUTPUT @Hp4263;":DATA:FEED:CONT BUF2,ALW"
520 !
6-2 Application Measurement
