4263B

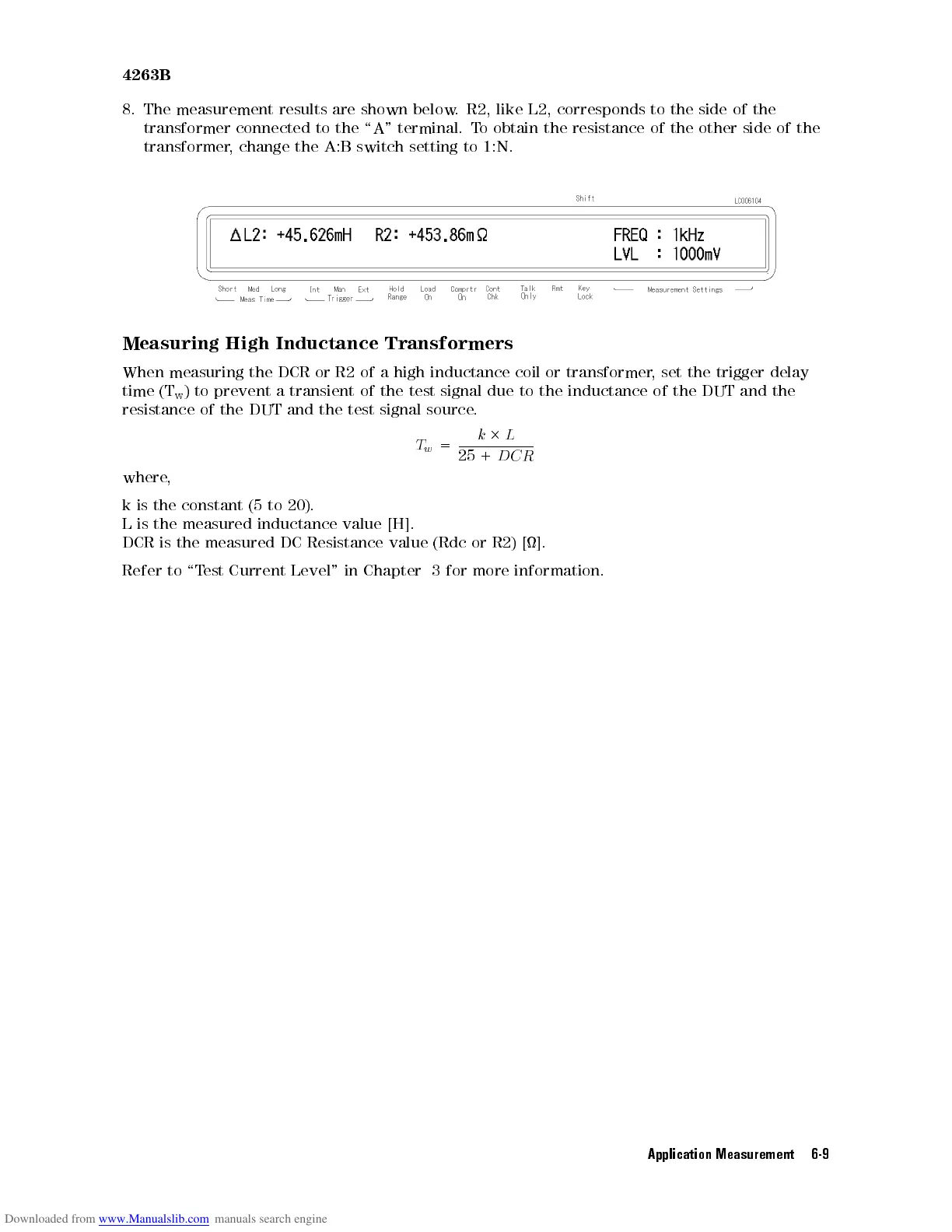

8. The
measurement results
are shown
below.
R2, like
L2,
corresponds
to
the
side
of
the
transformer connected
to the
\A" terminal.
To
obtain the
resistance
of
the
other
side
of
the
transformer,
change the
A:B switch
setting
to
1:N.
Measuring
High
Inductance
Transformers
When
measuring
the
DCR
or
R2
of
a
high
inductance
coil
or
transformer
,
set
the
trigger
delay
time
(T
w
)
to
prevent
a
transient
of
the
test
signal
due
to
the
inductance
of
the
DUT
and
the
resistance
of
the
DUT
and
the
test
signal
source
.
T
w
=
k
2
L
25
+
D
C
R
where
,
kis
the
constant
(5
to
20).
L
is
the
measured
inductance
value
[H].
DCR
is
the
measured
DC
Resistance
value
(Rdc
or
R2)
[].
Refer
to
\T
est
Current
Level"
in
Chapter
3
for
more
information.
Application Measurement 6-9
