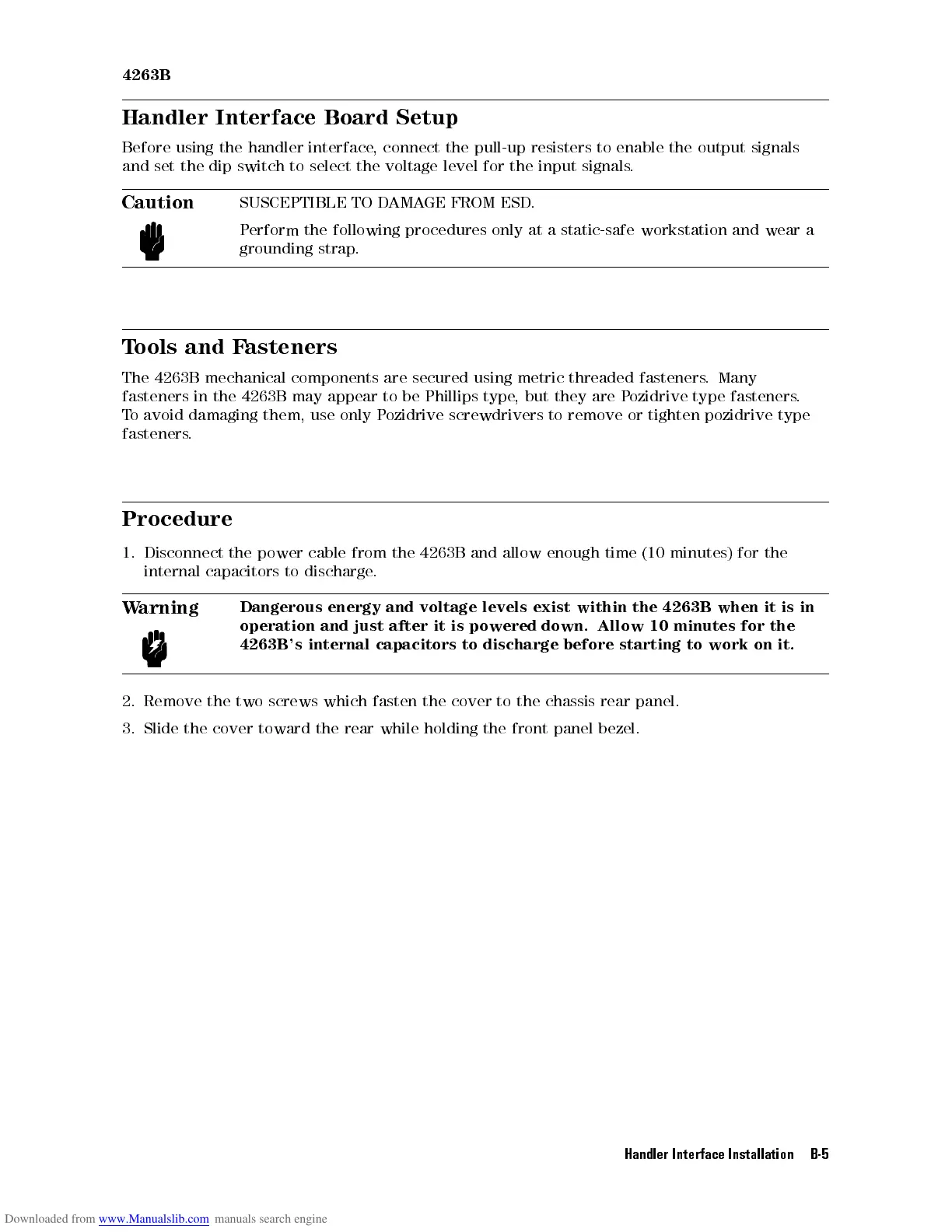

Agilent Technologies 4263B User Manual

4263B
Handler Interface
Board Setup
Before
using
the
handler
interface,
connect the
pull-up resisters
to enable
the output
signals
and
set
the
dip
switch to
select the
voltage level
for the
input signals
.
Caution
SUSCEPTIBLE TO
DAMA
GE FROM
ESD
.
P
erform
the
following
procedures
only
at
a
static-safe
workstation
and
wear
a
grounding
strap
.
T
ools
and
F
asteners
The
4263B mechanical
components are
secured
using
metric
threaded
fasteners
.
Many
fasteners
in the
4263B may
appear
to
be
Phillips
type
,
but
they
are
P
ozidrive
type
fasteners
.
T
o avoid
damaging them,
use
only
P
ozidrive
screwdrivers
to
remove
or
tighten
pozidrive
type
fasteners
.
Procedure
1.
Disconnect
the
power
cable
from
the
4263B
and
allow
enough
time
(10 minutes)
for the
internal
capacitors
to
discharge
.
W
arning
Dangerous
energy
and
voltage
levels
exist
within
the
4263B when
it
is
in
operation
and
just
after
it
is
powered
down.
Allow
10 minutes
for
the
4263B
's
internal
capacitors
to
discharge
before
starting
to
work on
it.
2. Remove
the two
screws
which
fasten
the
cover
to
the
chassis
rear
panel.
3.
Slide
the
cover
toward
the
rear
while
holding
the
front
panel
bezel.
Handler Interface Installation B-5
