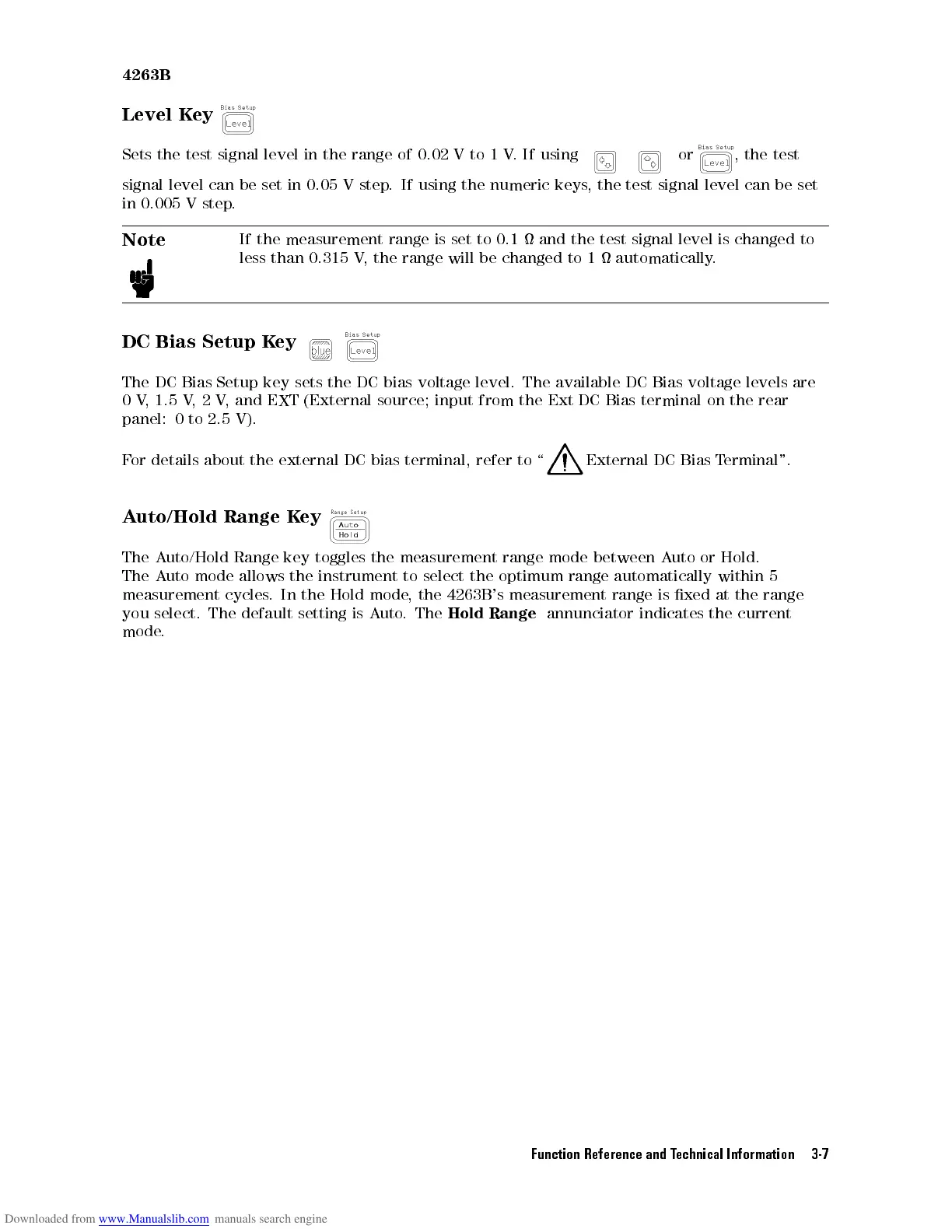

4263B
Level
K
ey
Sets
the
test
signal
level
in the
range of
0.02 V
to 1
V.
If using
or ,
the
test
signal
level
can
be
set in
0.05 V
step.
If using
the numeric
keys,
the test
signal
level
can
be
set
in 0.005
Vstep
.
Note
If
the
measurement
range
is
set
to
0.1

and
the
test
signal
level
is
changed
to
less
than
0.315
V
,
the
range
will
be
changed
to
1

automatically
.
DC Bias
Setup K
ey
The
DC Bias
Setup
key
sets
the
DC
bias
voltage
level.
The
available
DC
Bias
voltage
levels
are
0
V
,
1.5
V
,
2
V
,
and
EXT
(External
source;
input
from
the
Ext
DC
Bias terminal
on the
rear
panel:
0
to
2.5
V).
F
or
details
about
the
external
DC
bias
terminal,
refer
to
\
External
DC
Bias
T
erminal".
A
uto/Hold Range
Key
The
A
uto/Hold
Range
key
toggles
the
measurement
range
mode
between
A
uto
or
Hold.
The
A
uto
mode
allows
the
instrument
to
select
the
optimum
range
automatically
within
5
measurement
cycles
.
In
the
Hold
mode
,
the
4263B
's
measurement
range
is
xed
at
the
range
you
select.
The
default
setting
is
A
uto
.
The
Hold
Range
annunciator
indicates
the
current
mode
.
Function Reference and Technical Information 3-7
