4263B
Handler
Interface
The
handler
interface
is
used
to
synchronize
timing
with
an
external handler
.
Before
using
the
handler
interface
,
you must
connect pull-up
resisters to
enable the
output
signals
and
set
the
dip
switch
to select
the voltage
level to
match the
input signals
.Refer
to
Appendix
B
for
these
procedures
.
Specication
Output
signal:
Negative
TRUE,
open
collector
, opto-isolated
Decision
output:
Primary
parameter
comparator:
High
(HI),
In
(IN), Low
(LO)
Secondary
parameter
comparator:
High
(HI), In
(IN), Low
(LO)
DUT
and
test
electrode's
contact failed
(N.C.).
Index:
Analog
measurement
complete
Measurement
complete:
Full
measurement
complete
Alarm:
Notication
that
a
momentary
power
failure
or
an error
was
detected.
Input
Signal:
Opto-isolated
Keylock:
Front
panel
keyboard
lockout
External
Trigger:
Pulse
width

1

s
Note
The
comparator
output
signals
High,
In,
Low
,
and
the
control
signals
/INDEX,
/EOM
are
available
when
the
comparator
function
is
ON.
And
the
contact
check
output
signal
N.C.
is
available
when
both
the
comparator
and
contact
check
functions
are
ON.

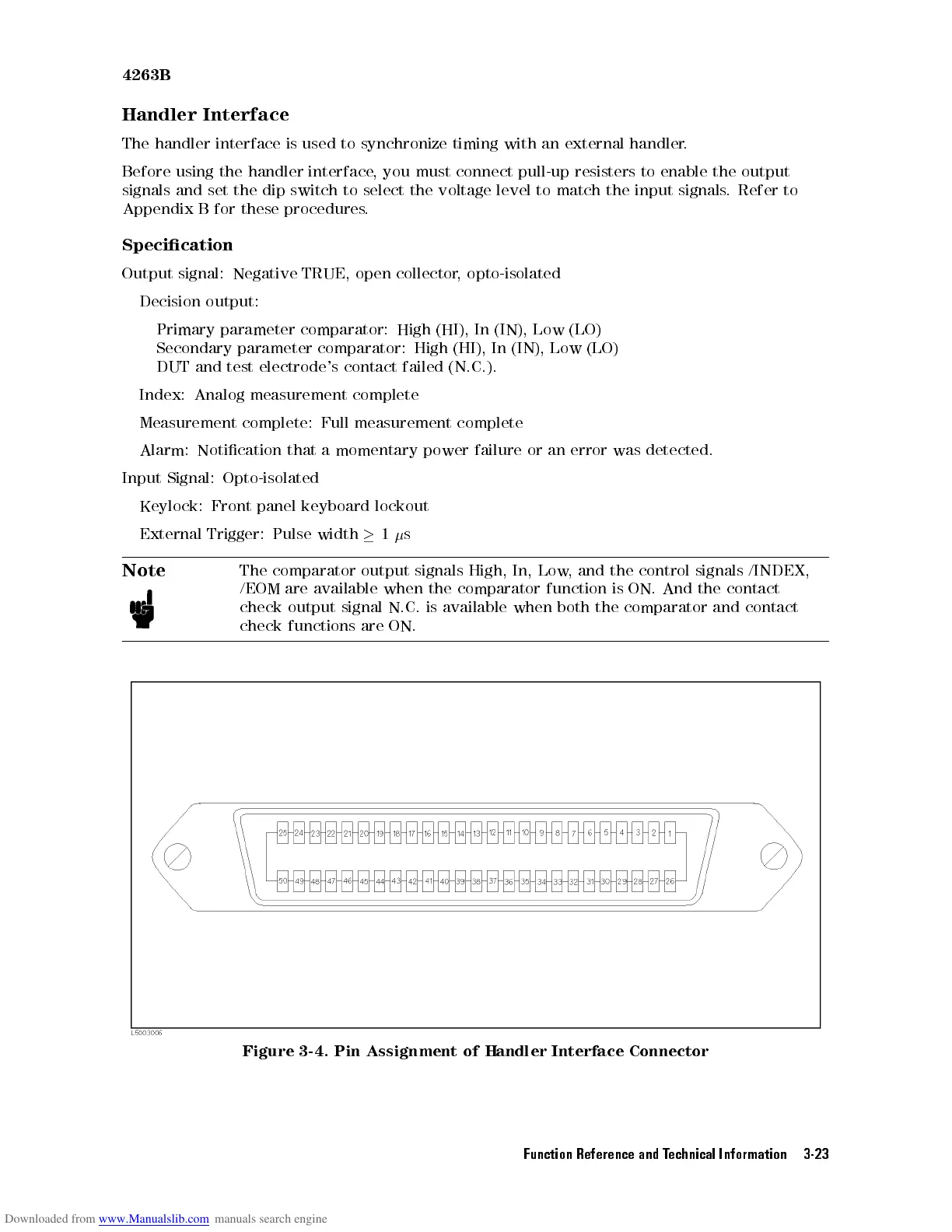

Figure 3-4. Pin Assignment of Handler Interface Connector
Function Reference and Technical Information 3-23
