4263B

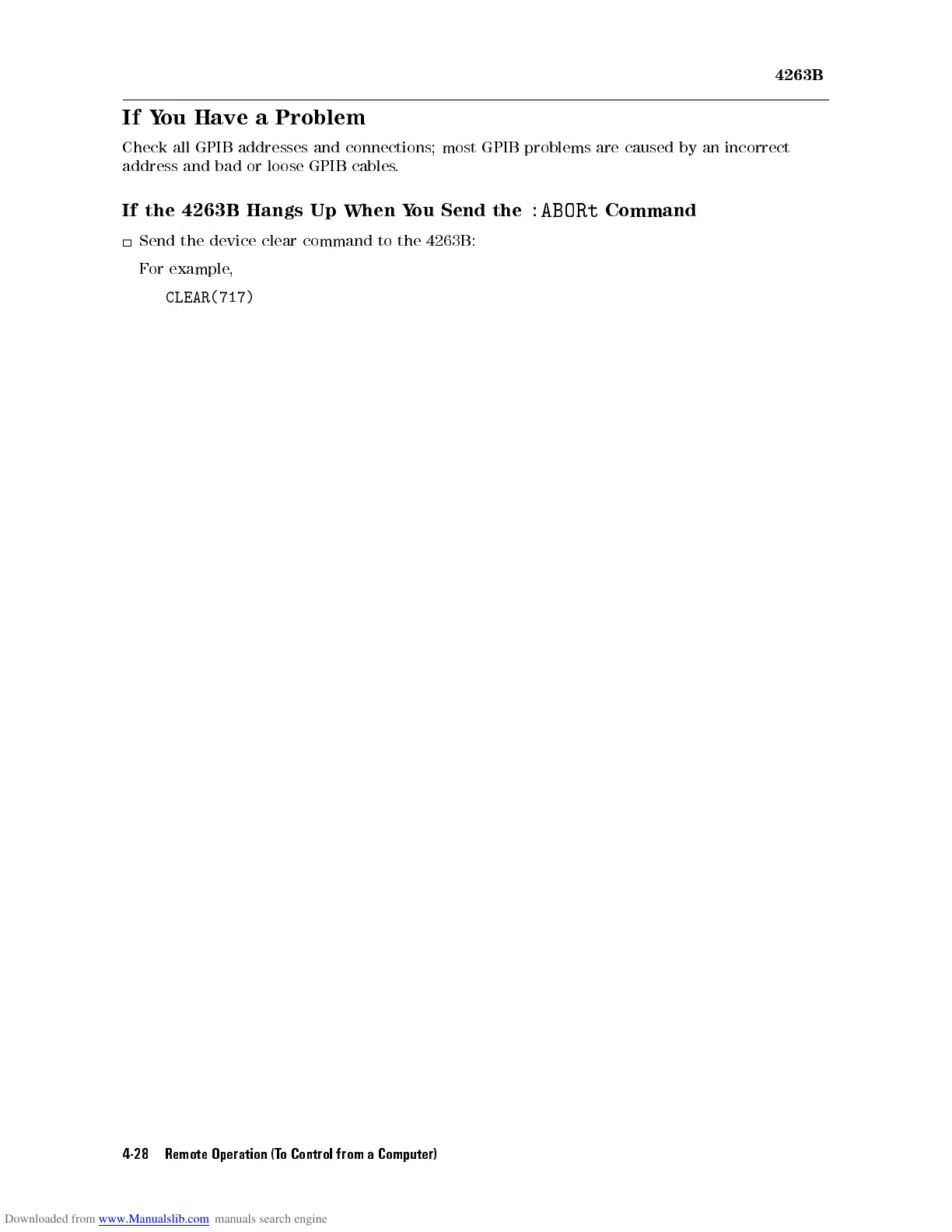

If Y

ou Have

a Problem

Check

all

GPIB

addresses

and connections;

most GPIB

problems are

caused by

an incorrect

address

and

bad

loose GPIB

cables.

If the

4263B

Hangs

When

Send

the

:ABORt

Command

Send

the

device

clear

command

the

4263B

example

CLEAR(717)

4-28 Remote Operation (To Control from a Computer)
