4263B

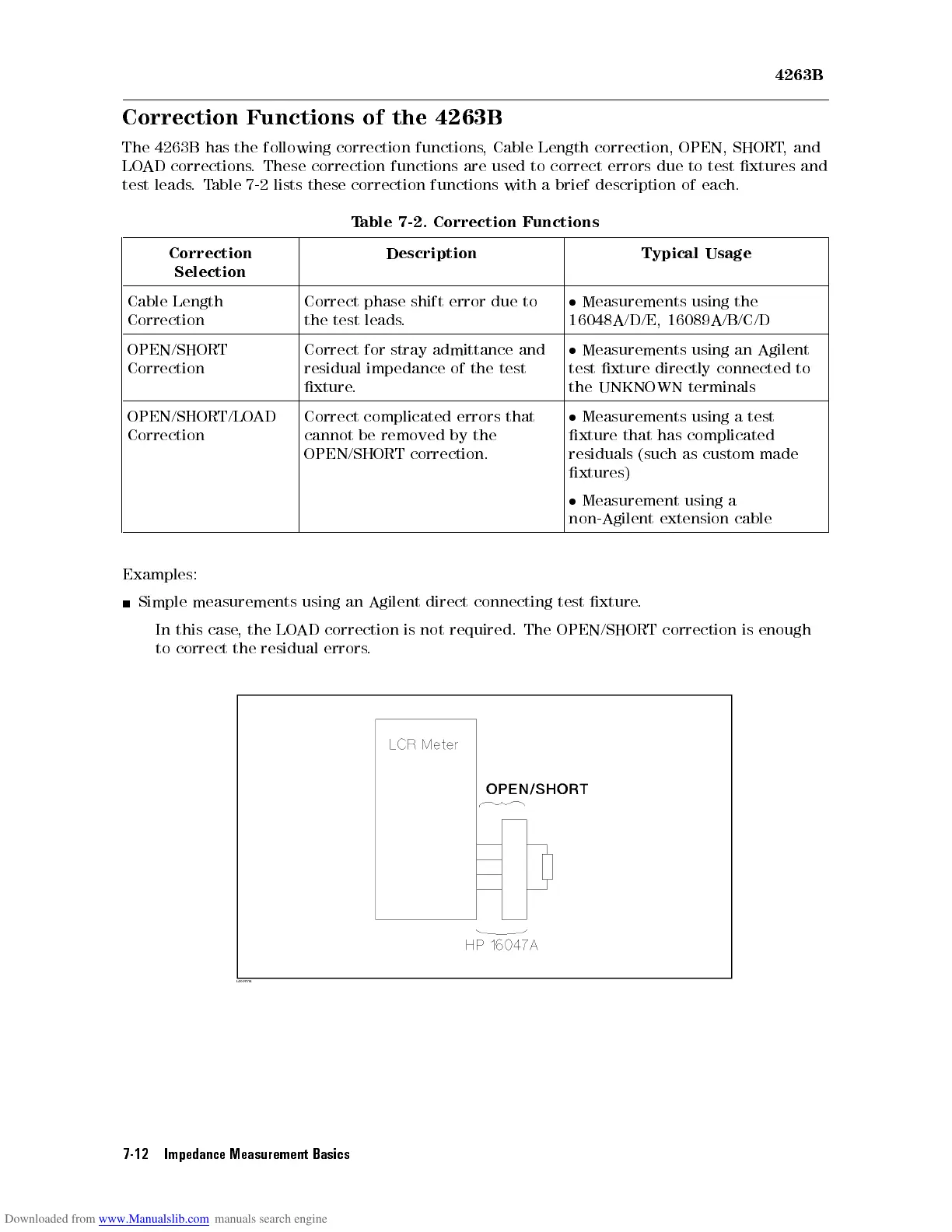

Correction Functions
of the
4263B
The
4263B
has
the
following correction
functions,
Cable Length
correction, OPEN,
SHORT,
and
LO
AD
corrections
.
These correction
functions are
used to
correct errors
due to
test xtures
and
test
leads
.
T
able 7-2
lists these
correction functions
with a
brief description
of each.
T
able
7-2.
Correction
Functions
Correction
Selection
Description Typical
Usage
Cable
Length
Correction
Correct
phase
shift
error
due
to
the
test
leads
.

Measurements
using
the
16048A/D/E,
16089A/B/C/D
OPEN/SHORT
Correction
Correct
for
stray
admittance and
residual
impedance of
the test
xture
.

Measurements
using
an Agilent
test
xture directly
connected to
the
UNKNOWN terminals
OPEN/SHORT/LO
AD
Correction
Correct
complicated
errors
that
cannot
be
removed
by
the
OPEN/SHORT
correction.

Measurements
using
a
test
xture
that
has
complicated
residuals
(such
as
custom
made
xtures)
 Measurement
using a
non-Agilent
extension
cable
Examples:
Simple
measurements
using
an
Agilent direct
connecting
test
xture
.
In
this
case
,
the
LOAD
correction
is
not
required.
The
OPEN/SHORT
correction
is
enough
to
correct
the
residual
errors
.
7-12 Impedance Measurement Basics
