Agilent Technologies 4263B User Manual

4263B

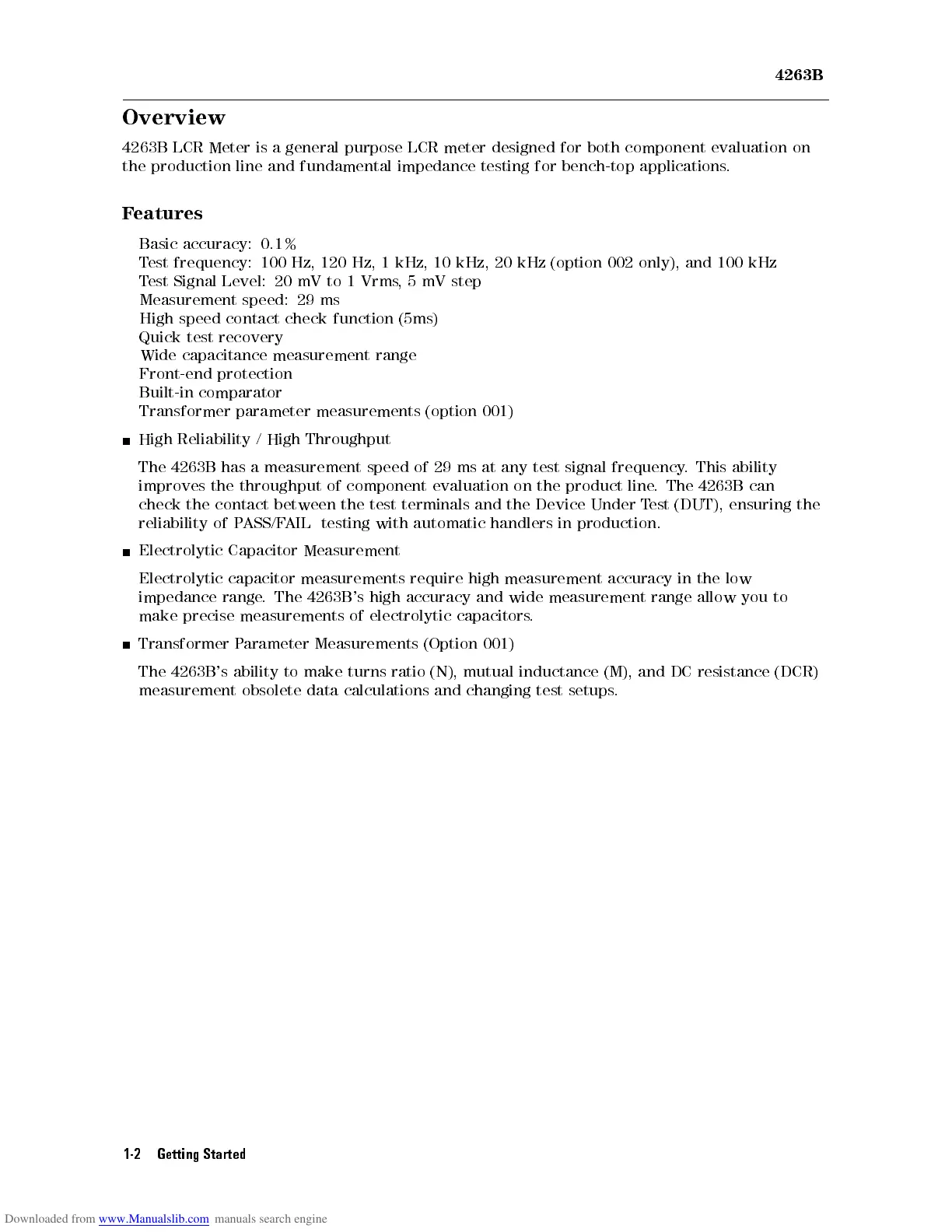

Overview
4263B
LCR
Meter
is
a general
purpose LCR
meter designed
for both
component evaluation
on
the
production
line
and
fundamental impedance
testing for
bench-top applications
.
F
eatures
Basic
accuracy:
0.1%
T
est
frequency:
100
Hz,
120
Hz,
1
kHz,
10
kHz,
20 kHz
(option 002
only), and
100 kHz
T
est
Signal
Level:
20
mV
to
1
Vrms
,
5
mV step
Measurement
speed:
29
ms
High
speed
contact
check
function
(5ms)
Quick
test
recovery
Wide
capacitance
measurement
range
Front-end
protection
Built-in
comparator
Transformer
parameter
measurements
(option
001)
High
Reliability
/
High
Throughput
The
4263B
has
a measurement
speed of
29 ms
at
any
test
signal
frequency
.
This
ability
improves
the
throughput
of component
evaluation on
the product
line.
The
4263B
can
check
the
contact
between the
test terminals
and the
Device Under
T
est
(DUT),
ensuring
the
reliability
of
P
ASS/F
AIL
testing with
automatic handlers
in
production.
Electrolytic
Capacitor
Measurement
Electrolytic
capacitor
measurements
require
high
measurement
accuracy
in
the
low
impedance
range
.
The
4263B
's
high
accuracy
and
wide
measurement
range
allow
you
to
make precise
measurements
of
electrolytic
capacitors
.
Transformer
P
arameter
Measurements
(Option
001)
The
4263B
's
ability
to
make
turns
ratio
(N),
mutual
inductance
(M),
and
DC
resistance
(DCR)
measurement
obsolete
data
calculations
and
changing
test
setups
.
1-2 Getting Started

Agilent Technologies 4263B Specifications

General

Brand	Agilent Technologies
Model	4263B
Category	Measuring Instruments
Language	English
