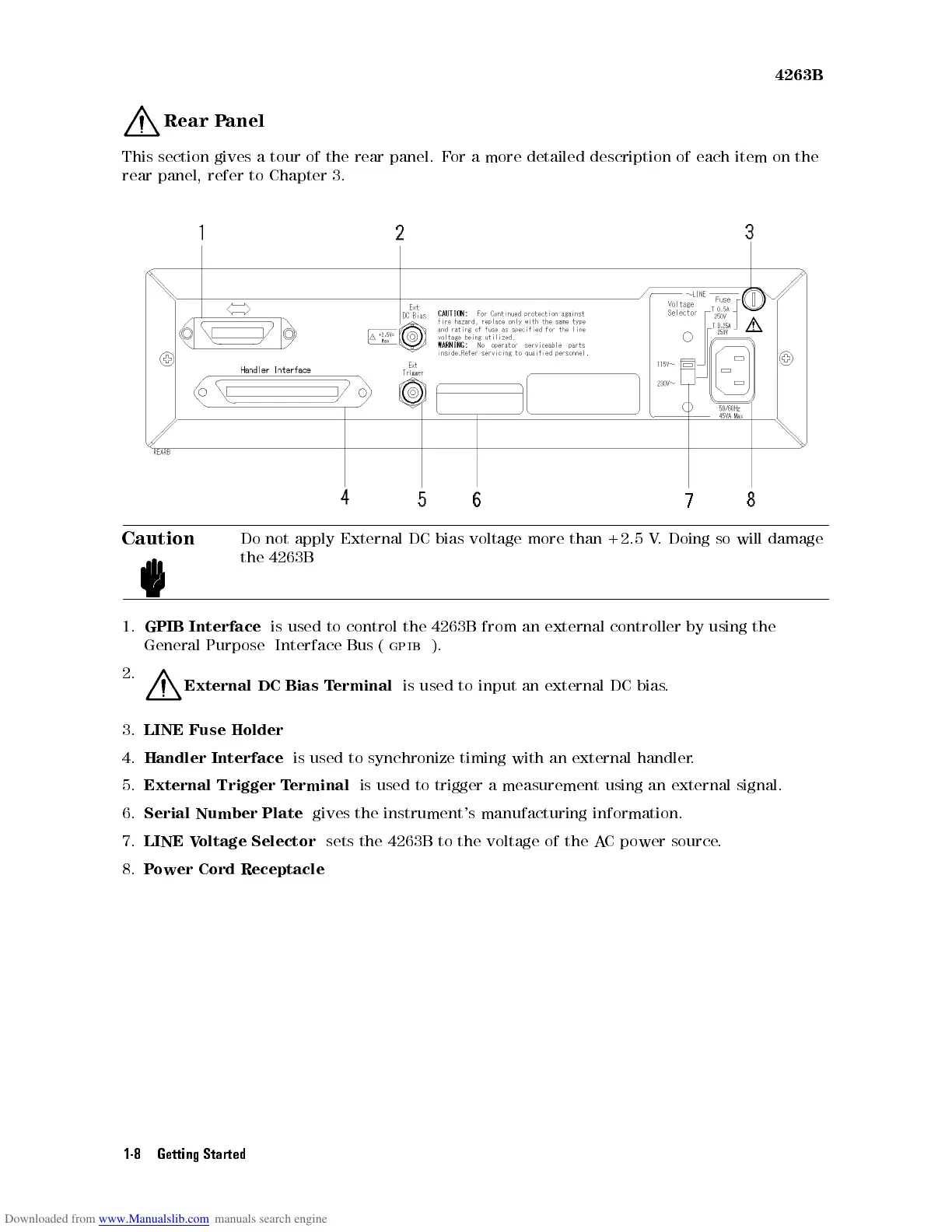

Agilent Technologies 4263B User Manual

4263B
Rear
P
anel
This
section
gives
a
tour of
the rear
panel. F
or a
more detailed
description of
each item
on
the
rear
panel,
refer
to
Chapter 3.
Caution
Do
not
apply
External
DC
bias
voltage
more
than
+2.5
V
.
Doing
so
will
damage
the
4263B
1. GPIB
Interface
is
used
to
control
the
4263B
from
an
external
controller
by
using
the
General Purpose
Interface
Bus
(
gpib
).
2.
External
DC
Bias
T
erminal
is
used
to
input
an
external
DC
bias
.
3.
LINE
Fuse
Holder
4.
Handler
Interface
is
used
to
synchronize
timing
with
an
external
handler
.
5.
External
Trigger
T
erminal
is
used
to
trigger a
measurement using
an external
signal.
6.
Serial
Number
Plate
gives
the
instrument's manufacturing
information.
7.
LINE
V
oltage
Selector
sets
the 4263B
to
the
voltage
of
the
A
C
power
source
.
8. Power Cord Receptacle
