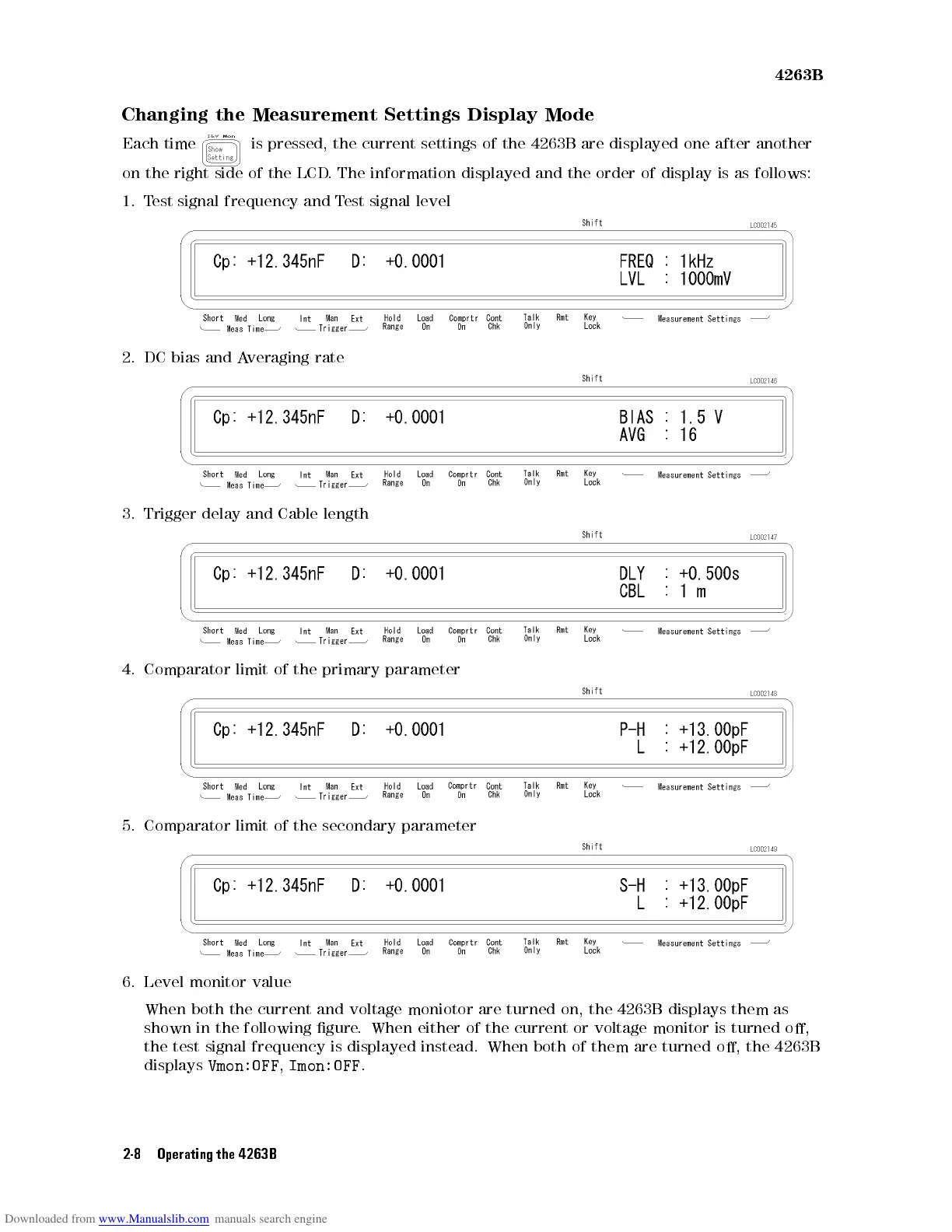

Agilent Technologies 4263B - Changing the Measurement Settings Display Mode

4263B
Changing
the
Measurement
Settings
Display
Mode
Each
time is
pressed,
the
current
settings
of
the
4263B
are
displayed
one after
another
on
the
right
side
of
the LCD
.The
information displayed
and the
order of
display is
as follows:
1.
T
est
signal
frequency
and T
est signal
level
2.
DC
bias
and
A
veraging
rate
3.
Trigger
delay
and
Cable
length
4.
Comparator
limit
of the
primary parameter
5.
Comparator limit
of the
secondary parameter
6. Level monitor value
When both the current and voltage moniotor are turned on, the 4263B displays them as
shown in the following gure. When either of the current or voltage monitor is turned o,
the test signal frequency is displayed instead. When both of them are turned o, the 4263B
displays Vmon:OFF , Imon:OFF .
