Agilent Technologies 4263B User Manual

4263B

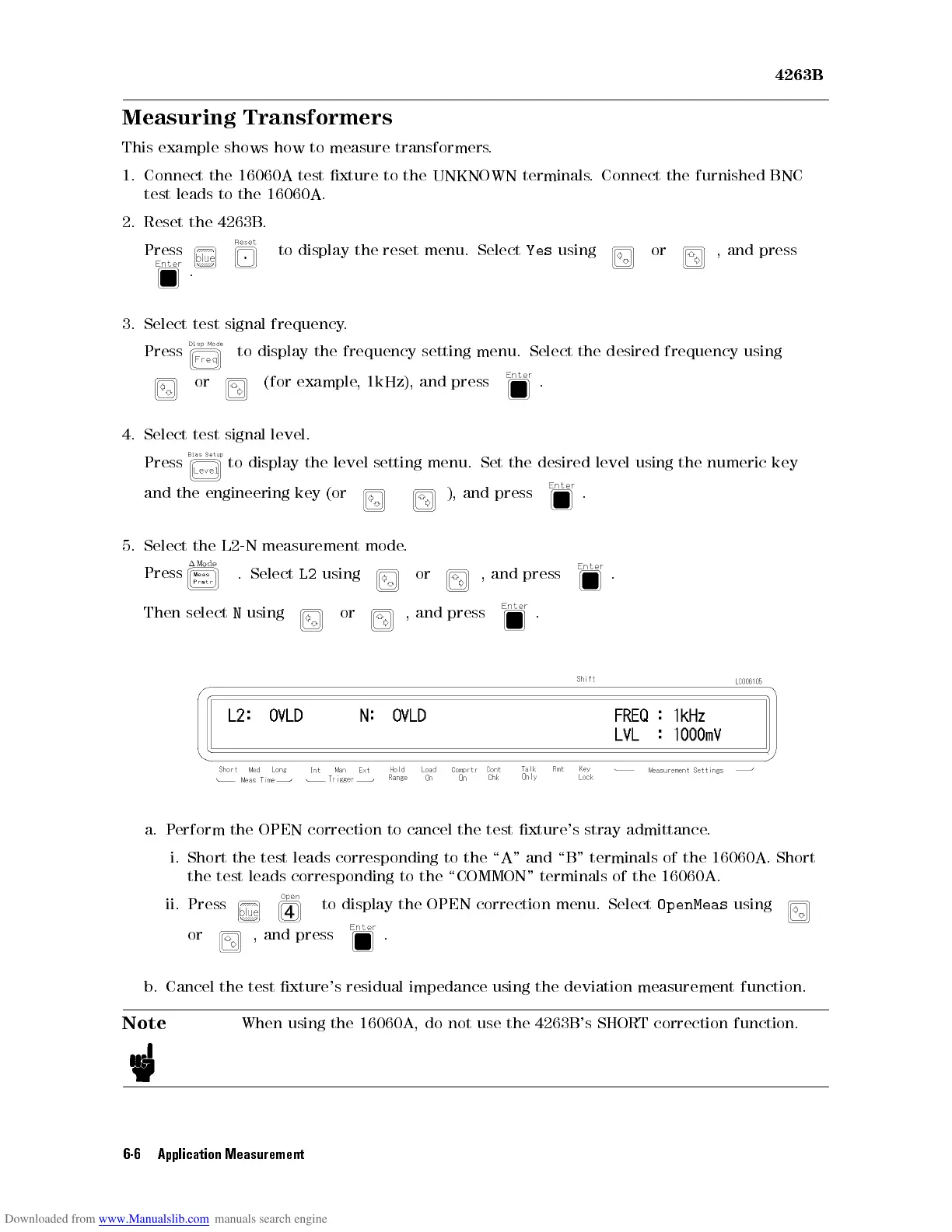

Measuring Transformers
This
example
shows
how
to measure
transformers.
1.
Connect
the
16060A
test xture
to the
UNKNOWN terminals
. Connect
the furnished
BNC
test
leads
to
the
16060A.
2.
Reset
the
4263B
.
Press
to
display
the
reset
menu. Select
Yes using
or ,
and
press
.
3. Select
test signal
frequency
.
Press
to
display
the
frequency
setting
menu.
Select
the
desired
frequency
using
or (for
example
,
1kHz),
and
press
.
4.
Select
test
signal
level.
Press
to
display
the
level
setting
menu.
Set
the desired
level using
the numeric
key
and
the
engineering
key
(or
),
and
press
.
5.
Select
the
L2-N
measurement
mode
.
Press
.
Select
L2
using
or ,
and
press
.
Then
select
N
using
or ,
and
press
.
a.
P
erform
the
OPEN
correction
to
cancel the
test
xture's
stray
admittance
.
i. Short the test leads corresponding to the \A" and \B" terminals of the 16060A.
Short
the test leads corresponding to the \COMMON" terminals of the 16060A.
ii.
Press
to
display the OPEN correction menu. Select
OpenMeas using
or , and press .
b. Cancel the test xture's residual
impedance using the deviation measurement function.
Note
When using the 16060A, do not use the 4263B's SHORT correction function.
6-6 Application Measurement
