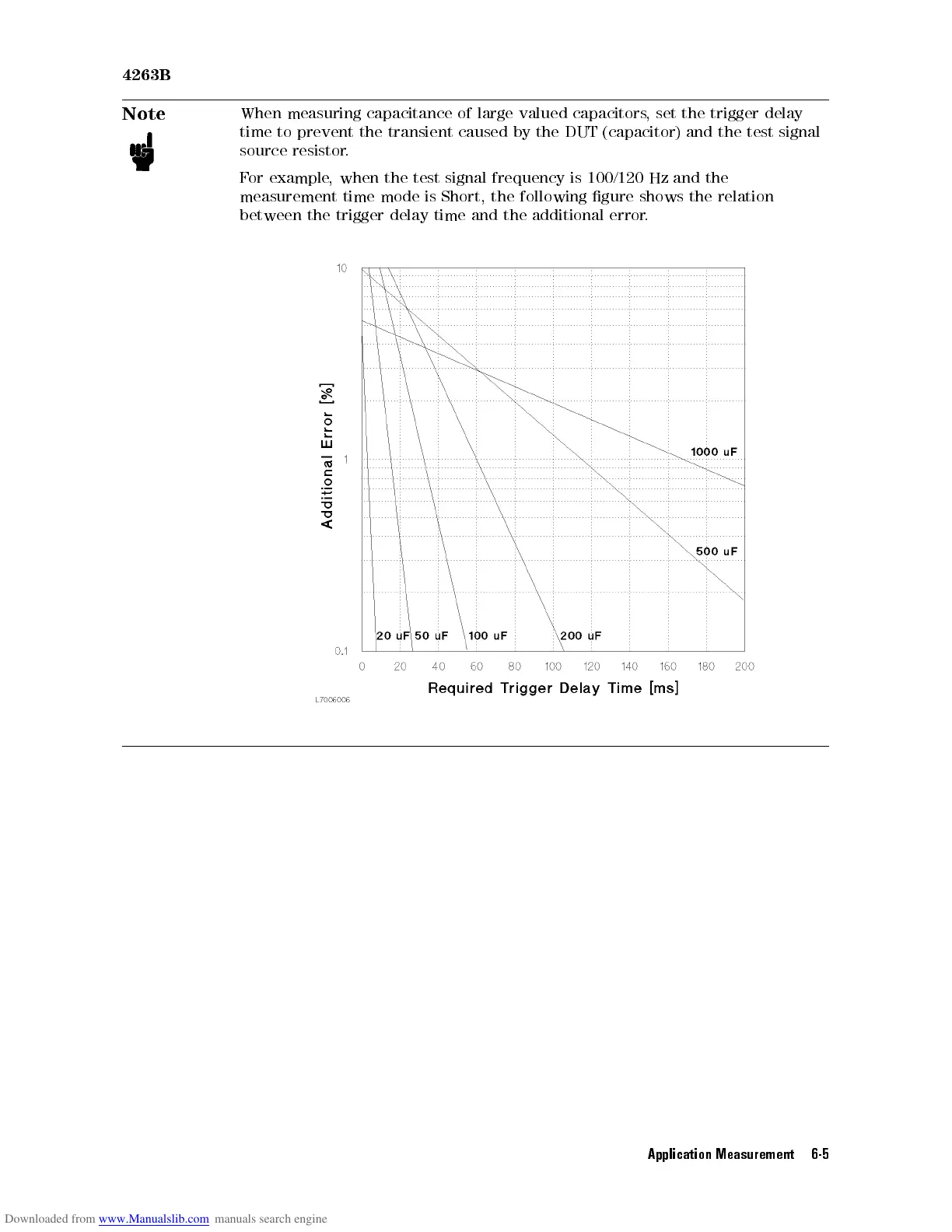

Note
When
measuring
capacitance
of
large
valued
capacitors
,
set
the
trigger
delay
time
to
prevent
the
transient
caused
by
the DUT
(capacitor) and
the test
signal
source
resistor
.
F
or
example
, when
the test
signal frequency
is 100/120
Hz and
the
measurement
time
mode
is Short,
the following
gure shows
the relation
between
the
trigger
delay
time
and
the
additional error
.
